REV. D
AD8072/AD8073
–7–
FREQUENCY – MHz
100
0.1
500
1
10
100
10
1
0.1
VS = 5V
RF = 1k
AV = 2

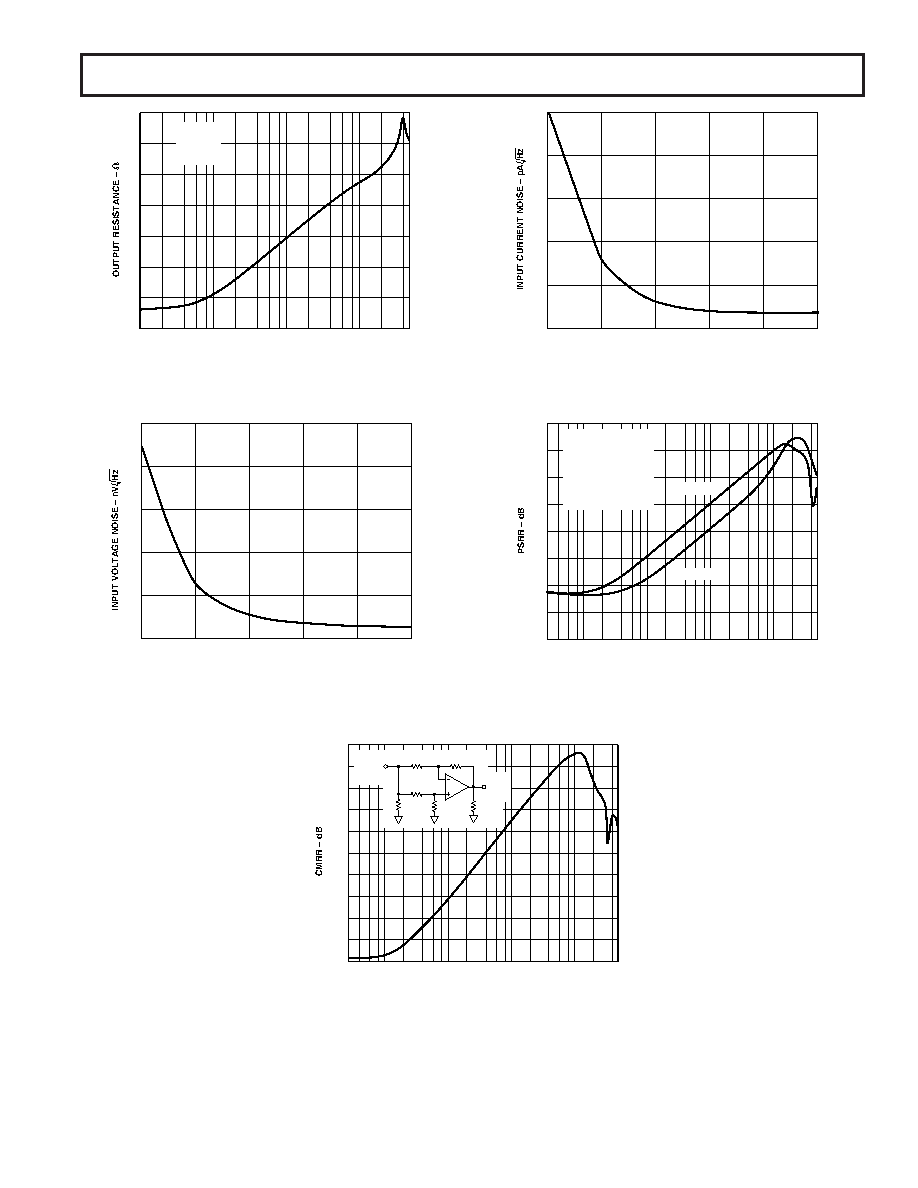

TPC 13. Output Resistance vs. Frequency; VS =
±5 V
FREQUENCY – Hz
50
40
0
1
100k
10
100
1k
10k
30
20
10
TPC 14. Noise vs. Frequency; VS =
±5 V
–50
FREQUENCY – MHz
–5
–10
–45
0.1
500
1
10
100
–15
–20
–40
–25
–30
–35
0.02
–55
VIN
2V p-p
1k
1k
60.4
154
154
150
VOUT
TPC 17. CMRR vs. Frequency; VS =
±5 V
FREQUENCY – Hz
100
80
0
1
100k
10
100
1k
10k
60
40
20
TPC 15. Noise vs. Frequency; VS =
±5 V
FREQUENCY – MHz
10
0
–70
0.1
500
1
10
100
–10
–20
–60
–30
–40
–50
0.02
VS = 5V
RF = 1k
RL = 150
AV = 2
100mV p-p ON TOP
OF VS
–PSRR
PSRR
TPC 16. PSRR vs. Frequency
