LAYOUT RECOMMENDATIONS

The layout is very important when designing high

frequency switching converters. Layout will affect noise

pickup and can cause a good design to perform with less

than expected results.

Make the connections for the power components in the

top layer with wide, copper filled areas or polygons. In

general, it is desirable to make proper use of power planes

and polygons for power distribution and heat dissipation.

The inductor, output capacitors and the IR3898 should be

as close to each other as possible. This helps to reduce the

EMI radiated by the power traces due to the high switching

currents through them. Place the input capacitor directly

at the PVin pin of IR3898.

The feedback part of the system should be kept away from

the inductor and other noise sources.

The critical bypass components such as capacitors for Vin,

Vcc and Vref should be close to their respective pins. It is

important to place the feedback components including

feedback resistors and compensation components close to

Fb and Comp pins.

In a multilayer PCB use one layer as a power ground plane

and have a control circuit ground (analog ground), to which

all signals are referenced. The goal is to localize the high

current path to a separate loop that does not interfere

with the more sensitive analog control function. These two

grounds must be connected together on the PC board

layout at a single point. It is recommended to place all

the compensation parts over the analog ground plane in

top layer.

The Power QFN is a thermally enhanced package. Based on

thermal performance it is recommended to use at least a

4-layers PCB. To effectively remove heat from the device

the exposed pad should be connected to the ground plane

using vias. Figures 46a-d illustrates the implementation of

the layout guidelines outlined above, on the IRDC3898 4-

layer demo board.

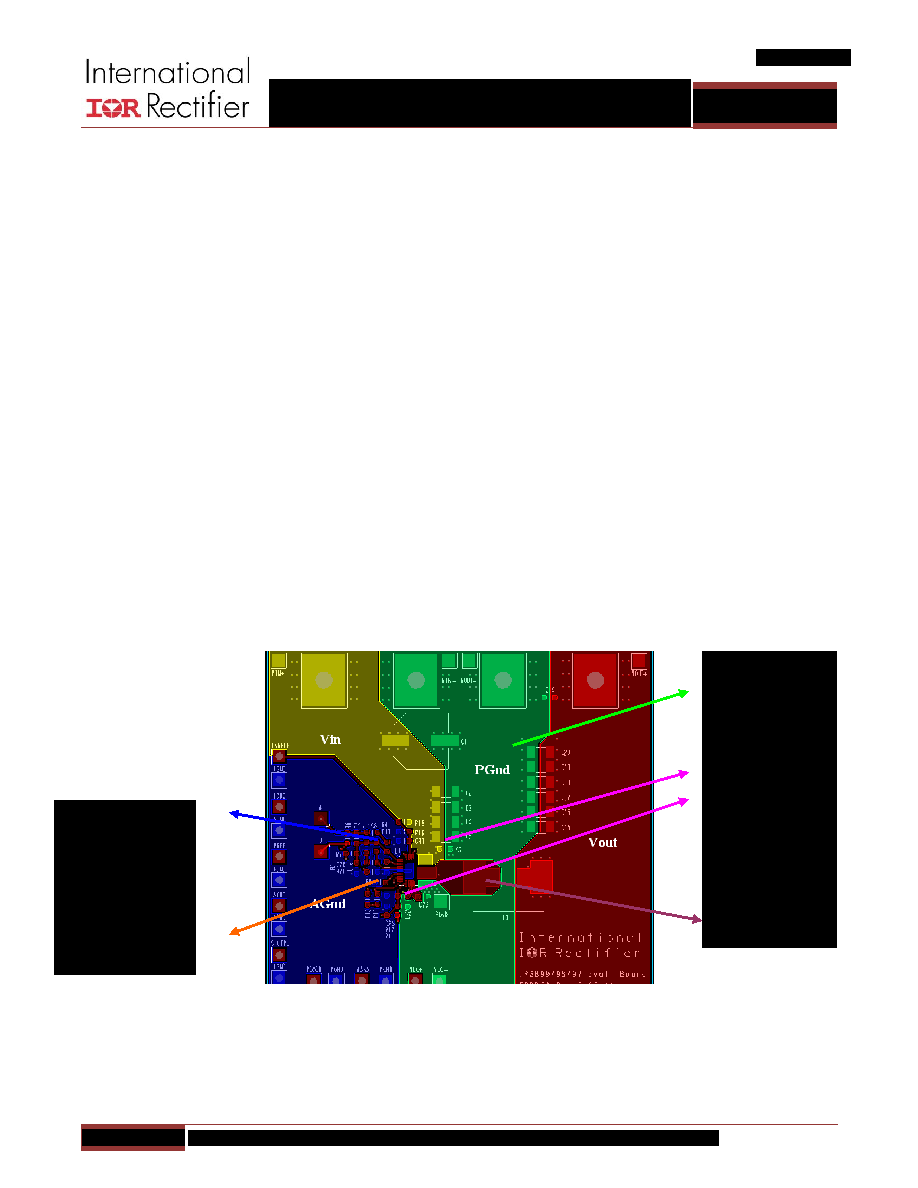

Figure 49a: IRDC3898 Demo board Layout Considerations – Top Layer

Compensation parts

should be placed

as close as possible

to the Comp pin

Resistor Rt and Vref

decoupling cap should

be placed as close as

possible to their pins

Enough copper &

minimum ground

length

path between Input

and Output

All bypass caps

should be placed

as close as possible

to their connecting

pins

SW node copper is

kept only at the top

layer to minimize

the switching noise
