TC7109/A

DS21456D-page 26

 2002-2012 Microchip Technology Inc.

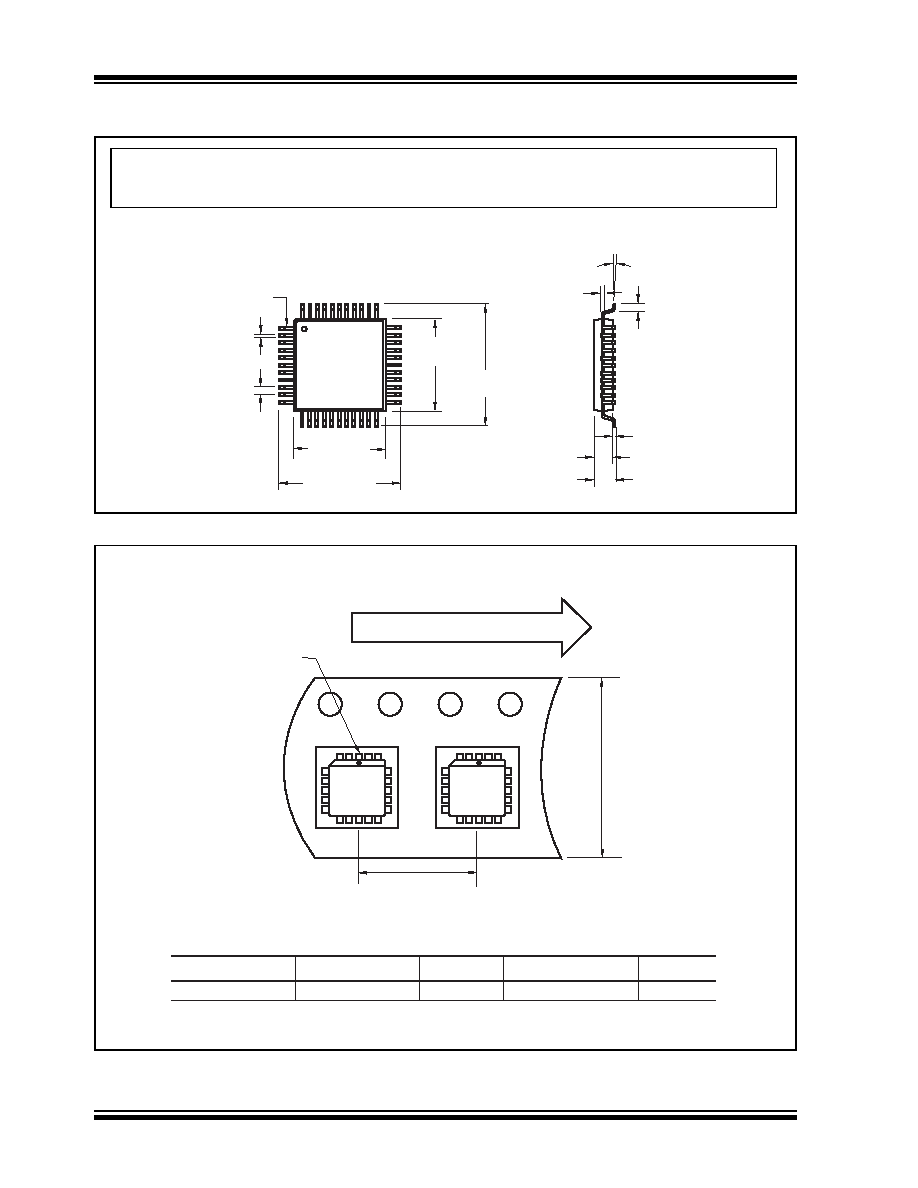

6.3

Package Dimensions (Continued)

Dimensions: inches (mm)

.557 (14.15)

.537 (13.65)

.398 (10.10)

.390 (9.90)

.031 (0.80) TYP.

.018 (0.45)

.012 (0.30)

.398 (10.10)

.390 (9.90)

.010 (0.25) Typ.

.096 (2.45) Max.

.557 (14.15)

.537 (13.65)

.083 (2.10)

.075 (1.90)

.041 (1.03)

.026 (0.65)

7° Max.

.009 (0.23)

.005 (0.13)

44-Pin PQFP

Pin 1

Note:

For the most current package drawings, please see the Microchip Packaging Specification located

at http://www.microchip.com/packaging

Dimensions: inches (mm)

Pin 1

Component Taping Orientation for 44-Pin PLCC Devices

User Direction of Feed

Standard Reel Component Orientation

for 713 Suffix Device

Note: Drawing does not represent total number of pins.

Package

Carrier Width (W)

Pitch (P)

Part Per Full Reel

Reel Size

44-Pin PLCC

32 mm

24 mm

500

13 in

Carrier Tape, Number of Components Per Reel and Reel Size
