ADP196ACBZ-R7 Folha de dados(PDF) 8 Page - Analog Devices

Nome de Peças ADP196ACBZ-R7
Descrição Electrónicos  5 V, 3 A, Logic Controlled High-Side Power Switch
PDF  12 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  AD [Analog Devices]
Página de início  http://www.analog.com
Logo AD - Analog Devices

ADP196ACBZ-R7 Folha de dados(HTML) 8 Page - Analog Devices

Back Button ADP196ACBZ-R7 Datasheet HTML 4Page - Analog Devices ADP196ACBZ-R7 Datasheet HTML 5Page - Analog Devices ADP196ACBZ-R7 Datasheet HTML 6Page - Analog Devices ADP196ACBZ-R7 Datasheet HTML 7Page - Analog Devices ADP196ACBZ-R7 Datasheet HTML 8Page - Analog Devices ADP196ACBZ-R7 Datasheet HTML 9Page - Analog Devices ADP196ACBZ-R7 Datasheet HTML 10Page - Analog Devices ADP196ACBZ-R7 Datasheet HTML 11Page - Analog Devices ADP196ACBZ-R7 Datasheet HTML 12Page - Analog Devices
Zoom Inzoom in Zoom Outzoom out
 8 / 12 page
background image
ADP196
Data Sheet
Rev. 0 | Page 8 of 12
CH1 20mA
Ω
CH2 1V
M1ms
A CH2
1.18V
1
T 10.6%
BW
CH3 1V BW
BW
T
VOUT
INPUT CURRENT
ENABLE
2
3

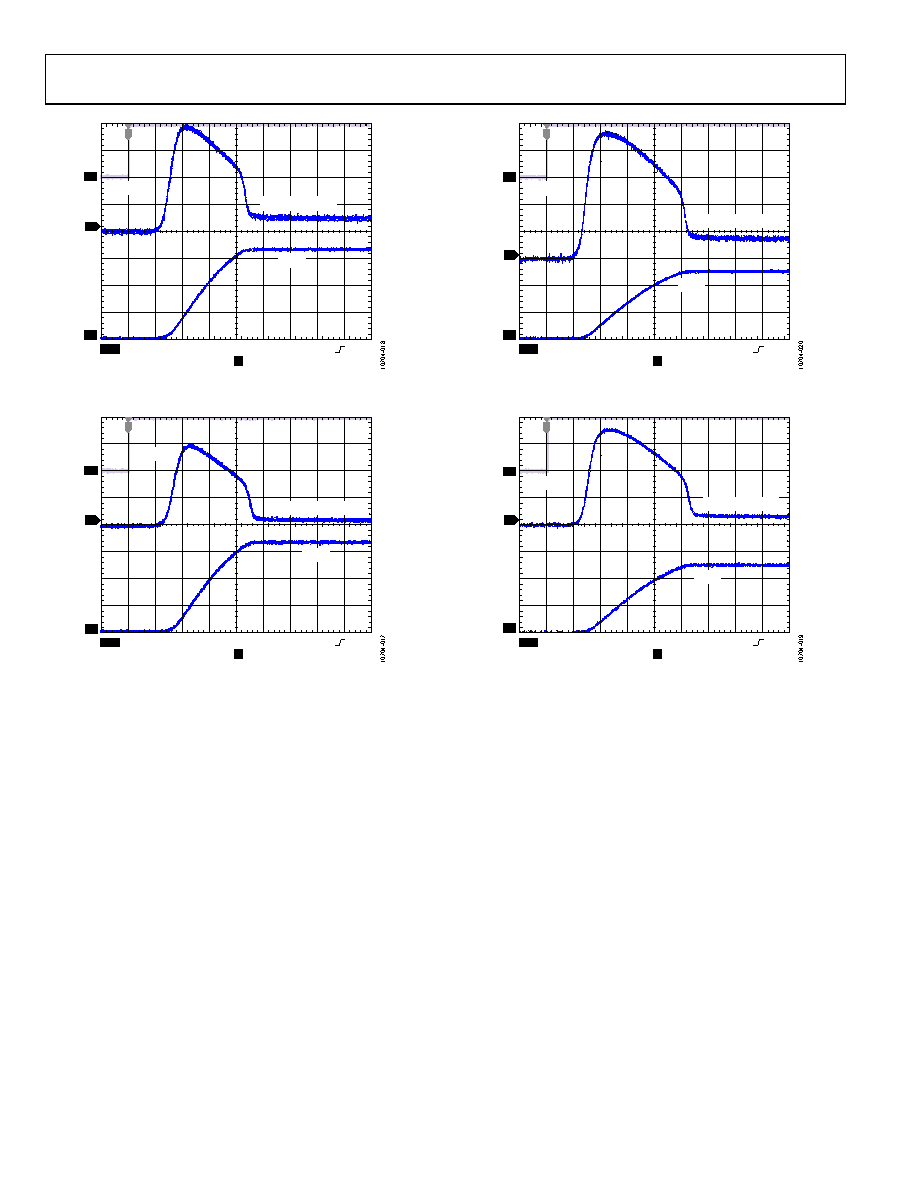

Figure 17. Typical Turn-On Time and Inrush Current, VIN = 3.3 V,
COUT = 47 μF, 330 Ω Load
CH1 50mA
Ω
CH2 1V
M1ms
A CH2
1.18V
1
T 10.6%
BW
CH3 1V BW
BW
T
VOUT
INPUT CURRENT
ENABLE
2
3
Figure 18. Typical Turn-On Time and Inrush Current, VIN = 3.3 V,
COUT = 100 μF, 330 Ω Load
CH1 20mA
Ω
CH2 1V
M1ms
A CH2
1.18V
1
T 10.6%
BW
CH3 2V BW
BW
T
VOUT
INPUT CURRENT
ENABLE
2
3
Figure 19. Typical Turn-On Time and Inrush Current, VIN = 5 V,
COUT = 47 μF, 330 Ω Load
CH1 50mA
Ω
CH2 1V
M1ms
A CH2
1.18V
1
T 10.6%
BW
CH3 2V BW
BW
T
VOUT
INPUT CURRENT
ENABLE
2
3
Figure 20. Typical Turn-On Time and Inrush Current, VIN = 5 V,
COUT = 100 μF, 330 Ω Load
