AD8274
Rev. C | Page 9 of 16
0
10
20
30
40
50
60
70
80
90
100
0
20
40
60
80
100
120
140
160
180
200
CAPACITIVE LOAD (pF)
2.5V
18V
5V
15V

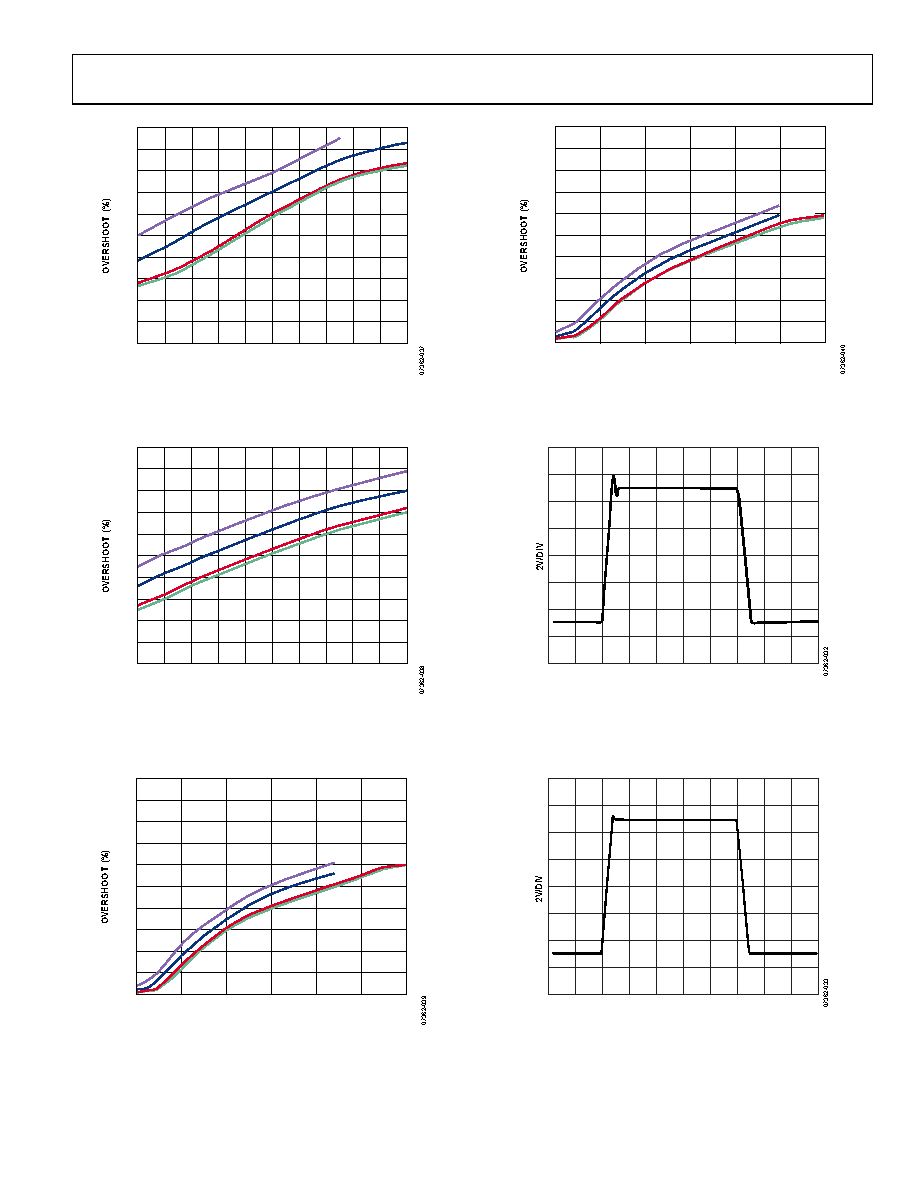

Figure 23. Small-Signal Overshoot vs. Capacitive Load,
Gain = ½, No Resistive Load
18V
15V
5V
2.5V
0
10
20
30
40
50
60
70
80
90
100
0
20
40
60
80
100
120
140
160
180
200
CAPACITIVE LOAD (pF)
Figure 24. Small-Signal Overshoot vs. Capacitive Load,
Gain = ½, 600 Ω in Parallel with Capacitive Load
0
200
400
600
800
1000
1200
18V
15V
5V
2.5V
0
10
20
30
40
50
60
70
80
90
100
CAPACITIVE LOAD (pF)
Figure 25. Small-Signal Overshoot vs. Capacitive Load,
Gain = 2, No Resistive Load
0
200
400
600
800
1000
1200
18V
2.5V
0
10
20
30
40
50
60
70
80
90
100
CAPACITIVE LOAD (pF)
15V
5V
Figure 26. Small-Signal Overshoot vs. Capacitive Load,
Gain = 2, 600 Ω in Parallel with Capacitive Load
1µs/DIV
Figure 27. Large-Signal Pulse Response,
Gain = ½
1µs/DIV
Figure 28. Large-Signal Pulse Response,
Gain = 2
