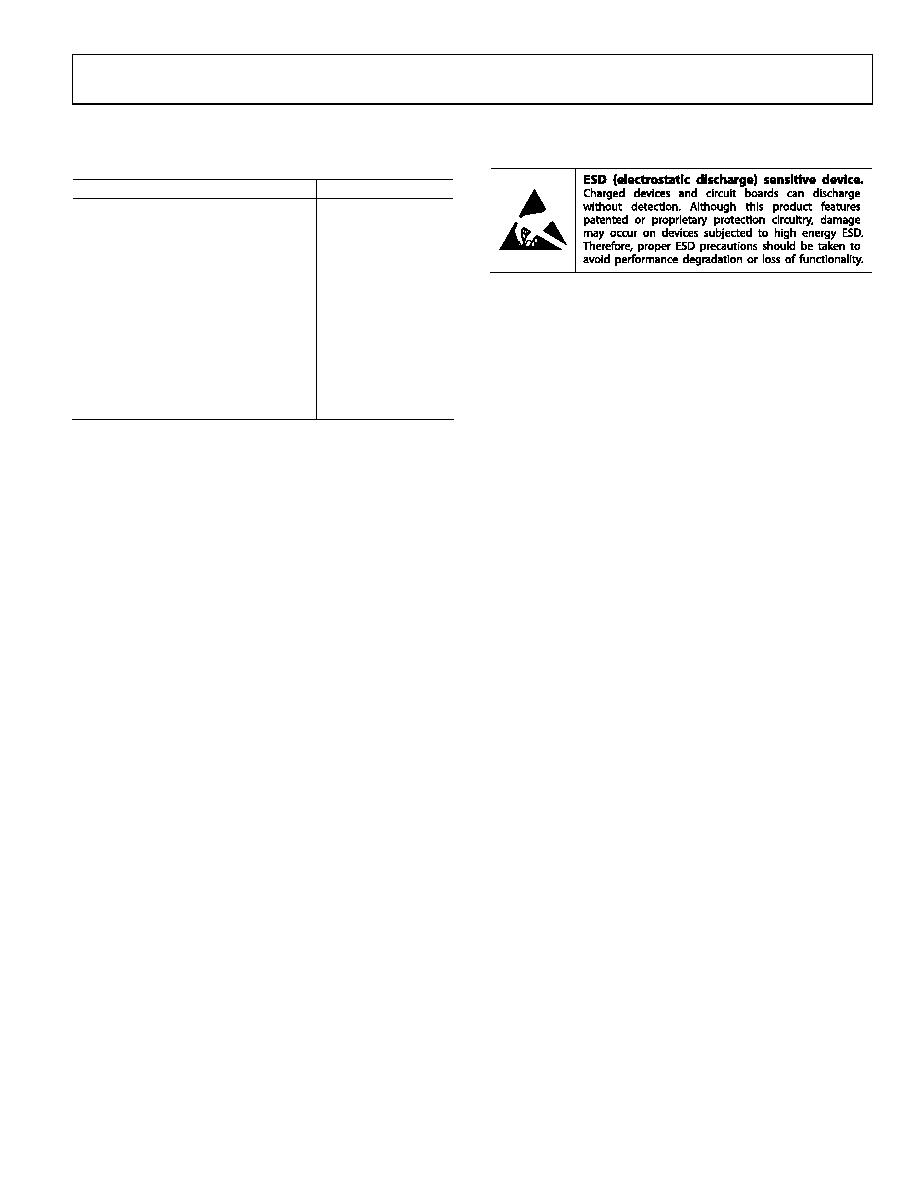

Data Sheet

ADL5243

Rev. A | Page 9 of 32

ABSOLUTE MAXIMUM RATINGS

ESD CAUTION

Table 2.

Parameter

Rating

Supply Voltage (VDD, VCC, VCC2)

6.5 V

Input Power

AMP1IN

16 dBm

AMP2IN (50

Ω Impedance)

20 dBm

DSAIN

30 dBm

Internal Power Dissipation

1.0 W

θJA (Exposed Paddle Soldered Down)

34.8°C/W

θJC (Exposed Paddle)

6.2°C/W

Maximum Junction Temperature

150°C

Lead Temperature (Soldering, 60 sec)

240°C

Operating Temperature Range

−40°C to +85°C

Storage Temperature Range

−65°C to +150°C

Stresses above those listed under Absolute Maximum Ratings

may cause permanent damage to the device. This is a stress

rating only; functional operation of the device at these or any

other conditions above those indicated in the operational

section of this specification is not implied. Exposure to absolute

maximum rating conditions for extended periods may affect

device reliability.
