BAV19WS...BAV21WS

Surface Mount Small Signal Diodes

Kleinsignal-Dioden für die Oberflächenmontage

Version 2011-09-27

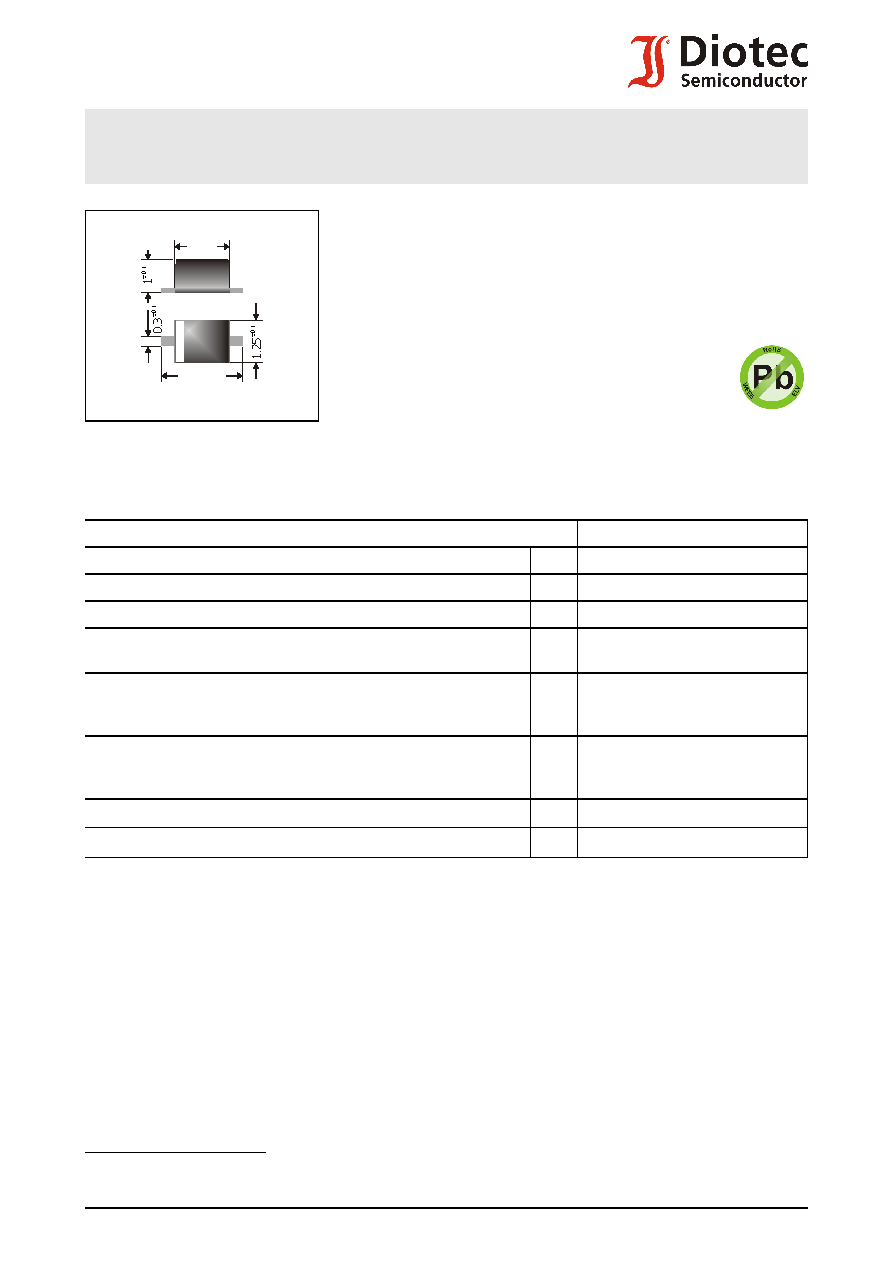

Dimensions - Maße [mm]

Power dissipation – Verlustleistung

200 mW

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

120...250 V

Plastic case – Kunststoffgehäuse

~ SOD-323

Weight approx. – Gewicht ca.

0.005 g

Plastic material has UL classification 94V-0

Gehäusematerial UL94V-0 klassifiziert

Standard packaging taped and reeled

Standard Lieferform gegurtet auf Rolle

Maximum ratings (TA = 25° C)

Grenzwerte (TA = 25° C)

BAV19WS, BAV20WS, BAV21WS

Power dissipation − Verlustleistung

Ptot

200 mW 1)

Max. average forward current – Dauergrenzstrom (dc)

IFAV

200 mA 1)

Repetitive peak forward current – Periodischer Spitzenstrom

IFRM

625 mA 1)

Non repetitive peak forward surge current

Stoßstrom-Grenzwert

tp ≤ 1 s

tp ≤ 1 µs

IFSM

0.5 A

2.5 A

Repetitive peak reverse voltage

Periodische Spitzensperrspannung

BAV19WS

BAV20WS

BAV21WS

VRRM

120 V

200 V

250 V

Continuous reverse voltage

Sperrspannung

BAV19WS

BAV20WS

BAV21WS

VR

100 V

150 V

200 V

Junction temperature – Sperrschichttemperatur

Tj

+150° C

Storage temperature – Lagerungstemperatur

TS

- 55…+150° C

1

Mounted on P.C. board with 3 mm2 copper pad at each terminal

Montage auf Leiterplatte mit 3 mm2 Kupferbelag (Lötpad) an jedem Anschluss

http://www.diotec.com

1

2.5±0.2

Type

Code

1.7±0.1
