SSM2377

Rev. 0 | Page 14 of 16

When the user wants to send an input signal, an output pulse

(OUT+ and OUT−) is generated to follow the input voltage. The

signal level. Figure 36 depicts three-level, Σ-Δ output modulation

with and without input stimulus.

OUTPUT > 0V

+5V

0V

OUT+

+5V

0V

OUT–

+5V

0V

OUTPUT < 0V

+5V

0V

OUT+

+5V

0V

OUT–

0V

–5V

OUTPUT = 0V

OUT+

+5V

0V

+5V

0V

OUT–

+5V

–5V

0V

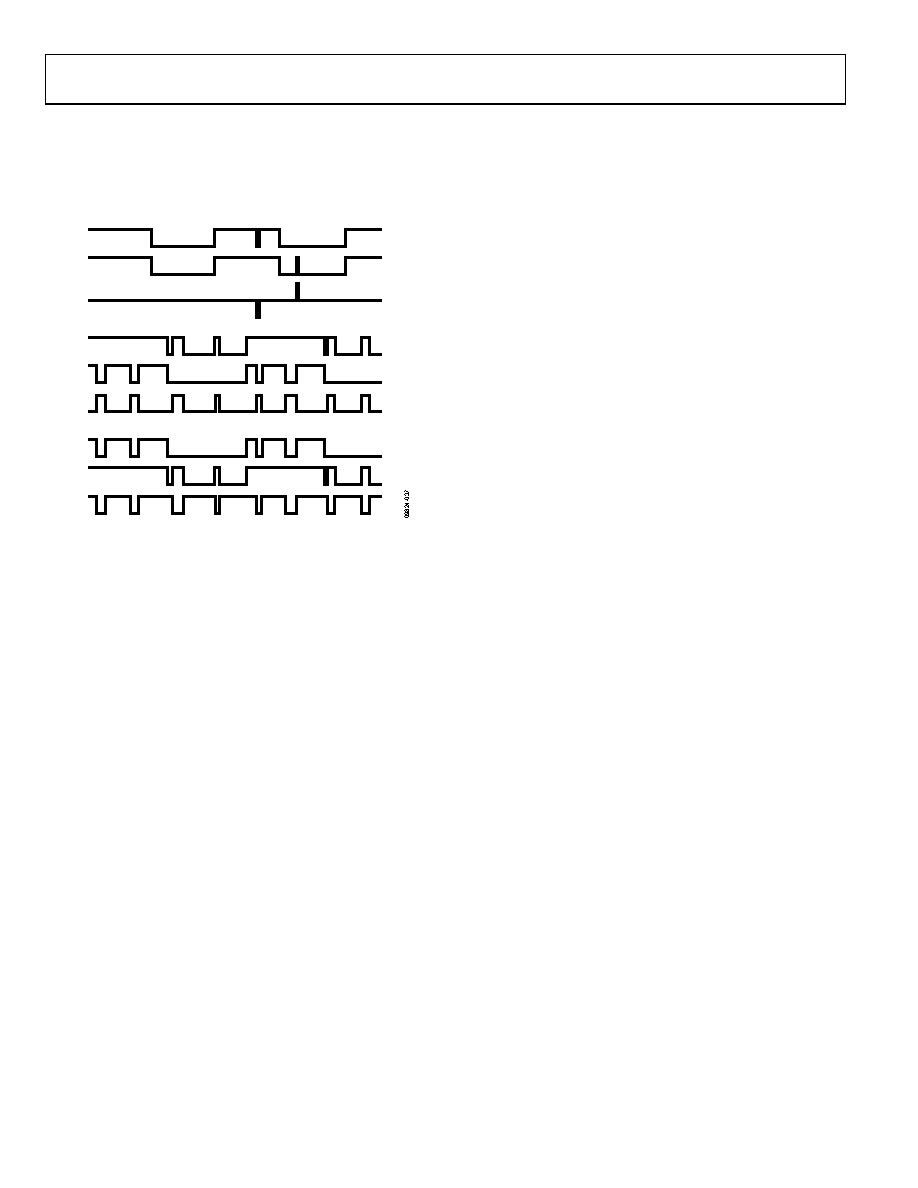

Figure 36. Three-Level, Σ-Δ Output Modulation With and Without Input Stimulus

LAYOUT

As output power increases, care must be taken to lay out PCB

traces and wires properly among the amplifier, load, and power

supply. A good practice is to use short, wide PCB tracks to decrease

voltage drops and minimize inductance. Ensure that track widths

are at least 200 mil for every inch of track length for lowest DCR,

and use 1 oz or 2 oz copper PCB traces to further reduce IR drops

and inductance. A poor layout increases voltage drops, conse-

quently affecting efficiency. Use large traces for the power supply

inputs and amplifier outputs to minimize losses due to parasitic

trace resistance.

Proper grounding guidelines help to improve audio performance,

minimize crosstalk between channels, and prevent switching

noise from coupling into the audio signal. To maintain high

output swing and high peak output power, the PCB traces that

connect the output pins to the load, as well as the PCB traces to

the supply pins, should be as wide as possible to maintain the

minimum trace resistances. It is also recommended that a large

ground plane be used for minimum impedances.

In addition, good PCB layout isolates critical analog paths from

sources of high interference. High frequency circuits (analog

and digital) should be separated from low frequency circuits.

Properly designed multilayer PCBs can reduce EMI emissions

and increase immunity to the RF field by a factor of 10 or more,

compared with double-sided boards. A multilayer board allows

a complete layer to be used for the ground plane, whereas the

ground plane side of a double-sided board is often disrupted by

signal crossover.

If the system has separate analog and digital ground and power

planes, the analog ground plane should be directly beneath the

analog power plane, and, similarly, the digital ground plane should

be directly beneath the digital power plane. There should be no

overlap between the analog and digital ground planes or between

the analog and digital power planes.

INPUT CAPACITOR SELECTION

The SSM2377 does not require input coupling capacitors if the

are required if the input signal is not biased within this recom-

mended input dc common-mode voltage range, if high-pass

filtering is needed, or if a single-ended source is used. If high-

and the input impedance of the SSM2377 form a high-pass filter

with a corner frequency determined by the following equation:

The input capacitor value and the dielectric material can

significantly affect the performance of the circuit. Not using

input capacitors can generate a large dc output offset voltage

and degrade the dc PSRR performance.

POWER SUPPLY DECOUPLING

To ensure high efficiency, low total harmonic distortion (THD),

and high PSRR, proper power supply decoupling is necessary.

Noise transients on the power supply lines are short-duration

voltage spikes. These spikes can contain frequency components

that extend into the hundreds of megahertz. The power supply

input must be decoupled with a good quality, low ESL, low ESR

capacitor, with a minimum value of 4.7 μF. This capacitor bypasses

low frequency noises to the ground plane. For high frequency

transient noises, use a 0.1 μF capacitor as close as possible to the

VDD pins of the device. Placing the decoupling capacitors as close

as possible to the SSM2377 helps to maintain efficient performance.
