SSM2377
Rev. 0 | Page 7 of 16

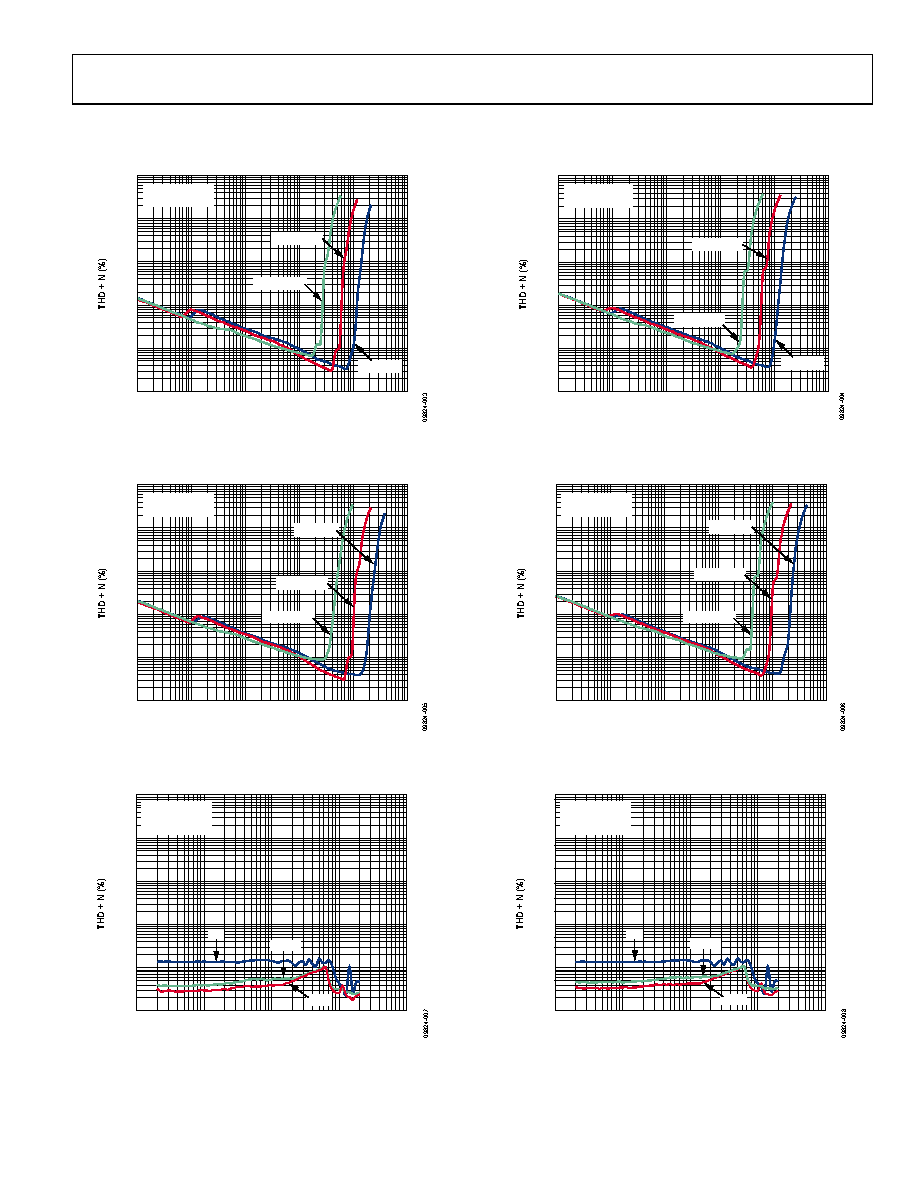

TYPICAL PERFORMANCE CHARACTERISTICS
100
10
1
0.1
0.01
0.001
0.0001
10
OUTPUT POWER (W)
0.001
0.01
0.1
1
RL = 8Ω + 33µH
GAIN = 6dB
VDD = 2.5V
VDD = 5V
VDD = 3.6V
100
10
1
0.1
0.01
0.001
0.0001
10
OUTPUT POWER (W)
0.001
0.01
0.1
1
RL = 8Ω + 33µH
GAIN = 12dB
VDD = 2.5V
VDD = 3.6V
VDD = 5V
Figure 3. THD + N vs. Output Power into 8 Ω, Gain = 6 dB
Figure 6. THD + N vs. Output Power into 8 Ω, Gain = 12 dB
100
10
1
0.1
0.01
0.001
0.0001
10
OUTPUT POWER (W)
0.001
0.01
0.1
1
RL = 4Ω + 15µH
GAIN = 6dB
VDD = 2.5V
VDD = 3.6V
VDD = 5V
100
10
1
0.1
0.01
0.001
0.0001
10
OUTPUT POWER (W)
0.001
0.01
0.1
1
RL = 4Ω + 15µH
GAIN = 12dB
VDD = 2.5V
VDD = 5V
VDD = 3.6V
Figure 4. THD + N vs. Output Power into 4 Ω, Gain = 6 dB
Figure 7. THD + N vs. Output Power into 4 Ω, Gain = 12 dB
100
10
1
0.1
0.01
0.001
10
100k
FREQUENCY (Hz)
100
1k
10k
VDD = 5V
GAIN = 12dB
RL = 8Ω + 33µH
1W
0.5W
0.25W
100
10
1
0.1
0.01
0.001
10
100k
FREQUENCY (Hz)
100
1k
10k
VDD = 5V
GAIN = 6dB
RL = 8Ω + 33µH
1W
0.5W
0.25W
Figure 5. THD + N vs. Frequency, VDD = 5 V, RL = 8 Ω, Gain = 6 dB
Figure 8. THD + N vs. Frequency, VDD = 5 V, RL = 8 Ω, Gain = 12 dB
