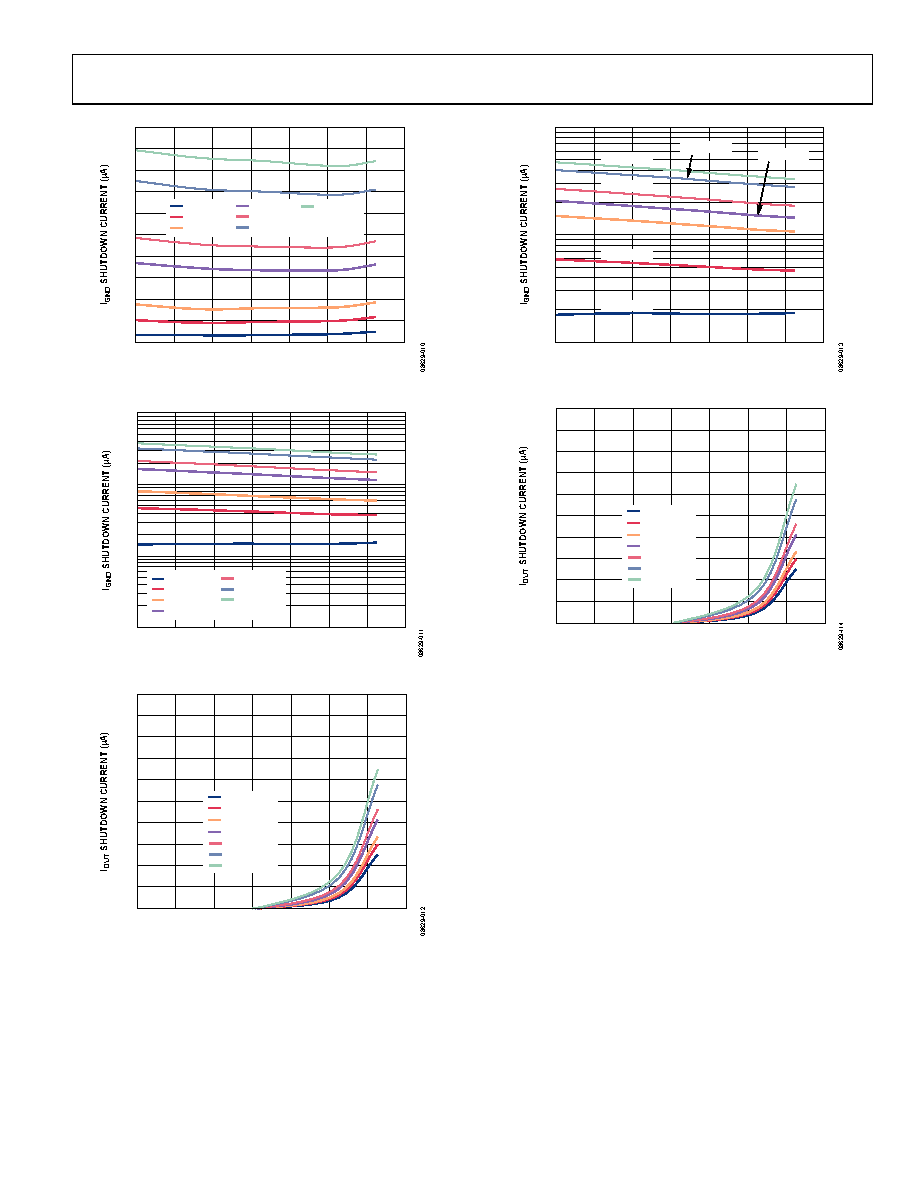

ADP194
Rev. 0 | Page 7 of 12
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
–40
–20
0
20
40
60
80
100
TEMPERATURE (°C)
VIN = 1.1V
VIN = 1.5V
VIN = 1.8V
VIN = 2.4V
VIN = 2.7V
VIN = 3.3V
VIN = 3.6V
Figure 10. Shutdown Current vs. Temperature, VOUT Open
0.01
0.1
1
10
–40
–20
0
20
40
60
80
100
TEMPERATURE (°C)
VIN = 1.1V
VIN = 1.5V
VIN = 1.8V
VIN = 2.4V
VIN = 2.7V
VIN = 3.3V
VIN = 3.6V
Figure 11. Shutdown Current vs. Temperature, VOUT = 0 V
0
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0.50
–40
–20
0
20
40
60
80
100
TEMPERATURE (°C)
VIN = 1.1V
VIN = 1.5V
VIN = 1.8V
VIN = 2.4V
VIN = 2.7V
VIN = 3.3V
VIN = 3.6V
Figure 12. IOUT Shutdown Current vs. Temperature, VOUT = 0 V
0.1
1
10
VIN = 1.1V
VIN = 1.5V
VIN = 1.8V
VIN = 2.4V
VIN = 2.7V
VIN = 3.3V
VIN = 3.6V
–40
–20
0
20
40
60
80
100
TEMPERATURE (°C)
Figure 13. Reverse Shutdown Current vs. Temperature, VOUT = 0 V
0
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0.50
–40
–20
0
20
40
60
80
100
TEMPERATURE (°C)
VIN = 1.1V
VIN = 1.5V
VIN = 1.8V
VIN = 2.4V
VIN = 2.7V
VIN = 3.3V
VIN = 3.6V
Figure 14. IOUT Reverse Current vs. Temperature, VOUT = 0 V
