ADP194
Rev. 0 | Page 5 of 12

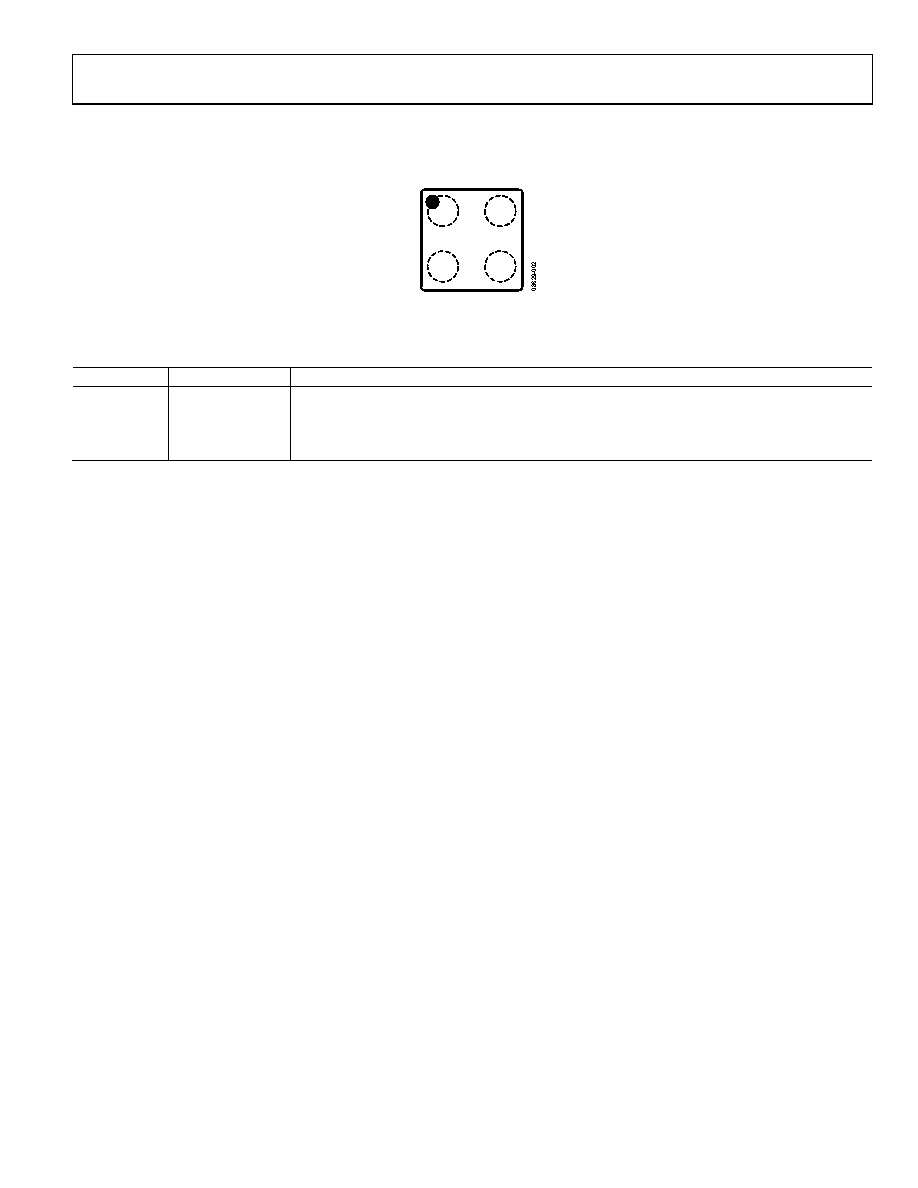

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
VIN
VOUT
12
EN
A
B
GND
TOP VIEW
(Not to Scale)
Figure 3. Pin Configuration
Table 4. Pin Function Descriptions
Pin No.
Mnemonic
Description
A1
VIN
Input Voltage.
B1
EN
Enable Input. Drive EN high to turn on the switch; drive EN low to turn off the switch.
A2
VOUT
Output Voltage.
B2
GND
Ground.
