Precision, High-Bandwidth Op Amp
4 ______________________________________________________________________________________

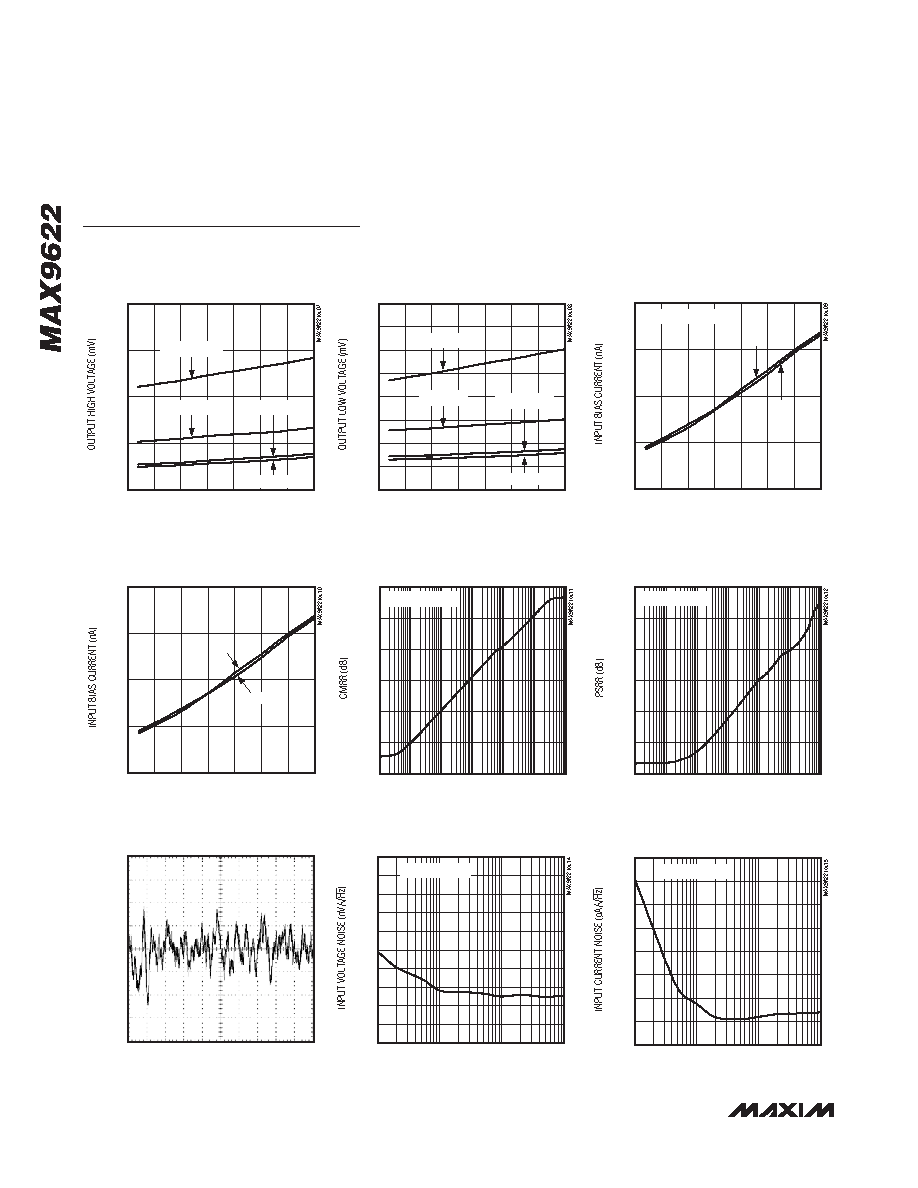

Typical Operating Characteristics (continued)
(VCC = 5V, RL = 10kI to VCC/2, TA = +25NC, unless otherwise noted.)
OUTPUT HIGH VOLTAGE vs. TEMPERATURE
SOURCING CURRENT (VCC - VOUT)
TEMPERATURE (°C)
100
75
50
25
0
-25
50
100
150
200
0
-50
125
ISOURCE = 5mA
ISOURCE = 1mA
ISOURCE = 0.1mA
ISOURCE = 0.01mA
OUTPUT LOW VOLTAGE vs. TEMPERATURE
SINKING CURRENT
TEMPERATURE (°C)
100
75
-25
0
25
50
20
40
60
80
100
120
140
160
0
-50
125
ISINK = 5mA
ISINK = 1mA
ISINK = 0.1mA
ISINK = 0.01mA
INPUT BIAS CURRENT vs. TEMPERATURE
TEMPERATURE (°C)
100
75
50
25
0
-25
50
100
150
200
0
-50
125
IN+
IN-
RLOAD = NO LOAD
INPUT BIAS CURRENT
vs.
TEMPERATURE
TEMPERATURE (°C)
50
100
150
200
0
100
75
-25
0
25
50
-50
125
IN+
IN-
COMMON-MODE REJECTION RATIO
vs.
FREQUENCY
FREQUENCY (kHz)
1000
100
10
1
0.1
-100
-80
-60
-40
-20
0
-120
0.01
10,000
RLOAD = NO LOAD
POWER-SUPPLY REJECTION RATIO
vs.
FREQUENCY
FREQUENCY (kHz)
1000
100
10
1
0.1
-100
-80
-60
-40
-20
0
-120
0.01
10,000
RLOAD = NO LOAD
0.01Hz TO 10Hz INPUT VOLTAGE NOISE
MAX9622 toc13
400nV/div
1s/div
INPUT VOLTAGE NOISE vs. FREQUENCY
FREQUENCY (Hz)
1000
100
5
10
15
20
25
30
35
40
45
50
0
10
10,000
RLOAD = NO LOAD
INPUT CURRENT NOISE vs. FREQUENCY
FREQUENCY (Hz)
1000
100
2
4
6
8
10
12
14
16
0
10
10,000
RLOAD = NO LOAD
