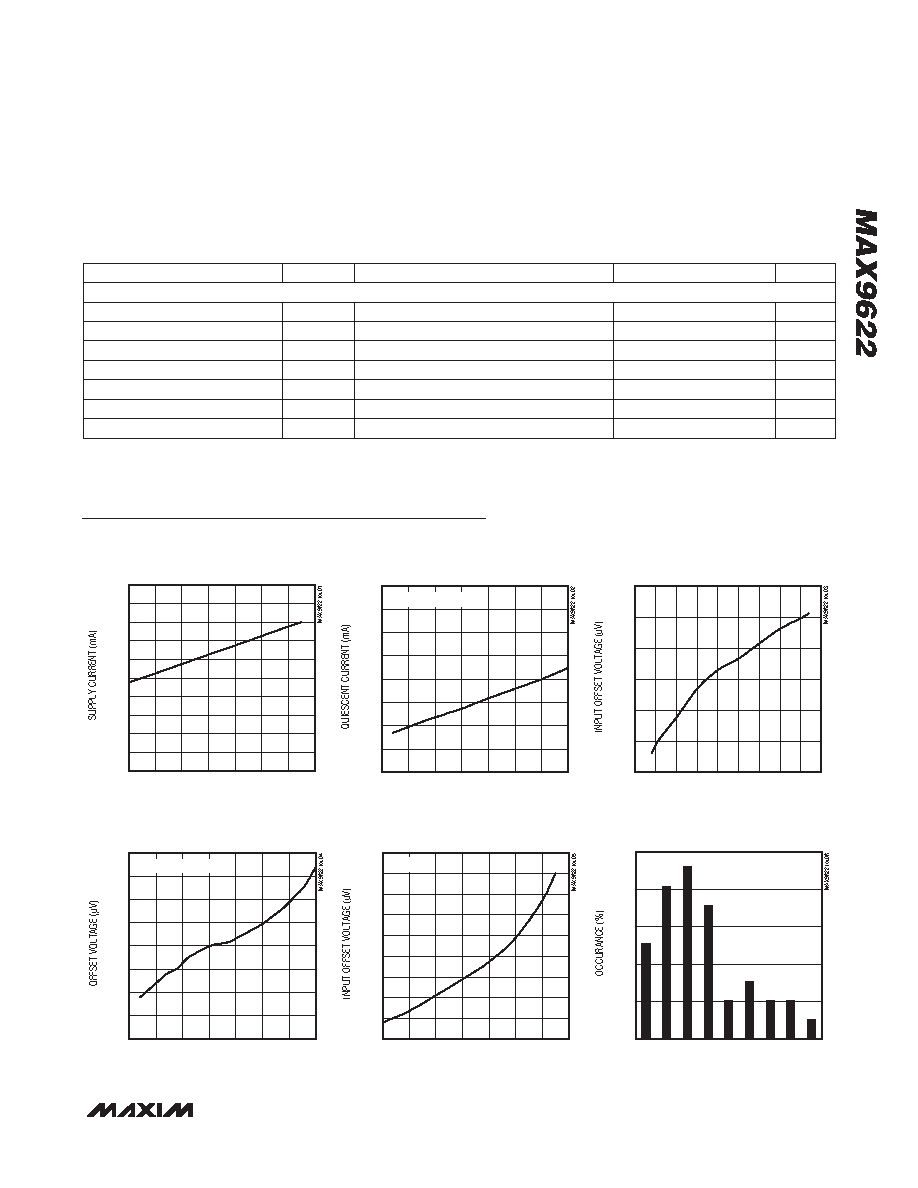

 3 / 10 page
background image
Precision, High-Bandwidth Op Amp
_______________________________________________________________________________________ 3
ELECTRICAL CHARACTERISTICS (continued)
(VCC = 5V, VIN+ = VIN- = 0V, RL = 10kI to VCC/2, TA = -40NC to +125NC, unless otherwise noted. Typical values are at TA = +25NC.)
(Note 2)
Note 2: The device is 100% production tested at TA = +25NC. Temperature limits are guaranteed by design.
Note 3: Guaranteed by design.
Typical Operating Characteristics
(VCC = 5V, RL = 10kI to VCC/2, TA = +25NC, unless otherwise noted.)
PARAMETER
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
AC SPECIFICATIONS
Gain-Bandwidth Product
GBW
50
MHz
Large-Signal Bandwidth
BWLS
VOUT = 2VP-P
3
MHz
Slew Rate
SR
VOUT = 2VP-P, 10% to 90%
20
V/Fs
Settling Time
tS
To 0.1%, VOUT = 2VP-P, CL = 10pF
200
ns
Total Harmonic Distortion
THD
f = 10kHz, VOUT = 2VP-P
90
dB
Input Voltage Noise Density
EN
f = 10kHz
13
nV/√Hz
Input Current Noise Density
IN
f = 10kHz
3
pA/√Hz
SUPPLY CURRENT vs. SUPPLY VOLTAGE
SUPPLY VOLTAGE (V)
5.0
4.5
3.5
4.0
3.0
2.5
0.82
0.84
0.86
0.88
0.90
0.92
0.94
0.96
0.98
1.00
0.80
2.0
5.5
QUIESCENT CURRENT vs. TEMPERATURE
TEMPERATURE (°C)
100
75
-25
0
25
50
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
0.4
-50
125
RLOAD = NO LOAD
INPUT OFFSET VOLTAGE
vs. COMMON-MODE VOLTAGE
COMMON-MODE VOLTAGE (V)
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
5
10
15
20
25
30
0
-0.5
4.0
OFFSET VOLTAGE vs. TEMPERATURE
TEMPERATURE (°C)
100
75
-25
0
25
50
-150
-100
-50
0
50
100
150
200
-200
-50
125
RLOAD = NO LOAD
INPUT OFFSET VOLTAGE
vs. SUPPLY VOLTAGE
SUPPLY VOLTAGE (V)
5.0
4.5
3.5
4.0
3.0
2.5
-25
-20
-15
-10
-5
0
5
10
15
-30
2.0
5.5
VCM = 0V
OFFSET VOLTAGE HISTOGRAM
OFFSET VOLTAGE (µV)
40
35
30
25
20
15
10
5
5
10
15
20
25
0
0
