STFPC320
Remote control protocols
63/78
15.8
RCA remote control format

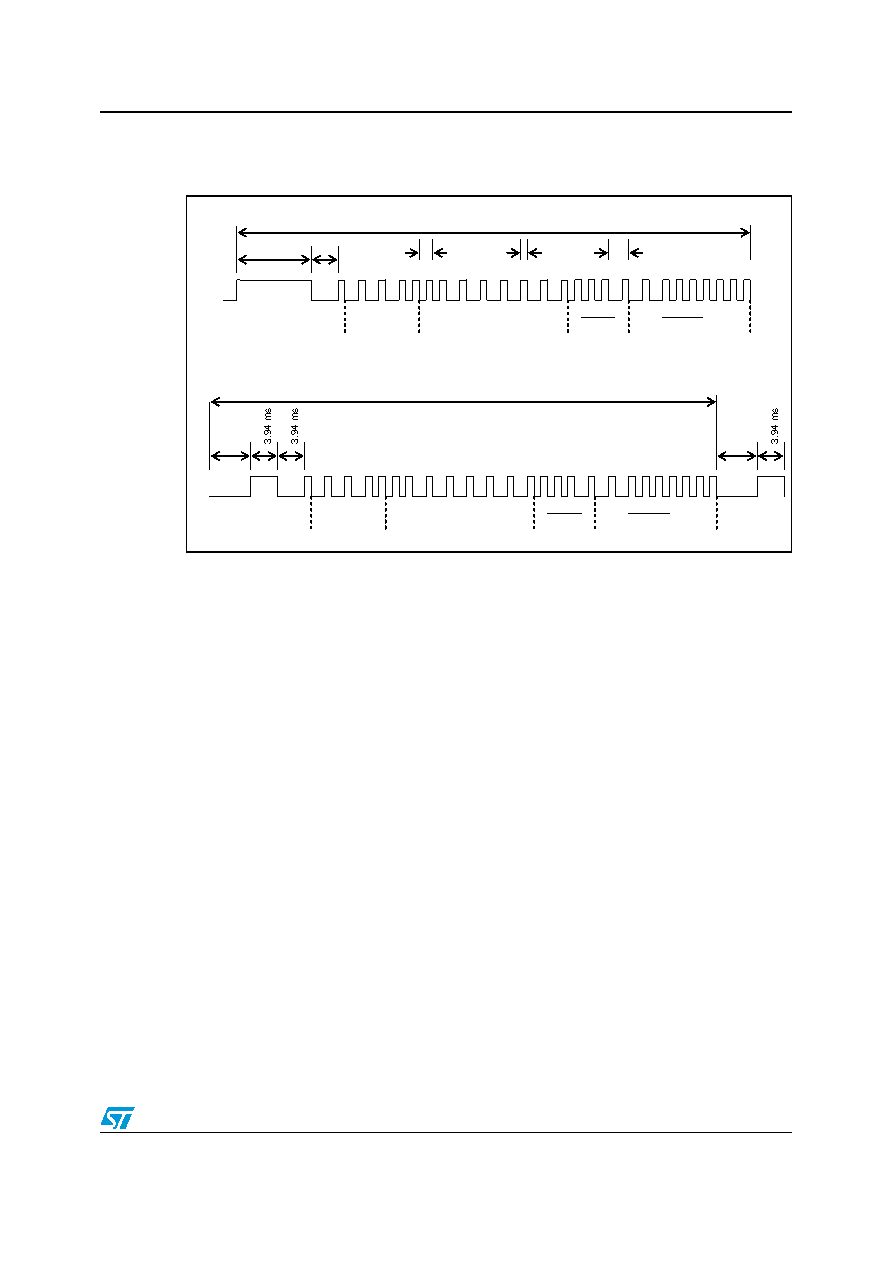

Figure 43.
Thomson RCA remote control protocol
Note:
The above waveform is on the transmitted side. The received data by the STFPC320 after
the photo-diode is inverted from above.
0
0
0
1 1 1
0
0
0
0
0
0
1 1 1 0
0
0 1 1 1 1 1 1
0
0
0
1 1 1
0
0
0
0
0
0
1 1 1 0
0
0 1 1 1 1 1 1
Address
Command
Address
Command
Address
Command
Address
Command
19.6 ms
3.94 ms
8.02 ms
First dataword
Repeat dataword
Logic “1” 1.48
ms
Logic “0” 2.46
ms
Sync
492
μs
8.02 ms
