STFPC320
Remote control protocols
61/78
15.7
R2000 remote control format

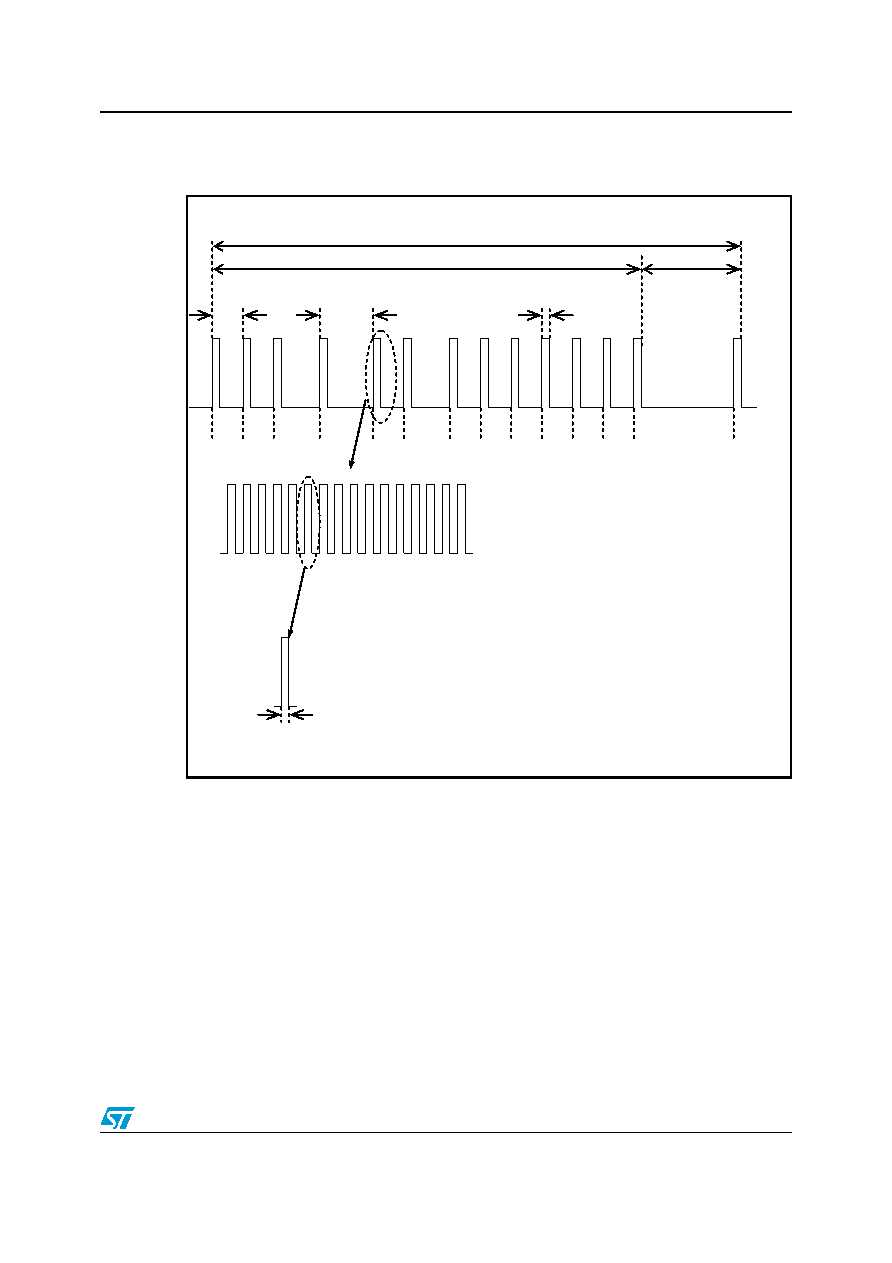

Figure 40.
Thomson R2000 remote control protocol
Note:
The above waveform is on the transmitted side. The received data by the STFPC320 after
the photo-diode is inverted from above.
A3
A2
A1
A0
T0
D6
D5
D4
D3
D2
D1
D0
Pause
2.53 ms
5.06 ms
480
μs
min. 30.36 ms
max. 60.72 ms
max. 49.64 ms
min. 19.28 ms
modulated mode
(16 pulses)
30
μs
33.3 kHz
logic 0 = 2.53 ms
logic 1 = 5.06 ms
A0 – A3 = Address bits (4-bit)
T0 = Toggle bit
D0 – D6 = Command bits (7-bit)
MSB is sent first.
A3
1 Dataword = 80 ms
A3
A2
A1
A0
T0
D6
D5
D4
D3
D2
D1
D0
Pause
2.53 ms
5.06 ms
480
μs
min. 30.36 ms
max. 60.72 ms
max. 49.64 ms
min. 19.28 ms
modulated mode
(16 pulses)
30
μs
33.3 kHz
logic 0 = 2.53 ms
logic 1 = 5.06 ms
A0 – A3 = Address bits (4-bit)
T0 = Toggle bit
D0 – D6 = Command bits (7-bit)
MSB is sent first.
A3
1 Dataword = 80 ms
