Data Sheet
ADP1706/ADP1707/ADP1708
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 10 of 19

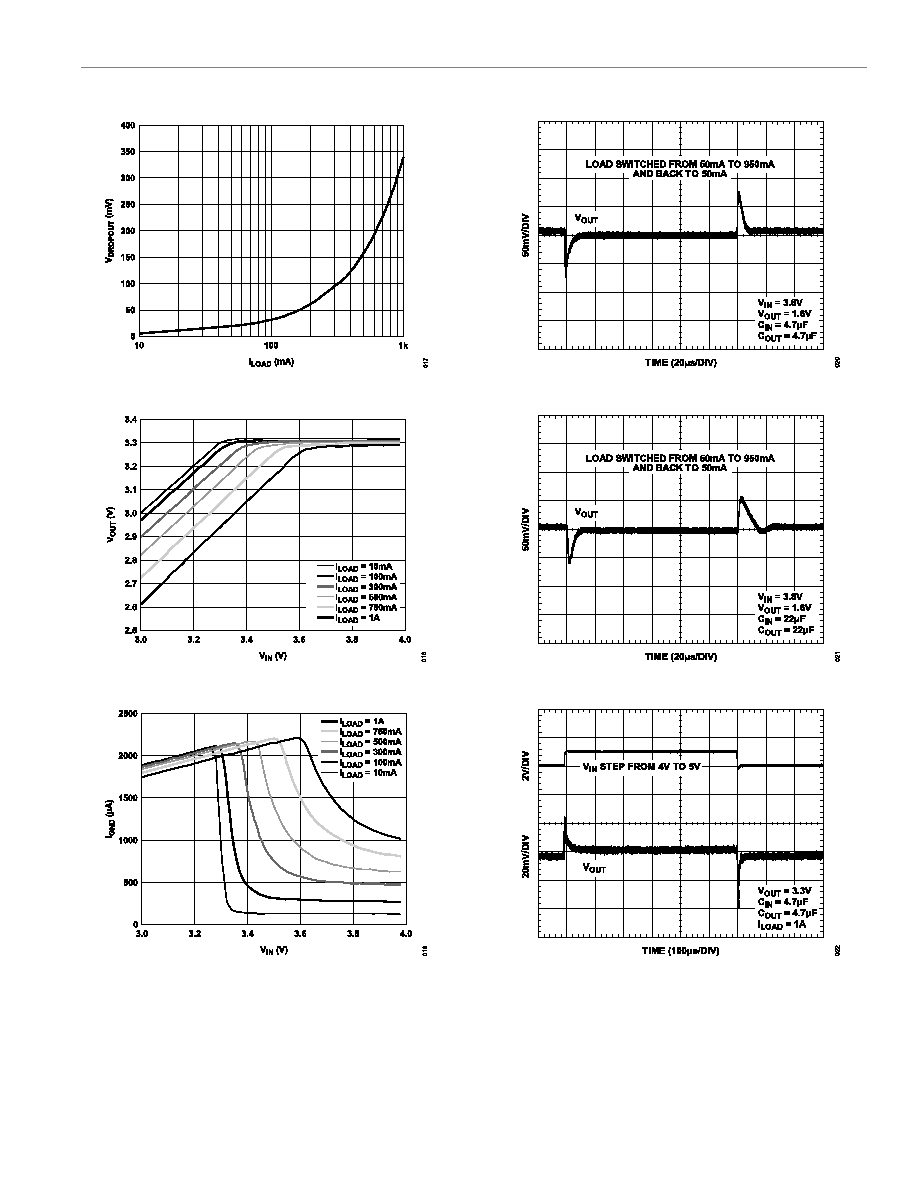

Figure 16. Dropout Voltage (VDROPOUT) vs. Load Current (ILOAD)
Figure 17. Output Voltage (VOUT) vs. Input Voltage (VIN) (in Dropout)
Figure 18. Ground Current (IGND) vs. Input Voltage (VIN) (in Dropout)
Figure 19. Load Transient Response, CIN = 4.7 µF, COUT = 4.7 µF
Figure 20. Load Transient Response, CIN = 22 µF, COUT = 22 µF
Figure 21. Line Transient Response
