Data Sheet
ADP1706/ADP1707/ADP1708
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 9 of 19
VIN = 3.8 V, IOUT = 100 mA, CIN = 4.7 µF, COUT = 4.7 µF, TA = 25°C, unless otherwise noted.

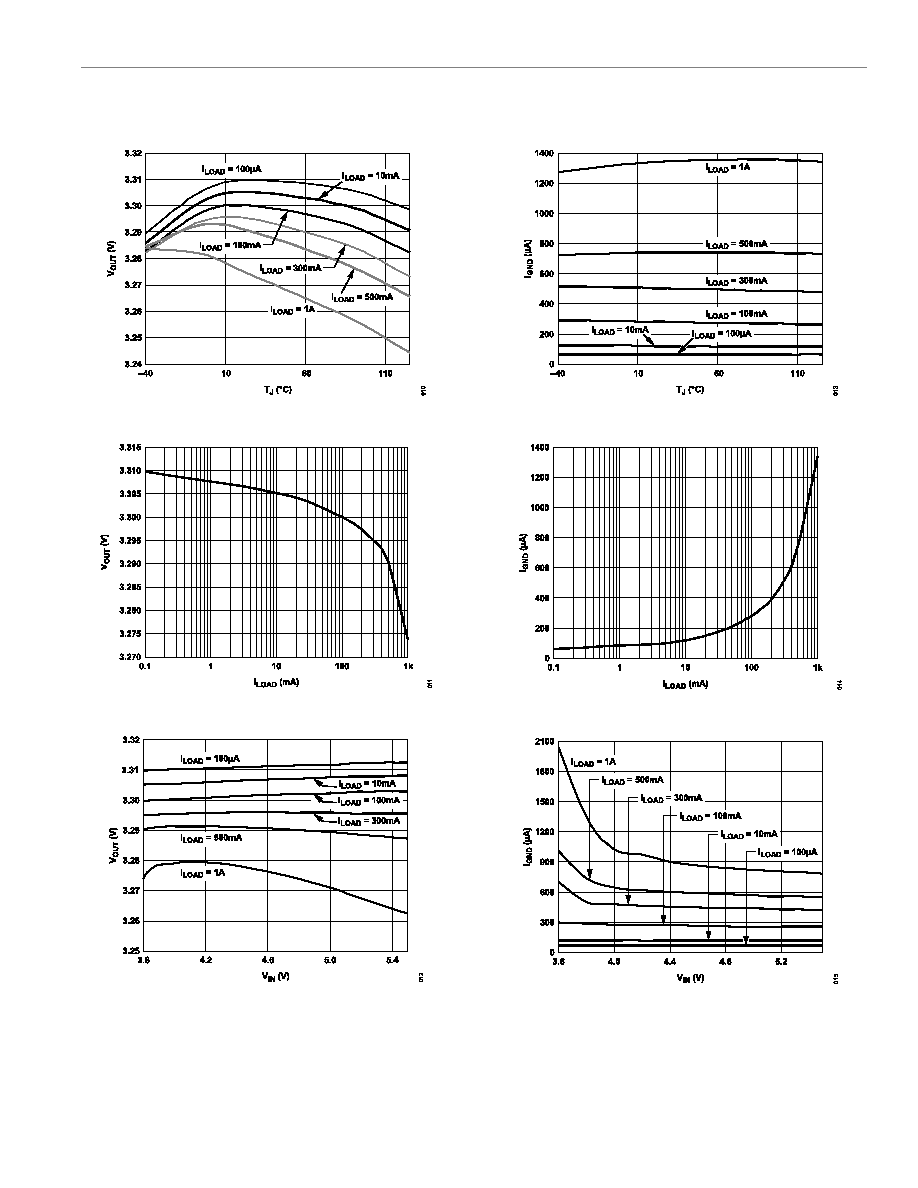

Figure 10. Output Voltage (VOUT) vs. Junction Temperature (TJ)
Figure 11. Output Voltage (VOUT) vs. Load Current (ILOAD)
Figure 12. Output Voltage (VOUT) vs. Input Voltage (VIN)
Figure 13. Ground Current (IGND) vs. Junction Temperature (TJ)
Figure 14. Ground Current (IGND) vs. Load Current (ILOAD)
Figure 15. Ground Current (IGND) vs. Input Voltage (VIN)
