ESL1A-R THRU ESL1J-R

SURFACE MOUNT

ULTRAFAST GLASS PASSIVATED

JUNCTION RECTIFIER

VOLTAGE: 50 to 600V

CURRENT: 1.0A

FEATURE

SMF

Ideal for surface mount pick and place application

Low profile package

Built-in strain relief

High temperature soldering guaranteed

260℃/10sec/at terminals

Glass passivated chip

Ultrafast recovery time for high efficiency

MECHANICAL DATA

Terminal: Solder plated, solderable per J-STD-002

Case: Molded with UL-94 class V-0 recognized Flame

Retardant Epoxy

Polarity: color band denotes cathode

Marking: E1A～E1J

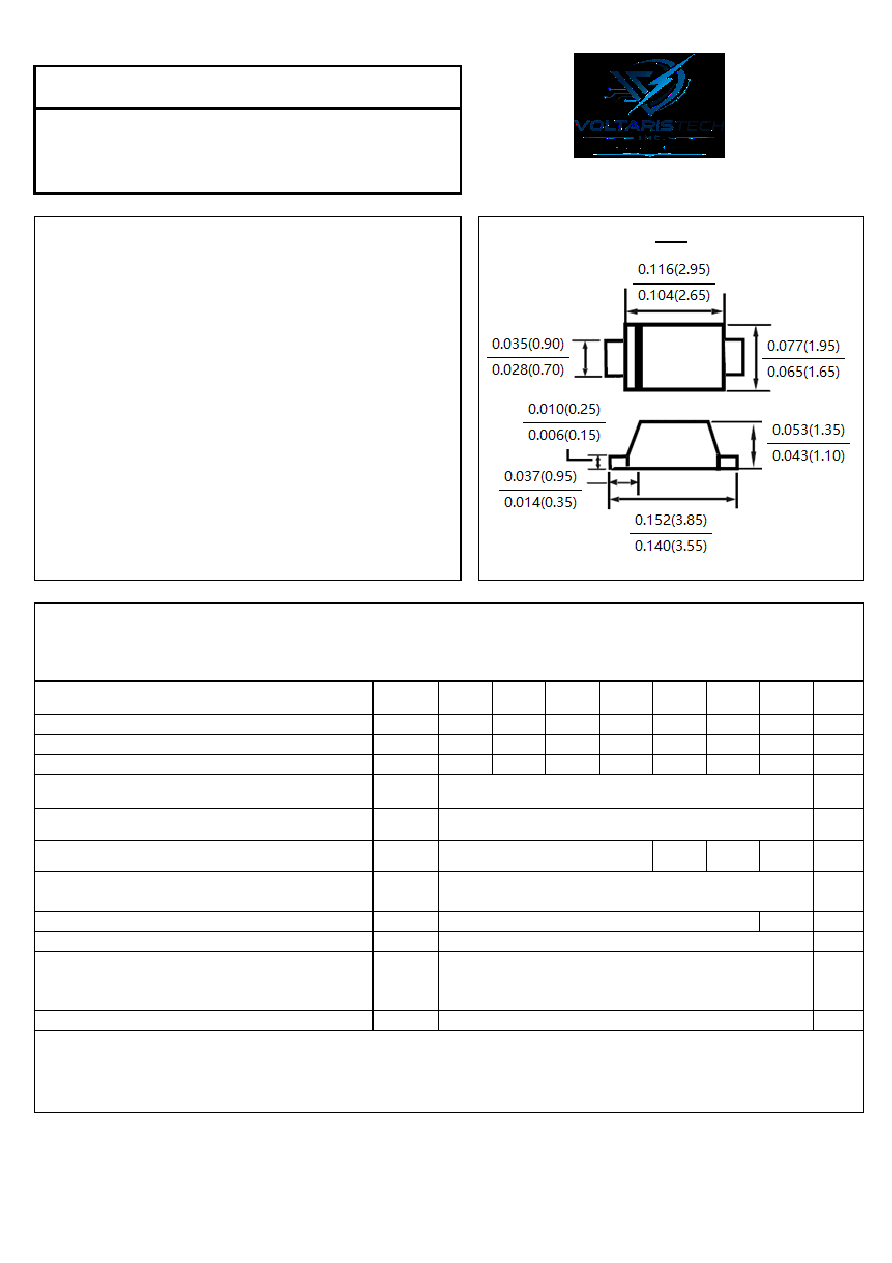

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25℃, unless otherwise stated)

Symbol

ESL1

A-R

ESL1

B-R

ESL1

C-R

ESL1

D-R

ESL1

F-R

ESL1

G-R

ESL1

J-R

units

Maximum Recurrent Peak Reverse Voltage

Vrrm

50

100

150

200

300

400

600

V

Maximum RMS Voltage

Vrms

35

70

105

140

210

280

420

V

Maximum DC blocking Voltage

Vdc

50

100

150

200

300

400

600

V

Maximum Average Forward Rectified Current

3/8″lead length at TL =110℃

If(av)

1.0

A

Peak Forward Surge Current 8.3ms single half

sine- wave superimposed on rated load

Ifsm

30

A

Maximum

Forward

Voltage

at

rated

forward

current

Vf

0.95

1.0

1.25

1.7

V

Maximum DC Reverse Current

Ta =25℃

at rated DC blocking voltage

Ta =125℃

Ir

5.0

300

μ A

Maximum Reverse Recovery Time

(Note1 )

Trr

25

35

nS

Typical Junction Capacitance

(Note 2)

Cj

9.0

pF

Typical Thermal Resistance (Note 3)

Rth(jl)

Rth(ja)

Rth(jc)

21

62

22

℃/W

Storage and Operating Junction Temperature

Tstg, Tj

-50 to +150

℃

Note：

1. Reverse Recovery Condition If =0.5A, Ir =1.0A, Irr =0.25A

2. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

3. Thermal Resistance from Junction to terminal mounted on 3×3mm copper pad area

Rev.A2, 7-Sep-18
