LED7706
Pin settings
5/31
2
Pin settings
2.1
Connections

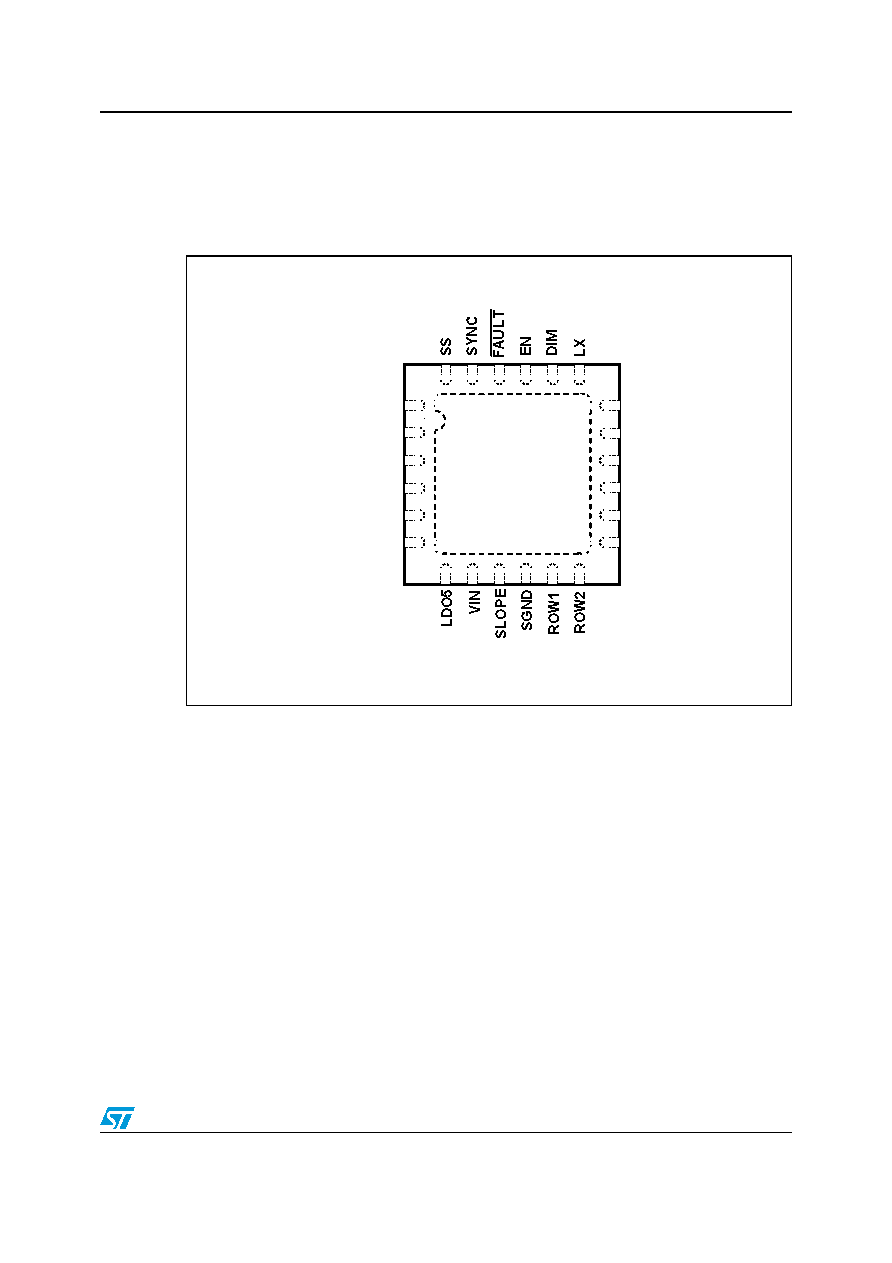

Figure 2.
Pin connection (through top view)
LED7706
1
6
7
12
13
18
19
24
ROW3
ROW4
ROW5
ROW6
PGND
OVSEL
COMP
RILIM
FSW
BILIM
MODE
AVCC
