LED7706
Package mechanical data
29/31
Table 9.
VFQFPN-24 4 mm x 4 mm footprint
Dim.
mm
Min
Typ
Max
X
0.28
Y0.69
ADmax=AEmax
2.78
GDmin=GEmin
2.93
ZDmax=ZEmax
4.31
D2’=E2’
2.63

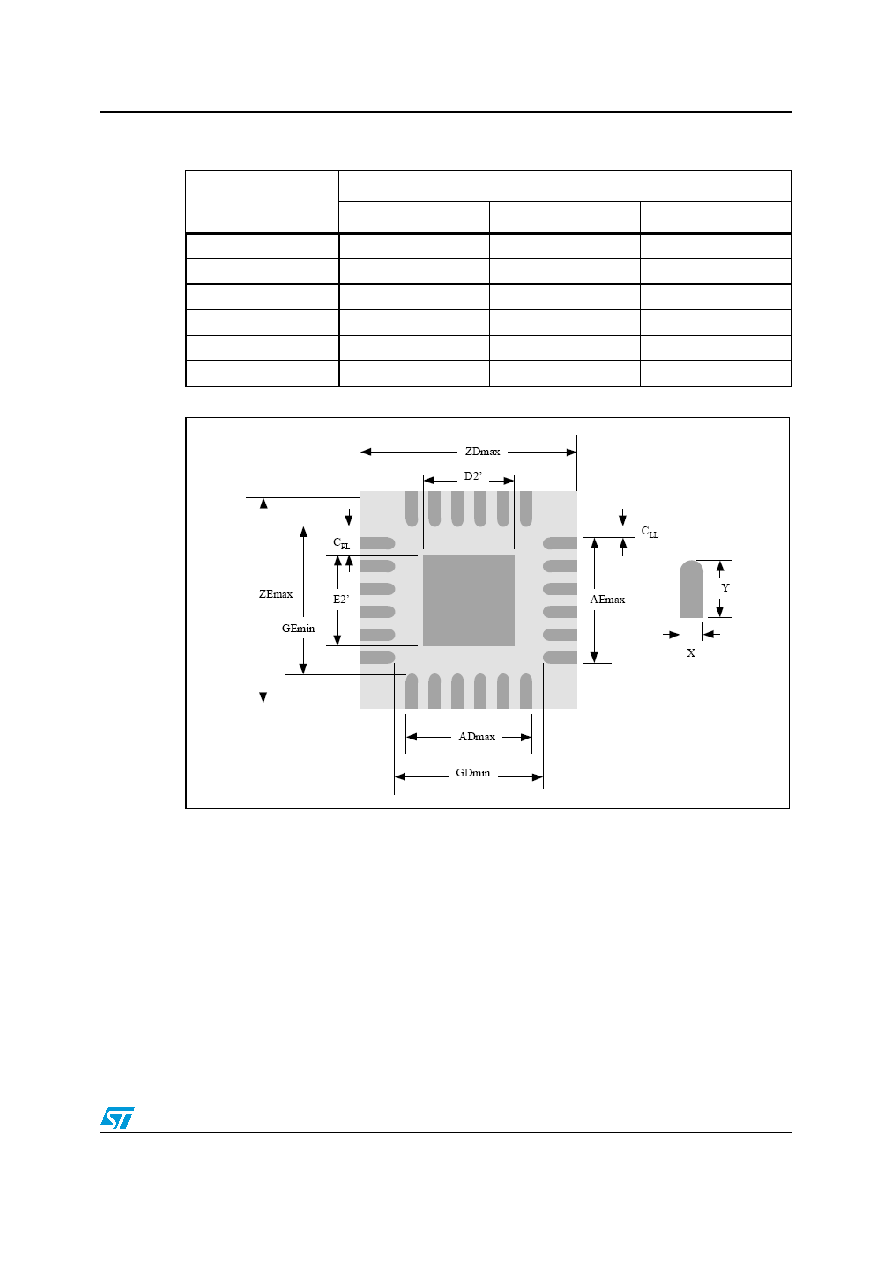

Figure 17. Footprint
