SSM2537
Data Sheet
Rev. 0 | Page 10 of 16

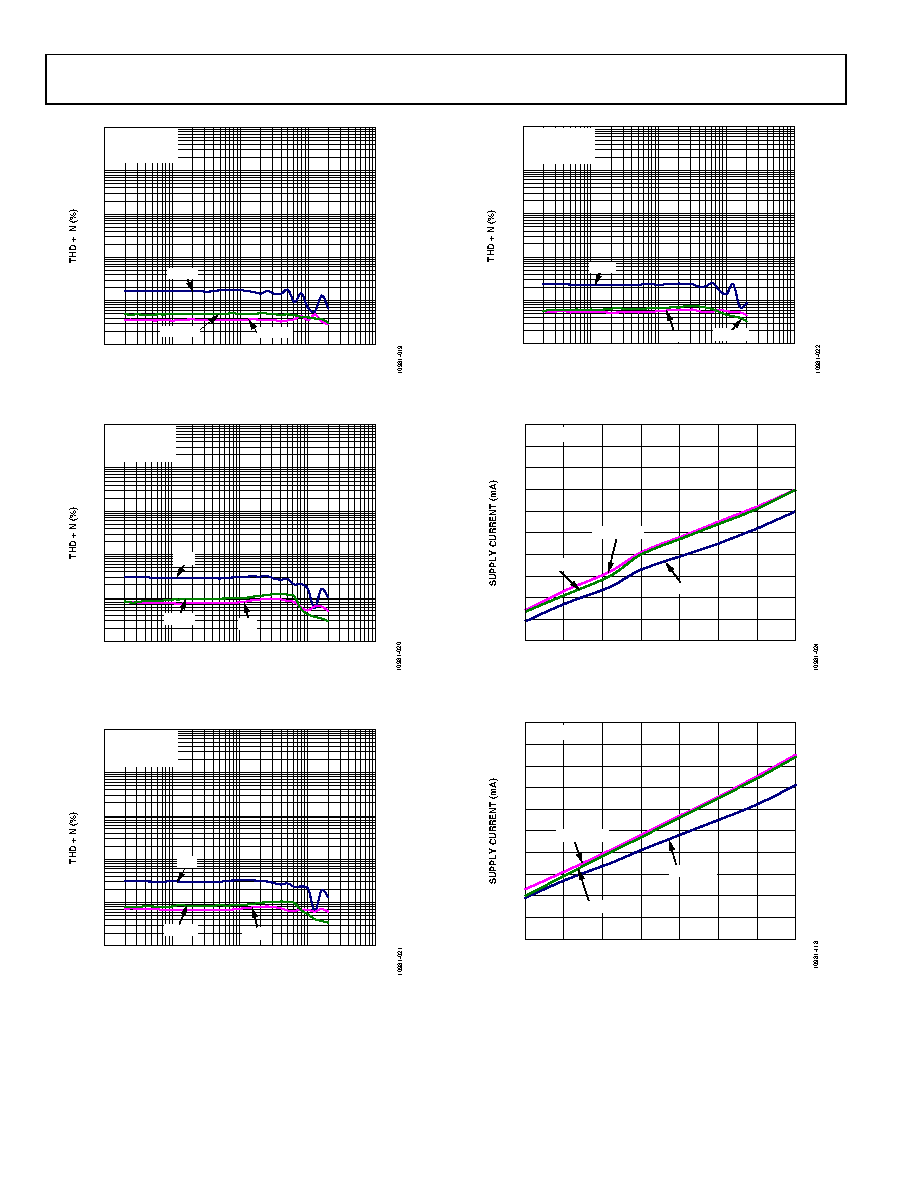

Figure 16. THD + N vs. Frequency, PVDD = 2.5 V, RL = 8 Ω, fS = 128×
Figure 17. THD + N vs. Frequency, PVDD = 5 V, RL = 4 Ω, fS = 128×
Figure 18. THD + N vs. Frequency, PVDD = 3.6 V, RL = 4 Ω, fS = 128×
Figure 19. THD + N vs. Frequency, PVDD = 2.5 V, RL = 4 Ω, fS = 128×
Figure 20. Quiescent Current vs. Supply Voltage, fS = 64×
Figure 21. Quiescent Current vs. Supply Voltage, fS = 128×
0.001
0.01
0.1
1
10
100
10
100
1k
10k
100k
FREQUENCY (Hz)
RL = 8Ω + 33µH
PVDD = 2.5V
fS = 128×
0.125W
0.25W
0.0625W
0.001
0.01
0.1
1
10
100
10
100
1k
10k
100k
FREQUENCY (Hz)
RL = 4Ω + 15µH
PVDD = 5V
fS = 128×
2W
0.5W
1W
0.001
0.01
0.1
1
10
100
10
100
1k
10k
100k
FREQUENCY (Hz)
RL = 4Ω + 15µH
PVDD = 3.6V
fS = 128×
0.5W
0.25W
1W
0.001
0.01
0.1
1
10
100
10
100
1k
10k
100k
FREQUENCY (Hz)
RL = 4Ω + 15µH
PVDD = 2.5V
fS = 128×
0.25W
0.125W
0.5W
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
SUPPLY VOLTAGE (V)
fS = 64×
4Ω + 15µH
8Ω + 33µH
NO LOAD
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
SUPPLY VOLTAGE (V)
fS = 128×
4Ω + 15µH
8Ω + 33µH
NO LOAD
