Usage of the idle/turn-around time (IDCY) is demonstrated In Figure 6. Extra wait states
are added between a read and a write cycle in the same external memory device.
Address pins on the device are shared with other functions. When connecting external
memories, check that the I/O pin is programmed for the correct function. Control of these
settings is handled by the SCU.
WSTOEN=5, WSTWEN=5, WST1=7, WST2=6, IDCY=5

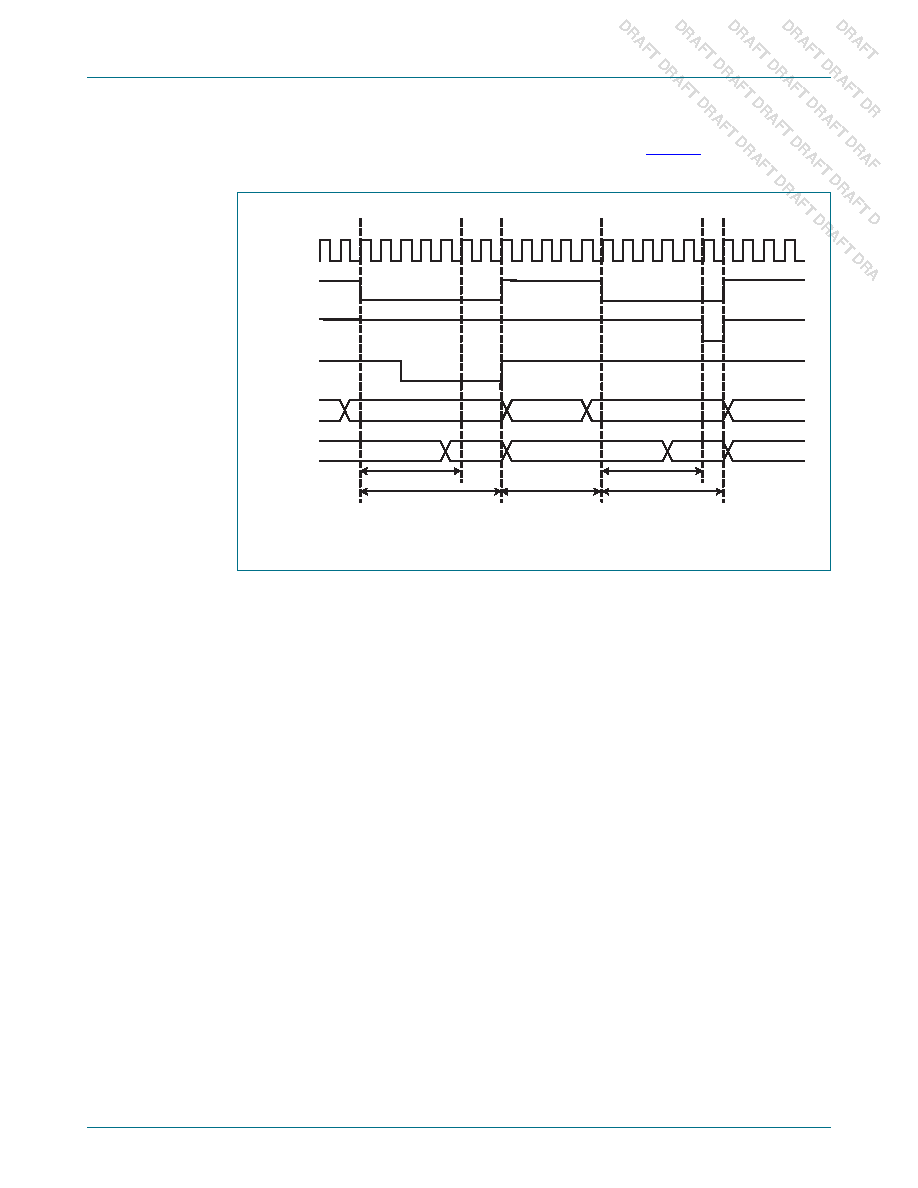

Fig 6.
Reading/writing external memory
OE_N
CLK(SYS)
CS
ADDR
DATA
WSTOEN
WST1
WSTWEN
WST2
WE_N / BLS
IDCY
