17
NYP

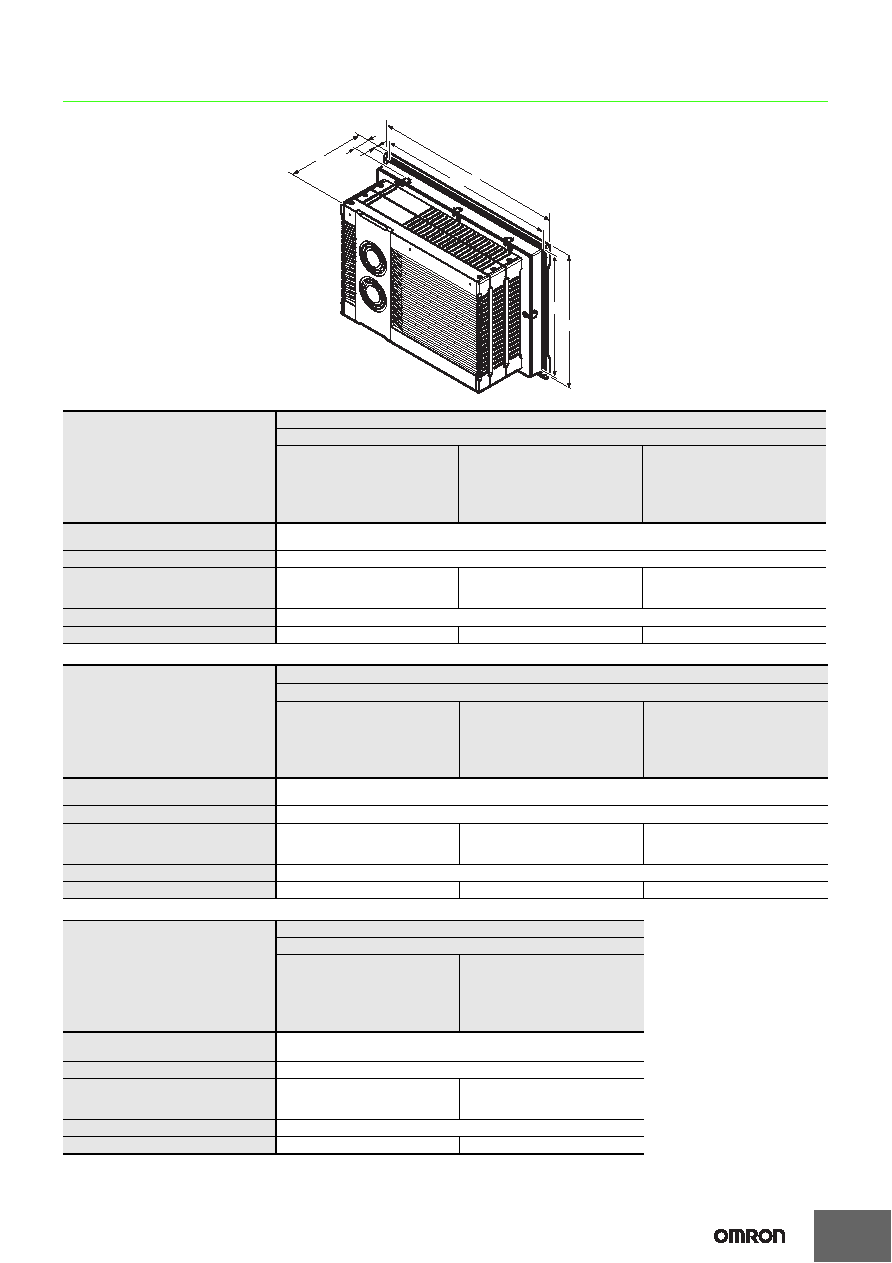

Dimensions
* The minimum panel thickness depends on the panel material.
Item
Panel
12.1 Inch
NYP35-
@1@@@
NYP2C-
@1@@@
NYP27-
@0@@@
NYP35-
@0@@@
NYP2C-
@0@@@
NYP2A-
@0@@@
NYP65-
@0@@@
NYP13-
@0@@@
NYP3A-
@0@@@
Panel preparation dimensions
Cutout Width X1 =
314-0 +1 mm
Cutout Height Y1 =
216-0 +1 mm
Panel thickness range
*
Panel thickness range Z1 = 1.6 to 6.0 mm
Dimensions
Width X = 332 mm
Height Y = 234 mm
Depth Z = 105 mm
Width X = 332 mm
Height Y = 234 mm
Depth Z = 88 mm
Width X = 332 mm
Height Y = 234 mm
Depth Z = 73 mm
Monitor thickness in front of panel
Rim thickness R = 8.0 mm
Weight
5.6 kg
5.1 kg
4.7 kg
Item
Panel
15.4 Inch
NYP35-
@1@@@
NYP2C-
@1@@@
NYP65-
@1@@@
NYP13-
@1@@@
NYP27-
@0@@@
NYP35-
@0@@@
NYP2C-
@0@@@
NYP2A-
@0@@@
NYP65-
@0@@@
NYP13-
@0@@@
NYP3A-
@0@@@
Panel preparation dimensions
Cutout Width X1 =
383-0 +1 mm
Cutout Height Y1 =
259-0 +1 mm
Panel thickness range
*
Panel thickness range Z1 = 1.6 to 6.0 mm
Dimensions
Width X = 401 mm
Height Y = 277 mm
Depth Z = 105 mm
Width X = 401 mm
Height Y = 277 mm
Depth Z = 88 mm
Width X = 401 mm
Height Y = 277 mm
Depth Z = 73 mm
Monitor thickness in front of panel
Rim thickness R = 8.0 mm
Weight
6.6 kg
6.0 kg
5.6 kg
Item
Panel
18.5 Inch
NYP27-
@0@@@
NYP35-
@0@@@
NYP2C-
@0@@@
NYP2A-
@0@@@
NYP65-
@0@@@
NYP13-
@0@@@
NYP3A-
@0@@@
Panel preparation dimensions
Cutout Width X1 = 463-0 +1 mm
Cutout Height Y1 = 285-0 +1 mm
Panel thickness range
*
Panel thickness range Z1 = 1.6 to 6.0 mm
Dimensions
Width X = 482 mm
Height Y = 304 mm
Depth Z = 88 mm
Width X = 482 mm
Height Y = 304 mm
Depth Z = 73 mm
Monitor thickness in front of panel
Rim thickness R = 8.0 mm
Weight
7.0 kg
6.6 kg
Z
Y1
Z1
Y
X1
X
R
