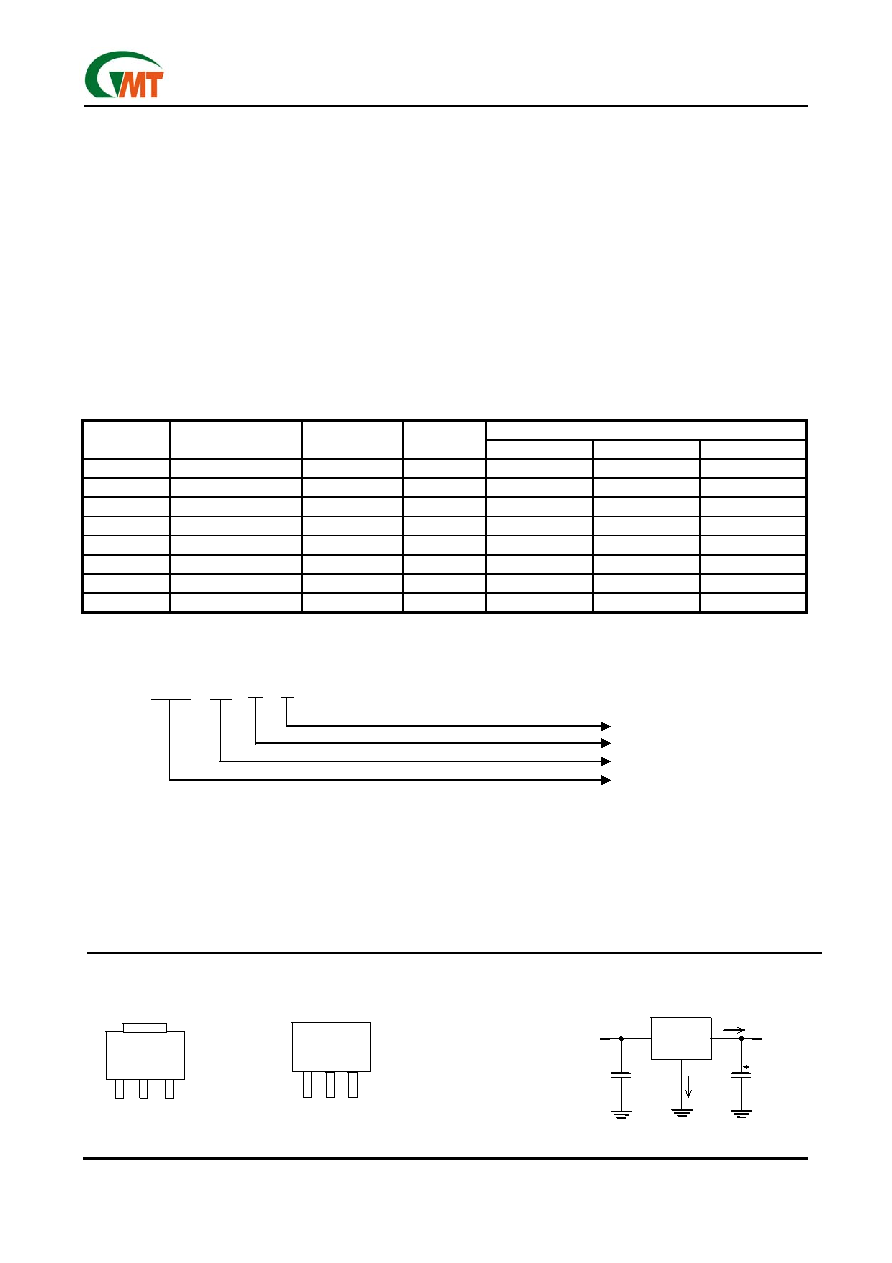

1 / 10 page  Ver: 7.2 Jan 20, 2006 TEL: 886-3-5788833 http://www.gmt.com.tw 1 G910/G911 Global Mixed-mode Technology Inc. 3.3V 600mA/250mA + Low Dropout Regulator Features Dropout voltage typically 0.65V/0.25V @ IO = 600mA/ 250mA + Output current in excess of 600mA/250mA + Output voltage accuracy ±2% Quiescent current, typically 0.3mA Internal short circuit current limit Internal over temperature protection General Description The G910/G911 positive 3.3V voltage regulator fea- tures the ability to source 600mA/250mA+ of output current with a dropout voltage of typically 0.65V/ 0.25V. A low quiescent current is provided. The typi- cal quiescent current is 0.3mA. [ + For µTO-92 & TO-92 package] Familiar regulator features such as over temperature and over current protection circuits are provided to prevent it from being damaged by abnormal operating conditions. Ordering Information PIN OPTION ORDER NUMBER ORDER NUMBER (Pb free) TEMP. RANGE PACKAGE 1 2 3 G910T21U G910T21Uf -40°C~85°C SOT-89 VOUT GND VIN G911T24U G911T24Uf -40°C~85°C SOT-89 GND VIN VOUT G910T65U G910T65Uf -40°C~85°C SOT-223 VIN GND VOUT G910TD1B G910TD1Bf -40°C~85°C TO-92 VOUT GND VIN G911TD4B G911TD4Bf -40°C~85°C TO-92 GND VIN VOUT G910T81B G910T81Bf -40°C~85°C µTO-92 VOUT GND VIN G911T84B G911T84Bf -40°C~85°C µTO-92 GND VIN VOUT G911T85B G911T85Bf -40°C~85°C µTO-92 VIN GND VOUT * For other package types, pin options and package, please contact us at sales@gmt.com.tw Order Number Identification GXXX XX X X Packing Type Pin Option Package Type Part Number PACKAGE TYPE PIN OPTION PACKING T2 : SOT-89 1 2 3 U & D : Tape & Reel Direction T6 : SOT-223 1 : VOUT GND VIN B : Bag T8 : µTO-92 2 : VOUT VIN GND TD :TO-92 3 : GND VOUT VIN 4 : GND VIN VOUT 5 : VIN GND VOUT 6 : VIN VOUT GND Package Type Typical Application [Note 4]: Type of COUT Top View Top View Top View SOT-89、223 Top View 1 3 µTO-92 、 TO-92 2 Top View V IN G910 C1 0.47µF IQ V OUT I O C OUT 10µF Top View Top View Top View Top View SOT-89、223 Top View 1 3 µTO-92 、 TO-92 2 Top View V IN G910 C1 0.47µF IQ V OUT I O C OUT 10µF |
