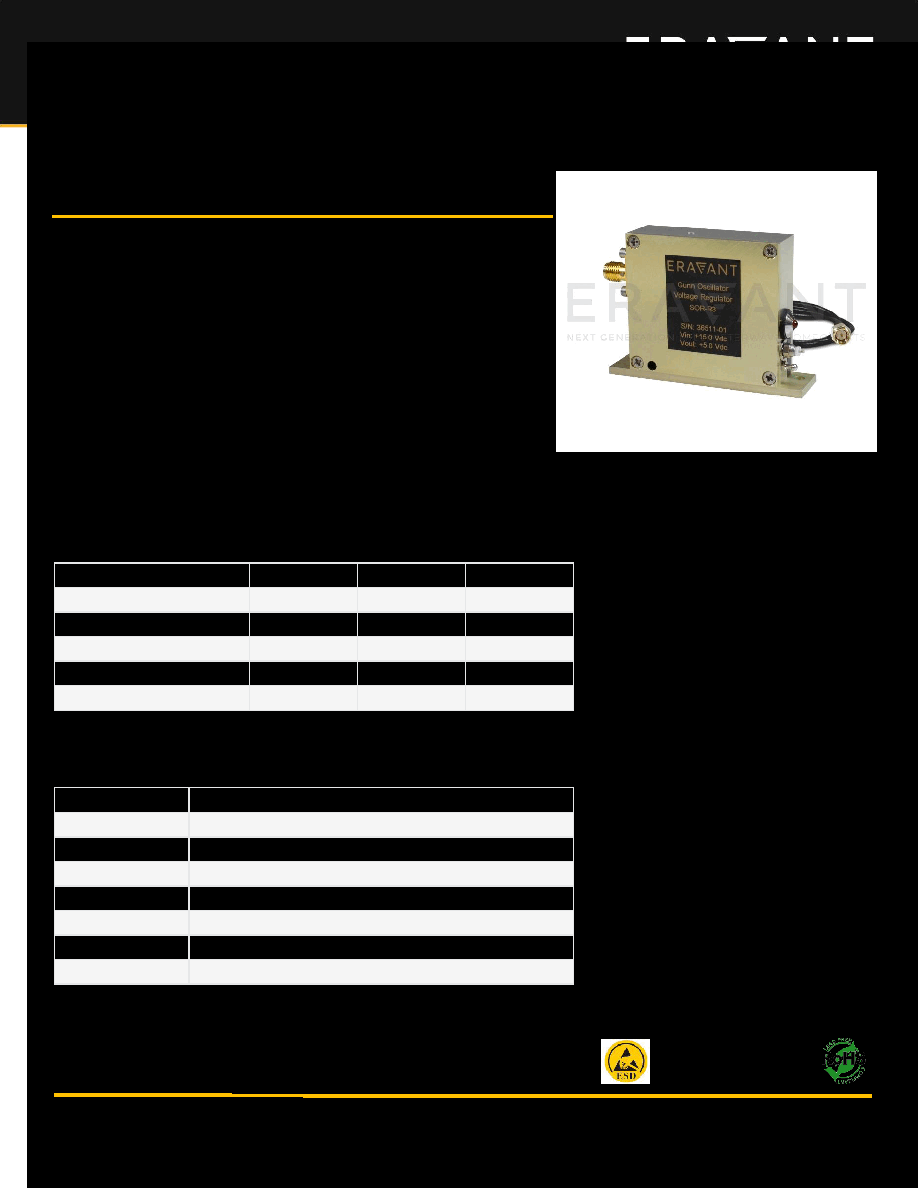

Gunn Oscillator Regulator

SOR-R3 is a voltage regulator designed and manufactured to protect the

Gunn oscillator from being accidently reverse biased or over biased. The

well-regulated and low ripple output voltage supplied by the regulator

also helps to reduce possible amplitude and frequency modulation

caused by the ripples of the bias voltage supplied by a low-quality DC

power supply.

Electrical Specifications:

Mechanical Specifications:

Parameter

Minimum

Typical

Maximum

Input Voltage (VDC)

+15 VDC

Output Voltage (VDC)

+5 VDC

+12 VDC

Output Current Capacity

1,000 mA

Specification Temperature

+25°C

Case Temperature

0°C

+50°C

Item

Specification

Input Connector

Solder Pins

Output Connector

SMA (F)

Case Material

Aluminum

Finish

Chem Film

Weight

2.4 Oz

Size

2.5” (L) x 1.8” (W) x 0.6” (H)

Outline

OR-R3

ECCN

EAR99

FEATURES

•

High Regulated and Precise

Output Voltage

•

Low ripple to reduce AM

Modulation

APPLICATIONS

•

Lab Test Setups

•

Gunn Oscillation Protection

• Gunn Oscillation Enhancement

SUPPLEMENTAL DETAILS
