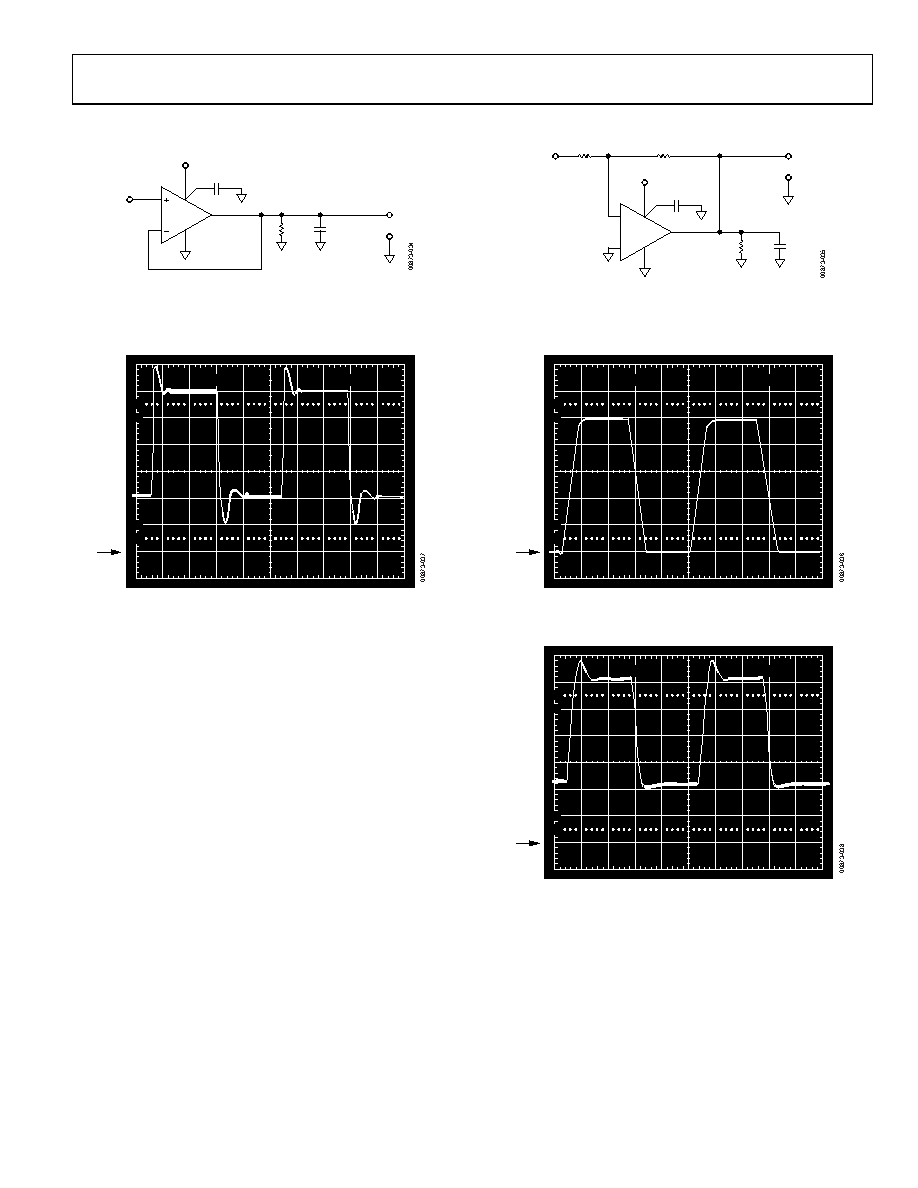

AD820
Rev. H | Page 15 of 24
AD820
+VS
RL
100pF
0.01µF
VOUT
VIN
3
2
4
7
6
–
+
Figure 33. Unity-Gain Follower, Used for Figure 34
100
90
10
0%
10mV
2µs
GND
Figure 34. VS = 5 V, 0 V; Unity-Gain Follower Response to 40 mV Step
Centered 40 mV Above Ground
AD820
–
+
+VS
RL
100pF
0.01µF
VIN
2
3
4
7
6
VOUT
–
+
10kΩ
20kΩ
Figure 35. Gain-of-2 Inverter, Used for Figure 36 and Figure 37
100
90
10
0%
1V
2µS
GND
Figure 36. VS = 5 V, 0 V; Gain-of-2 Inverter Response to 2.5 V Step,
Centered −1.25 V Below Ground
100
90
10
0%
10mV
2µs
GND
Figure 37. VS = 5 V, 0 V; Gain-of-2 Inverter Response to 20 mV Step, Centered
20 mV Below Ground
