TC7109/A

6.0

PACKAGING INFORMATION

6.1

Package Marking Information

Package marking data not available at this time.

6.2

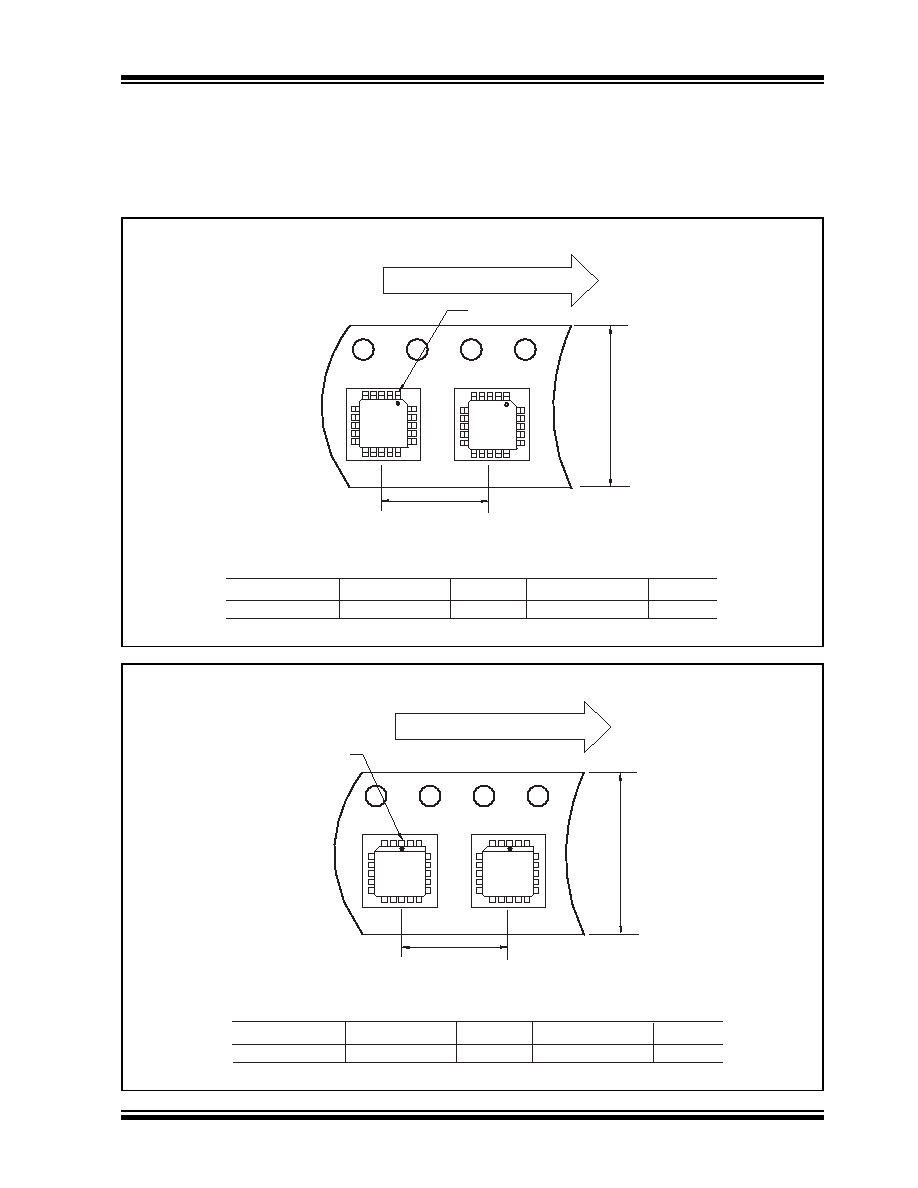

Taping Form

Component Taping Orientation for 44-Pin PQFP Devices

User Direction of Feed

Pin 1

Standard Reel Component Orientation

for 713 Suffix Device

Package

Carrier Width (W)

Pitch (P)

Part Per Full Reel

Reel Size

44-Pin PQFP

24 mm

16 mm

500

13 in

Carrier Tape, Number of Components Per Reel and Reel Size

Note: Drawing does not represent total number of pins.

Pin 1

Component Taping Orientation for 44-Pin PLCC Devices

User Direction of Feed

Standard Reel Component Orientation

for 713 Suffix Device

Note: Drawing does not represent total number of pins.

Package

Carrier Width (W)

Pitch (P)

Part Per Full Reel

Reel Size

44-Pin PLCC

32 mm

24 mm

500

13 in

Carrier Tape, Number of Components Per Reel and Reel Size
