NA-RTSM datasheet(30/36 Pages) OMRON

30 / 36 page

NA series

Version Information

NA series and Programming Devices

Components and Functions

NA series

Corresponding unit versions/version

Model

NA system version

NJ/NX/NY-series Controller

NX701-

@@@@

NY512-

@@@@

NX102-

@@@@

NY532-

@@@@

NX1P2-

@@@@

NJ501-

@@@@

NX-CSG320

NJ301-

@@@@

NJ101-

@@@@

Sysmac studio

NA5-

@@@@@@-V1

1.10 or later

NX-CSG320: 1.00 or later

1.24 or higher

1.09 or later

NX102: 1.30 or later

1.23 or higher

1.08 or later

NX1P2: 1.13 or later

NY512: 1.12 or later

NY532: 1.12 or later

NX701: 1.10 or later

NJ101: 1.10 or later

NJ501: 1.01 or later

NJ501 Database Connection: 1.05 or later

NJ301: 1.01 or later

1.40 or higher

No.

Name

Description

(1)

Display

The entire display is a touch panel that also functions as an input device.

(2)

RUN indicator

The status of the indicator changes according to the status of the NA.

(3)

Function keys

There are three function keys: F1, F2, and F3.

You can use the function keys as execution conditions for the actions for global or page events.

You can also use the function keys for interlocks.

F1 Key F2 Key

(3) Function keys

(2) RUN indicator

(1) Display

F3 Key

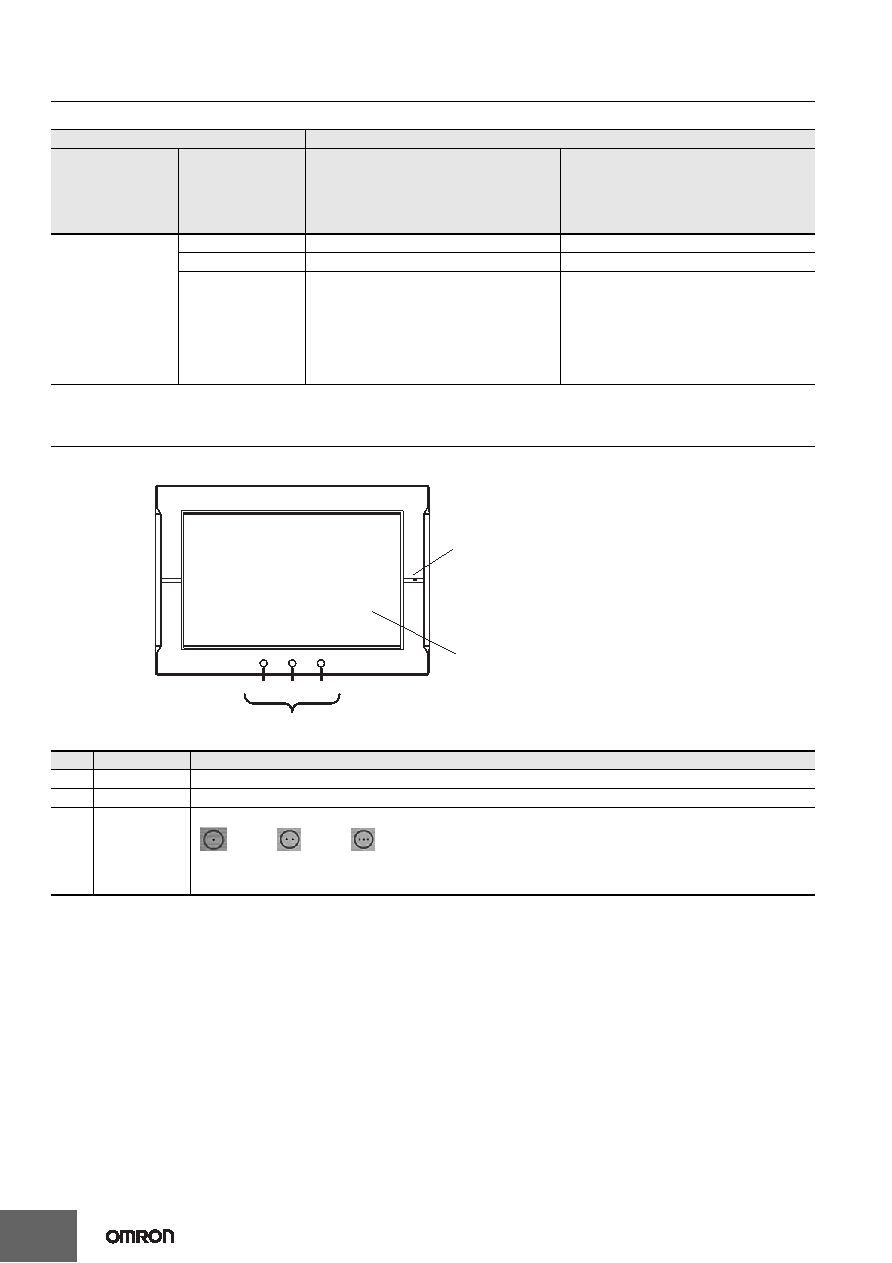

Front Panel

: F1 Key,

: F2 Key,

: F3 Key
