ADL5350
Preliminary Technical Data
Rev. PrC | Page 12 of 24

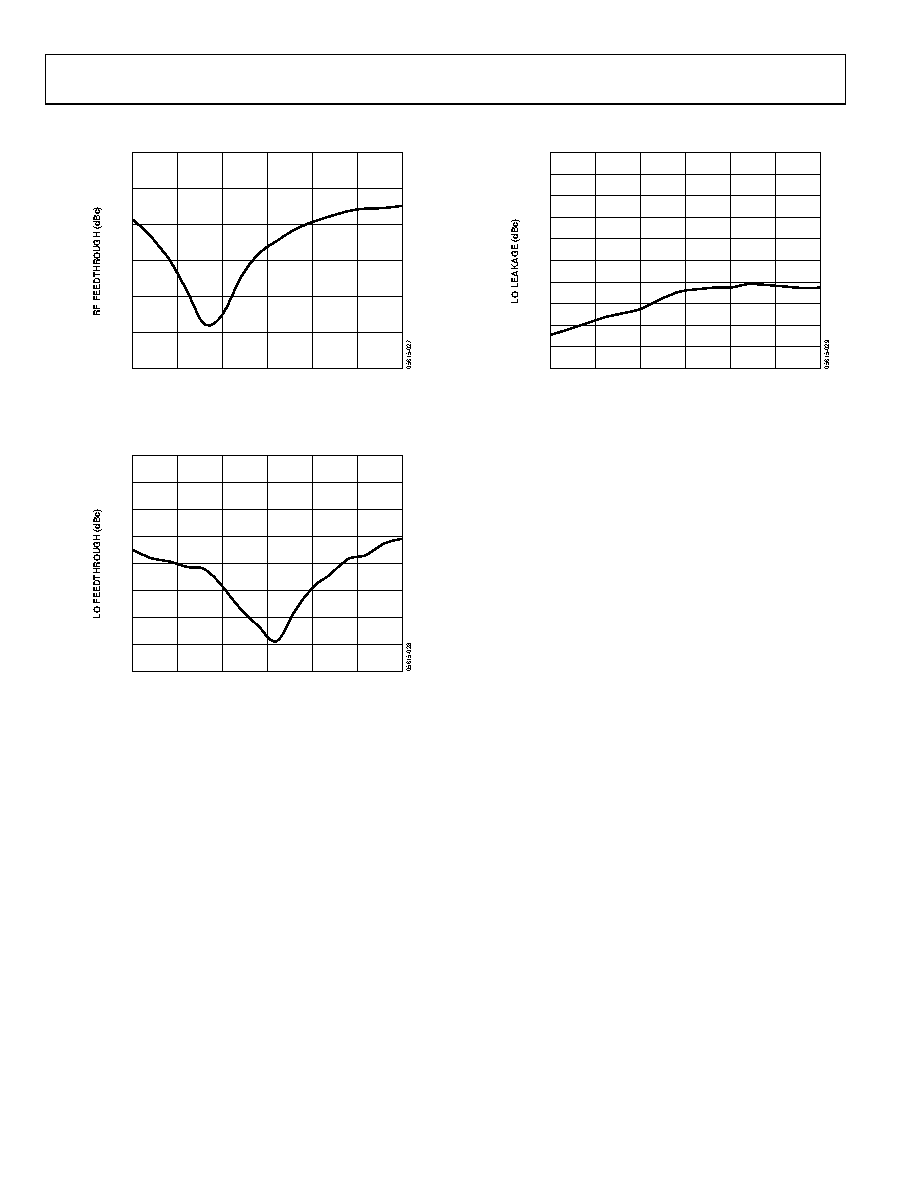

820 MHz CHARACTERISTICS
0
–5
–10
–15
–20
–25
–30
700
750
800
850
900
950
1000
RF FREQUENCY (MHz)
Figure 27. RF to IF Feedthrough vs. RF Frequency
0
–5
–10
–15
–20
–25
–40
–30
–35
630
680
730
780
830
880
930
LO FREQUENCY (MHz)
Figure 28. LO to IF Feedthrough vs. LO Frequency
0
–2
–6
–4
–8
–10
–12
–14
–20
–16
–18
630
680
730
780
830
880
930
LO FREQUENCY (MHz)
Figure 29. LO to RF Leakage vs. LO Frequency
