ADL5350
Preliminary Technical Data
Rev. PrC | Page 10 of 24
820 MHz CHARACTERISTICS
22
15
16
17
18
19
20
21
750
800
850
900
950
RF FREQUENCY (MHz)
–40°C
+25°C
+85°C

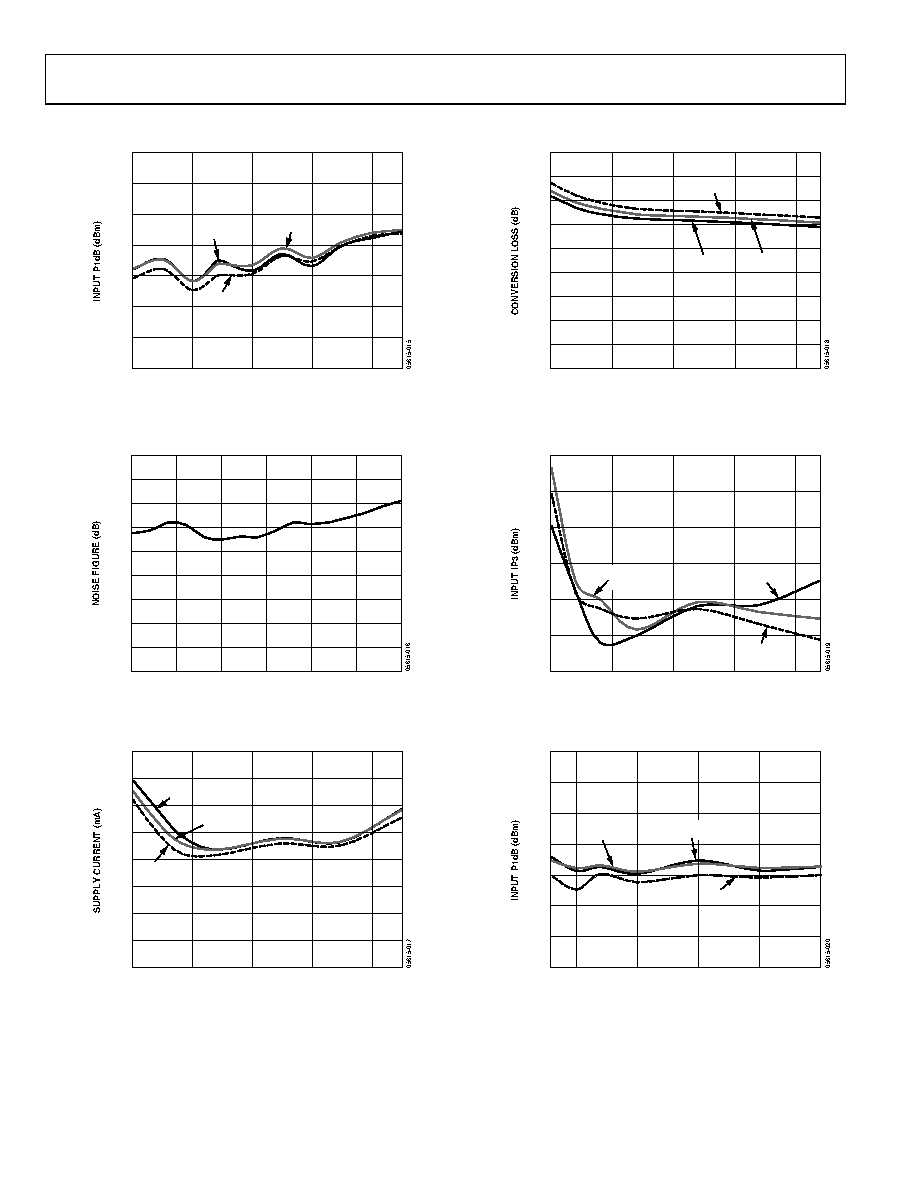

Figure 15. Input Compression vs. RF Frequency
9
8
7
6
5
4
3
2
1
0
700
750
800
850
900
950
1000
RF FREQUENCY (MHz)
Figure 16. Noise Figure vs. RF Frequency
16
14
12
10
8
6
4
2
0
30
80
130
180
230
IF FREQUENCY (MHz)
+85°C
–40°C
+25°C
Figure 17. Current vs. IF Frequency
9
8
6
7
4
5
3
2
1
0
30
80
130
180
230
IF FREQUENCY (MHz)
+85°C
–40°C
+25°C
Figure 18. Conversion Loss vs. IF Frequency
32
31
29
30
28
27
26
30
80
130
180
230
IF FREQUENCY (MHz)
+85°C
–40°C
+25°C
Figure 19. IIP3 vs. IF Frequency
22
21
20
19
18
17
16
15
30
50
150
100
200
250
IF FREQUENCY (MHz)
+85°C
+25°C
–40°C
Figure 20. Input Compression vs. IF Frequency
