Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage with Flexible Termination System (HV FT-CAP), C0G Dielectric, 500 – 10,000 VDC (Commercial Grade)

Tape & Reel Packaging Information

KEMET offers multilayer ceramic chip capacitors packaged in 8, 12 and 16 mm tape on 7" and 13" reels in accordance with

EIA Standard 481. This packaging system is compatible with all tape-fed automatic pick and place systems. See Table 2 for

details on reeling quantities for commercial chips.

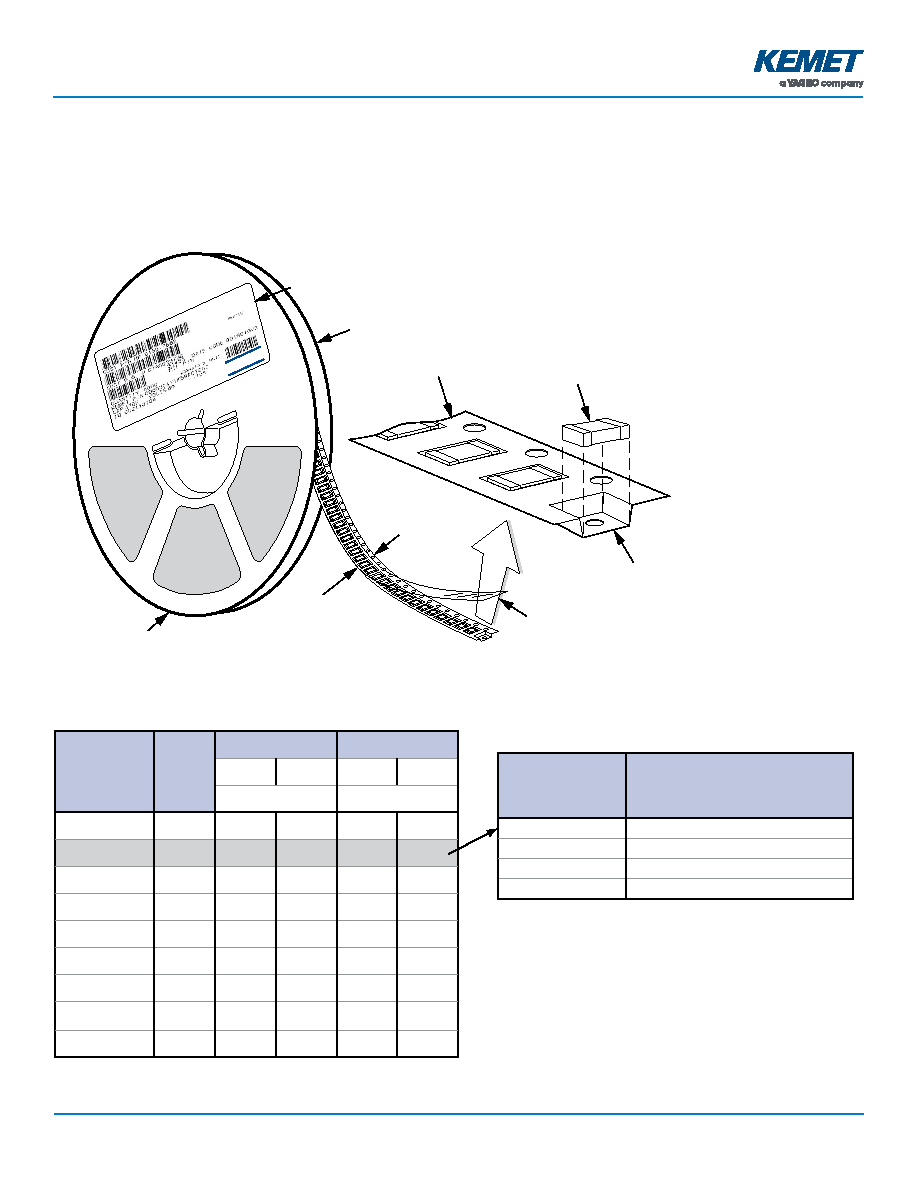

8 mm, 12 mm

or 16 mm carrier tape

180 mm (7.00")

or

330 mm (13.00")

Anti-static reel

Embossed plastic* or

punched paper carrier.

Embossment or punched cavity

Anti-static cover tape

(0.10 mm (0.004") maximum thickness)

Chip and KPS orientation in pocket

(except 1825 commercial, and 1825 and 2225 Military)

*EIA 01005, 0201, 0402 and 0603 case sizes available on punched paper carrier only.

KEMET

®

Bar code label

Sprocket holes

Table 5 – Carrier Tape Configuration, Embossed Plastic & Punched Paper (mm)

EIA Case Size

Tape

Size

(W)*

Embossed Plastic Punched Paper

7" Reel

13" Reel

7" Reel

13" Reel

Pitch (P

1)*

Pitch (P

1)*

01005 – 0402

8

2

2

0603

8

2/4

2/4

0805

8

4

4

4

4

1206 – 1210

8

4

4

4

4

1805 – 1808

12

4

4

≥ 1812

12

8

8

KPS 1210

12

8

8

KPS 1812

and 2220

16

12

12

Array 0612

8

4

4

*Refer to Figures 1 and 2 for W and P

1 carrier tape reference locations.

*Refer to Tables 6 and 7 for tolerance specifications.

New 2 mm Pitch Reel Options*

Packaging

Ordering Code

(C-Spec)

Packaging Type/Options

C-3190

Automotive grade 7" reel unmarked

C-3191

Automotive grade 13" reel unmarked

C-7081

Commercial grade 7" reel unmarked

C-7082

Commercial grade 13" reel unmarked

* 2 mm pitch reel only available for 0603 EIA case size.

2 mm pitch reel for 0805 EIA case size under development.

Benefits of Changing from 4 mm to 2 mm Pitching Spacing

• Lower placement costs.

• Double the parts on each reel results in fewer reel

changes and increased effi ciency.

• Fewer reels result in lower packaging, shipping and

storage costs, reducing waste.
