AC Timing Specifications
99
03
QMU SRAM (Internal
Mode) Timing
Specifications
The QMU SRAM (Internal Mode) timing specifications are shown in Figure 26 and
described in Table 57.

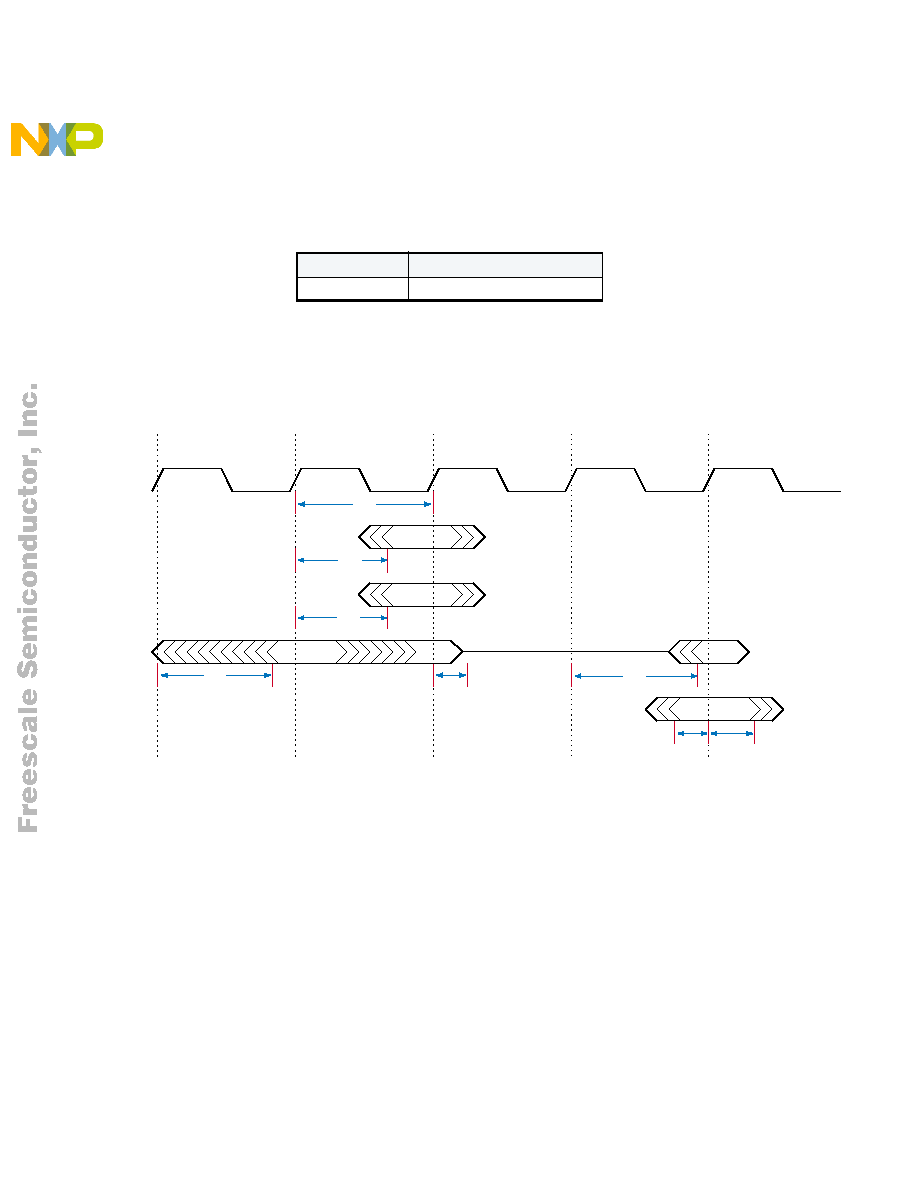

Figure 26 QMU SRAM (Internal Mode) Timing Diagram
Data (TDn)
TD0 - TD63, TPAR0-3
Table 56 Signal Groups in TLU Timing Diagrams
SIGNAL GROUP
INCLUDED SIGNALS
QACLKI
Cycle 1
Cycle 2
Cycle 3
Cycle 4
Cycle 5
Q_ctl
QAn
QDn
(output)
QDn
(input)
Tqc
Tqdo
Tqco
Tqao
Tqdv
Tqds
Tqdz
Tqdh
Freescale Semiconductor, Inc.
For More Information On This Product,
Go to: www.freescale.com
