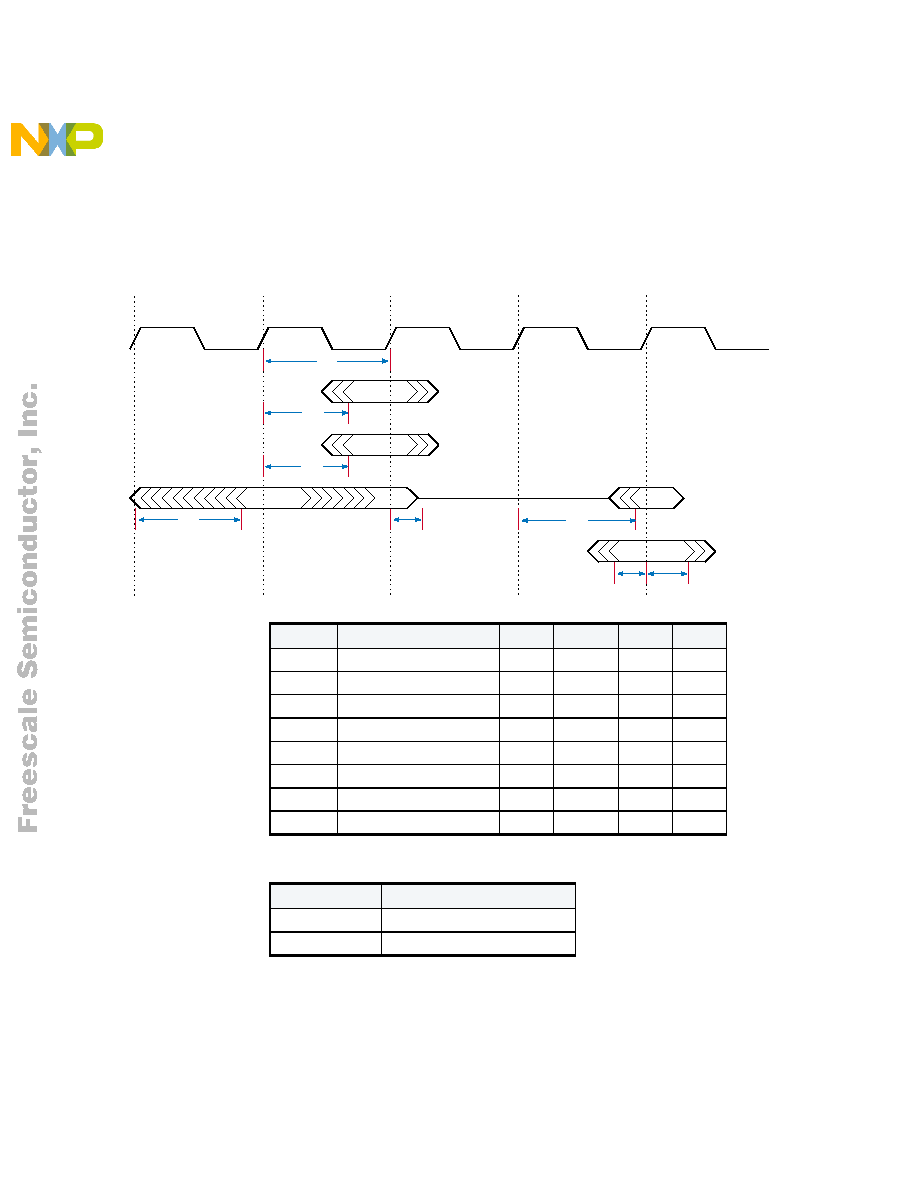

98 / 114 page  98 CHAPTER 3: ELECTRICAL SPECIFICATIONS C TLU Timing Specifications The TLU timing specifications are shown in Figure 25 and described in Table 55. Figure 25 TLU Timing Diagram TCLKI Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 T_ctl TAn TDn (output) TDn (input) Ttc Ttdo Ttco Ttao Ttdv Ttds Ttdz Ttdh Table 55 TLU Timing Description SYMBOL PARAMETER MIN TYP MAX UNIT Ttc TLU Cycle Time 7.5 ns Ttco TLU Ctrl Output 0.8 3.4 ns Ttao TLU Addr Output 0.8 3.4 ns Ttds TLU Data Setup 1.0 ns Ttdh TLU Data Hold 1.2 ns Ttdo TLU Data Output 0.8 3.7 ns Ttdz TLU Data Clk to Tri* * Not fully tested, values based on design/characterization. 0.8 3.7 ns Ttdv TLU Data Clk to Driven* 0.8 3.7 ns Table 56 Signal Groups in TLU Timing Diagrams SIGNAL GROUP INCLUDED SIGNALS Control (T_ctl) TCE0X - TCE3X, TWE0X - TWE3X Address (TAn) TA0 - TA21 Freescale Semiconductor, Inc. For More Information On This Product, Go to: www.freescale.com |
|
