Detailed signal description

Power fail detect H

Open-collector signal reference to SEC Ground. A current limited 10K - 1.4W

resistor is connected to the collector of the output transistor for this signal.

The PFD H signal will be asserted, i.e. the transistor will open, when the input

voltage goes below 170VAC.

Power good L

Open-collector signal reference to SEC Ground. A current limiting 10K -

1.4W resistor is connected to the collector of the output transistor for this

signal.

The power good signal goes high, i.e. the transistor will open, when the

output voltage is out of specification or if the input power factor correction

stage is not functioning.

Inhibit H +, -

This is a differential signal that is connected to an internal opto-coupler.

When the differential voltage applied between these two signals exceeds

3.5V, the output voltage is disabled. When the signals are less than 0.9V, the

output shall be enabled. The current drain is less than 6mA with the

differential voltage less than 3.5V.

Unit present L

This pin is tied to SEC GND and can be used to detect the presence of the

unit in a system.

Current monitor

This is an analog output proportional to the output current and is referenced

to output -. The signal consists of a voltage source connected through a 10K

- 1.4W - 1% resistor to this pin and delivers a signal whose value is 0.1 x

Iout. The signal is within the specified accuracy of

current is greater than 6.0A.

OUTPUT PIN CONNECTIONS

PIN NUMBER

FUNCTION

PIN NUMBER

FUNCTION

Pins B2, B25

Output -

Pin B13

Unit Present L

Pins B5, B28

Chassis Ground

Pin B14

Inhibit H +

Pins B8, B31

Output +

Pin C14

Inhibit H -

Pin B10

Power Good H

Pin B20

Current Monitor

Pin B12

PFD L

Pins C11, C13

SEC Ground

Mating connector

DIN M style

6 power pins

42 signal pins

Input

IEC320

OUTPUT

OUTPUT CURRENT

TOTAL

MODEL NUMBER

VOLTAGE

REGULATION

-57.8V

27A max.

±5.0%

DPF1500-4617

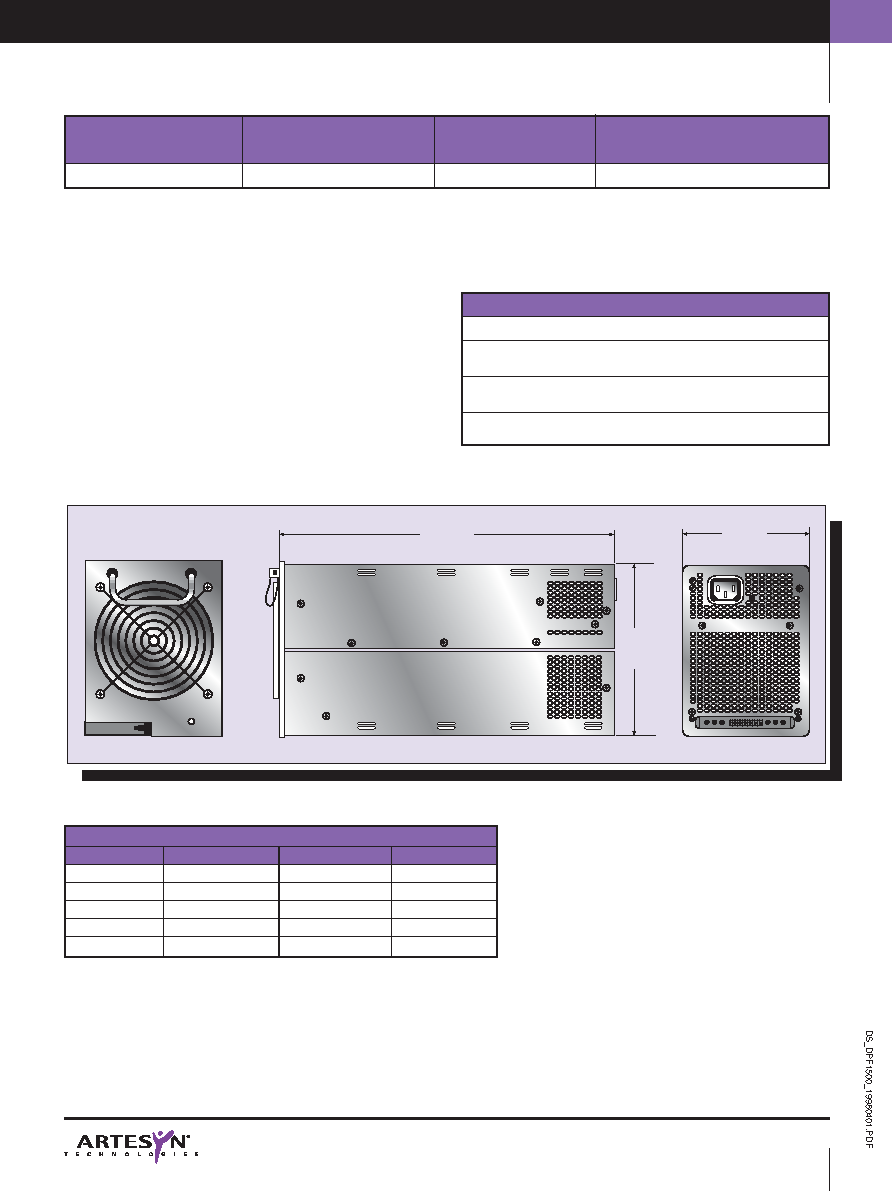

ALL DIMENSIONS IN INCHES (mm)

12.60

(320.04)

6.5

(165.1)

4.90

(124.46)

1500 Watt

AC/DC PFC front-end for distributed power architectures

DISTRIBUTED POWER FRONT END AC/DC POWER SUPPLIES

|

1500W AC/DC

PAGE 2

http://www.artesyn.com

STATUS AND CONTROL SIGNALS

Fan fail H

Asserted in event of a failure

Power good L

Asserted when the output voltage

is within specification

Inhibit H and Return

Inhibits the output when the

differential voltage applied is >3.5V

Current monitor

Value = (0.1 x Iout) V

tolerance: ±10%

Data Sheet © Artesyn Technologies® 2000
