International Safety Standard Approvals

VDE0805/EN60950/IEC950

UL1950 File No. E136005

CSA C22.2 No. 950 File No. LR41062C

TÜV

OUTPUT SPECIFICATIONS

Voltage set point

-57.8V ±0.1%

Total regulation

Main output

±5.0%

FL to NL

Rise time

At turn-on

1.0s, max.

Transient response

Main output

12% max. dev.,

50% to 100%

1ms recovery

step at 1A/µs

to 1.0%

Ripple and noise

Main output

1.0V pk-pk

0Hz to 20MHz

Overvoltage protection

latching

60V to 71V

Output power limit

1550W

Short circuit protection

Non-latching

Auto-recovery, 5A rms

max short circuit current

Current sharing

2V droop from 20%

to 100% rated load

Capacitive load

24µF max.

INPUT SPECIFICATIONS

Input voltage range

176 to 264VAC

Input frequency range

47Hz to 63Hz

Input surge current

220VAC, cold start

40A max.

Input surge

300VAC

20ms

Safety ground

230VAC, 50Hz

0.4mA

leakage current

Input current

176VAC, 1500W

13A rms max.

Input fuse

Non-replaceable

15A

Power factor

220VAC

0.96 min.

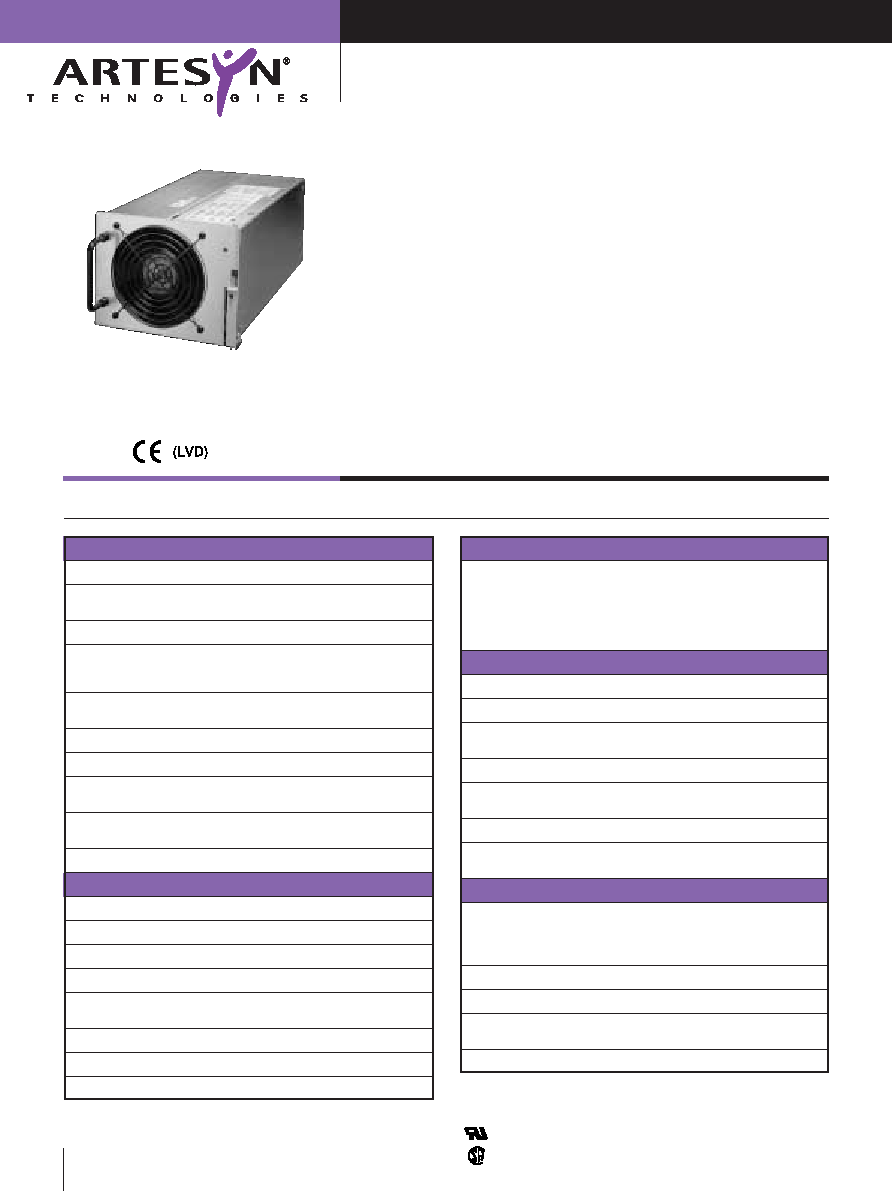

DPF1500 SERIES

Single output

[ 2 YEAR WARRANTY ]

• Efficiency >90%

• 1500W front end

• EN61000-3-2 compliant

• 12.6 x 6.5 x 4.9 inch size

• Hot pluggable

• N+1 redundancy

• Full set of status signals

• EN55022, EN55011 conducted emissions level A

• UL, TÜV and CSA safety approvals

The DPF1500 is a 1500W universal input AC/DC front end power supply in a fully

enclosed hot pluggable case with built-in fan, handle, IEC input connector, on/off

switch and DIN output signal connector. Providing a single 57.8V output at full load

with a full set of status signals. The DPF1500 is designed for use as a front end in

medium power communication applications adopting distributed power architecture.

The DPF1500 provides 1500W of output power and is fully compliant with EN61000-

3-2. Standard features include current sharing and full protection against overvoltage,

overload and short circuit. Remote or local system monitoring is possible via a full set

of status signals that include fan fail, DC good, power fail, remote inhibit and current

monitoring. The DPF1500, with full international safety approval and the CE mark,

meets conducted emissions EN55022 level A. The DPF1500 can be used in

conjunction with our complete range of 3 to 200W DC/DC converters to fully configure

a distributed power system.

PAGE 1

EMC CHARACTERISTICS

Radiated noise

EN55022/11, FCC part 15

Level A

Conducted noise

EN55022/11, FCC part 15

Level A

Harmonic current emm. EN61000-3-2

Compliant

Electrical fast

EN61000-4-4

Level 3

transients/bursts

Surge susceptibility

EN61000-4-5

Level 3

GENERAL SPECIFICATIONS

Hold-up time

240VAC, 60Hz FL

10ms @ 1500W

Efficiency

90% typ.

Isolation voltage

Input/output

3000VAC

Input/chassis

1500VAC

Switching frequency

50kHz

Approvals and

EN60950, UL1950,

standards

CSA C22.2 No. 950

Weight

6.9kg (15Ibs)

MTBF

500,000 hours

demonstrated

ENVIRONMENTAL SPECIFICATIONS

Thermal performance

Operating ambient, FL

0°C to +50°C

Non-operating

-40°C to +85°C

50°C to 70°C ambient,

Derate to

convection cooled

50% load

Cooling

Built-in fan

Relative humidity

Non-condensing

5% to 85% RH

Altitude

Operating

10,000 feet max.

Non-operating

40,000 feet max.

Vibration

5Hz to 500Hz

2.4G rms peak
