RISC Computing Platforms

Features

ƒ

Rockchip ARM Cortex-A17 RK3288 Quad Core 1.6GHz

ƒ

Onboard 2GB DDR3L memory and 8GB eMMC

ƒ

HDMI 3840x2160 at 60Hz, VGA 1920x1200 at 60Hz, Dual Channel 18/24/30

bit LVDS

ƒ

Support 4K H.264/H.265 Video decoder

ƒ

6 UART, 6 USB2.0, 1 GbE, 8 GPIO, 1 SPI

ƒ

M.2 for WIFI/BT support, mini-PCIe for 3G/4G support

ƒ

Support Linux and Android

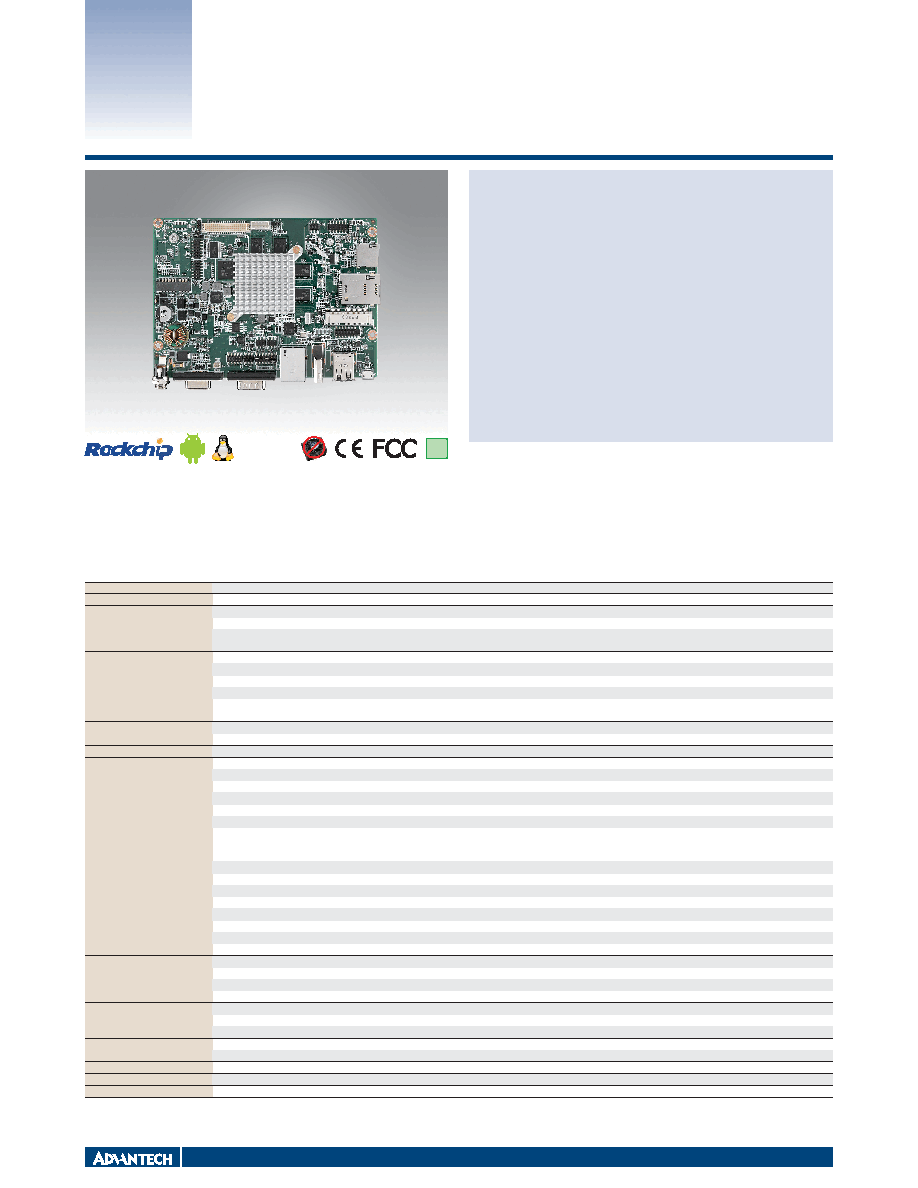

RSB-4680

Rockchip ARM Cortex-A17 RK3288 3.5" SBC

Introduction

RSB-4680 is a RISC 3.5" single board computer (SBC) powered by a high-performance Rockchip ARM Cortex-A17 RK3288 processor which supports 4K display from HDMI.

It offers rich interfaces such as 6 USB2.0, 6 UART, 1 VGA, 1 LVDS, 1 GbE and 8 GPIO. RSB-4680 also features Mini-PCIe, M.2, and SIM card slots for integrating Wi-Fi, Bluetooth,

and 3G/4G modules. It is an ideal solution for Kiosk, POS, and Vending machine application.

Specifications

Form Factor

3.5" SBC

Processor

CPU

Rockchip ARM Cortex-A17 RK3288 Quad Core up to 1.6GHz

Memory

Technology

DDR3L 1333MHz

Capacity

On-board DDR3L 2GB

Flash

8GB of eMMC NAND Flash for OS and Advantech's boot loader

4MB of SPI NOR Flash

Graphics

LVDS

1 x 18/24/30-bit LVDS with 1920 x 1080 for dual channels at 60Hz

HDMI

1 HDMI, up to 3840 x 2160 at 60 Hz

VGA

1 VGA, up to 1920 x 1200 at 60Hz

Graphics Engine

OpenGL ES 1.1/2.0/3.0, OpenCL 1.1, DirectX 11

H/W Video Codec

Decoder: MPEG-1, MPEG-2, MPEG-4, H.263, H.264, AVS, VC-1, VP8, MVC, HEVC/H.265 decoder, 4k@60FPS

Encoder: H.264 (BP@level4.0, MP, HP@level4.0), MVC and VP8

Ethernet

Chipset

TI DP83867

Speed

1 x 10/100/1000 Mbps

WatchDog Timer

Yes

I/O

SATA

-

SATA Power

-

USB

1 x USB OTG, 2 x USB Type A, and 3 x USB pin headers

Audio

1 x Line out, 1 x Mic-in, 1 x Speaker out via a pin header

SPDIF

-

SDIO

-

Serial Port

1 x 4-wire RS-232/485, DB9

1 x 2-wire RS-232/Debug port, pin header selected by jumper

4 x 4-wire RS-232, pin header

SPI

1

CAN

-

GPIO

8 x GPIO via pin header (3.3V TTL level)

I2C

1

System Bus

-

Touch

-

MIPI CSI

-

Button

1 x Reset button, 1 x Power button via a pin header

Expansion

Mini PCIe

1 x Mini PCIe slot

SD Socket

1 x Micro SD slot

SIM Slot

1 x SIM slot

M.2 Socket

1 x M.2 2230 Key E slot

Power

Power Supply Voltage

12 V

Power Type

DC-in

Power Consumption

-

Environment

Operating Temperature

0 ~ 60 °C/-20 ~ 85 °C

Operating Humidity

5 ~ 95% relative humidity, non-condensing

Mechanical

Dimensions (W x D)

146 x 102 mm

Operation System

Linux and Android

Certifications

CE/FCC Class B

RoHS

COMPLIANT

2002/95/EC
