Data Sheet
ADL8106
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 13 of 26

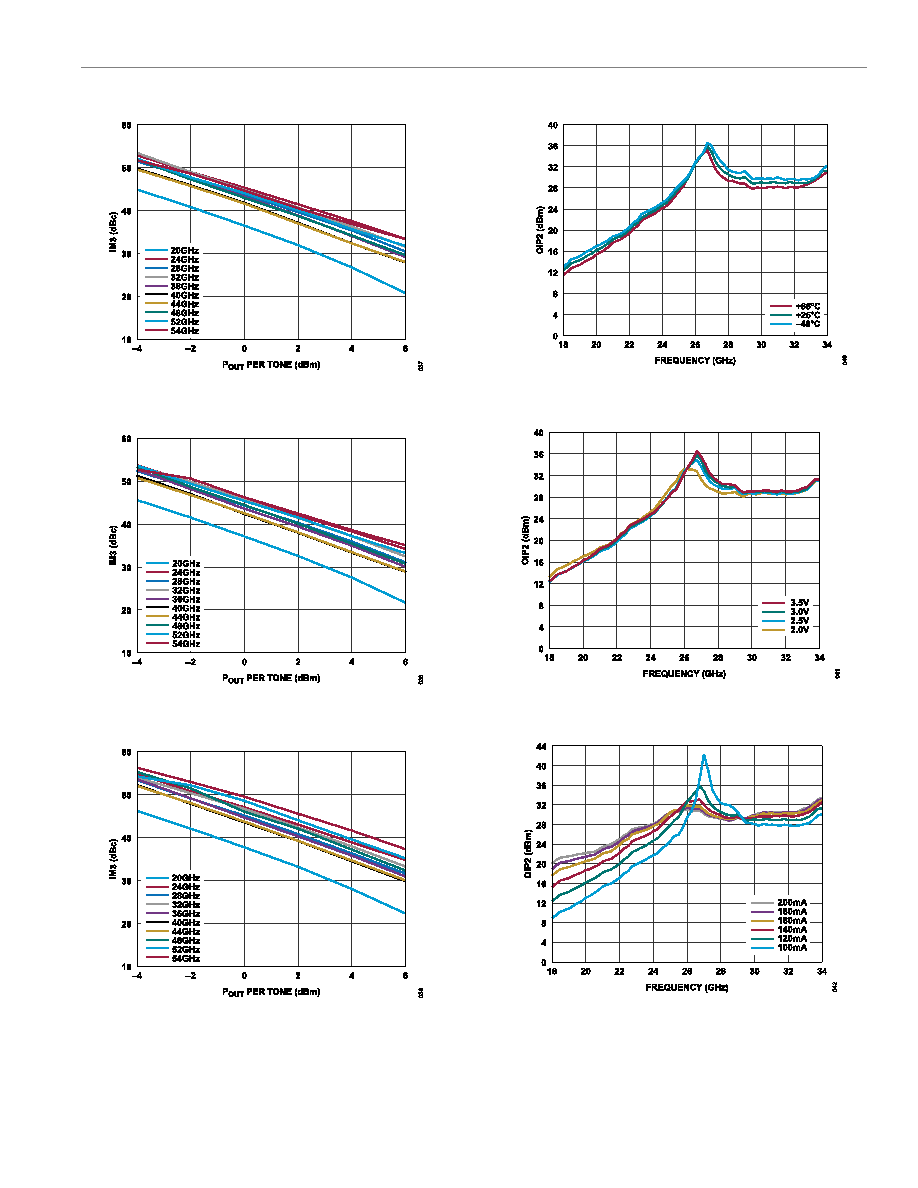

Figure 37. IM3 vs. POUT per Tone for Various Frequencies, VDD = 2.5 V,
IDQ = 120 mA
Figure 38. IM3 vs. POUT per Tone for Various Frequencies, VDD = 3 V,
IDQ = 120 mA
Figure 39. IM3 vs. POUT per Tone for Various Frequencies, VDD = 3.5 V,
IDQ = 120 mA
Figure 40. OIP2 vs. Frequency for Various Temperature,
POUT per Tone = 0 dBm, VDD = 3 V, IDQ = 120 mA
Figure 41. OIP2 vs. Frequency for Various VDD Values,
POUT per Tone = 0 dBm, IDQ = 120 mA
Figure 42. OIP2 vs. Frequency for Various IDQ Values, POUT per Tone = 0 dBm,
VDD = 3 V
