EM62100
65 COM/132 SEG STN LCD Driver
Product Specification (V1.1) 09.13.2005
•••• 41
(This specification is subject to change without further notice)

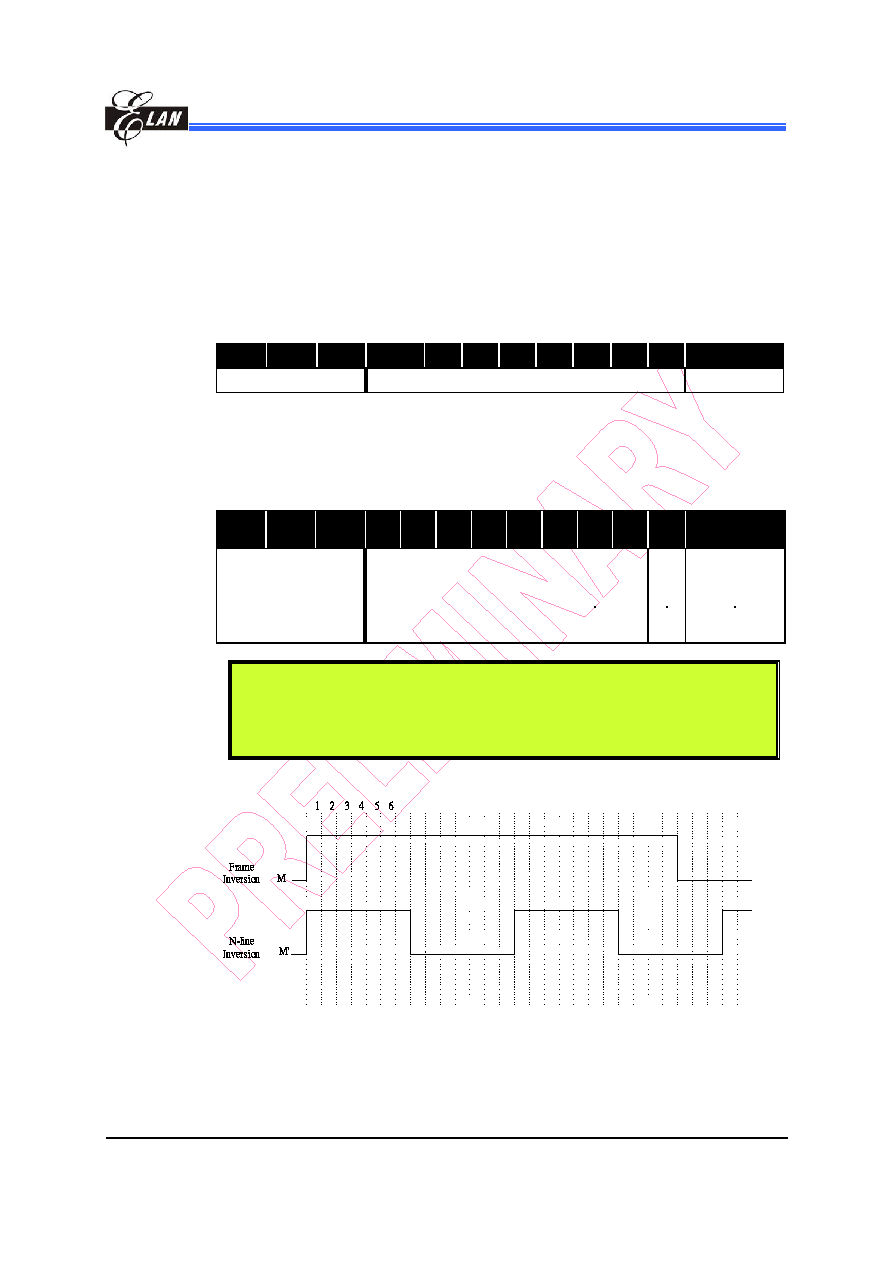

7.2.27 N-line Inversion (Double Byte Command)
This command allows adjustments on the number of scan lines for liquid crystal display
inversion. It is a two-byte command used in pair and the Number of Line Set command
must be issued after the N-Line Inversion Set command.
7.2.27.1 N-Line Inversion Set
When this command is input, no other command except for the Number of Line Set
command can be used.
RS
RDB
WRB
D7
D6
D5
D4
D3
D2
D1
D0
Hex
0
1
0
1
0
0
0
0
1
0
1
85H
7.2.27.2 Number of Line Set
This command is used to set five bits of data to the N-Line inversion register. Once the
Number of Line Set command has been issued to set data into the register, then the
N-Line inversion will affect the LCD display.
RS
RDB
WRB
D7
D6
D5
D4
D3
D2
D1
D0 Hex
Line
Inversion
0
1
0
*
*
*
0
0
0
0
0
00H
1 line
0
0
0
0
1
01H
2 lines
1
1
1
1
1
1FH
32 lines
NOTE
The number of inversed scan line = register setting value + 1.
When Partial Duty = 1/9 or 1/17, the N-line inversion function is released and
the LCD display scan line is back to frame inversion status.
