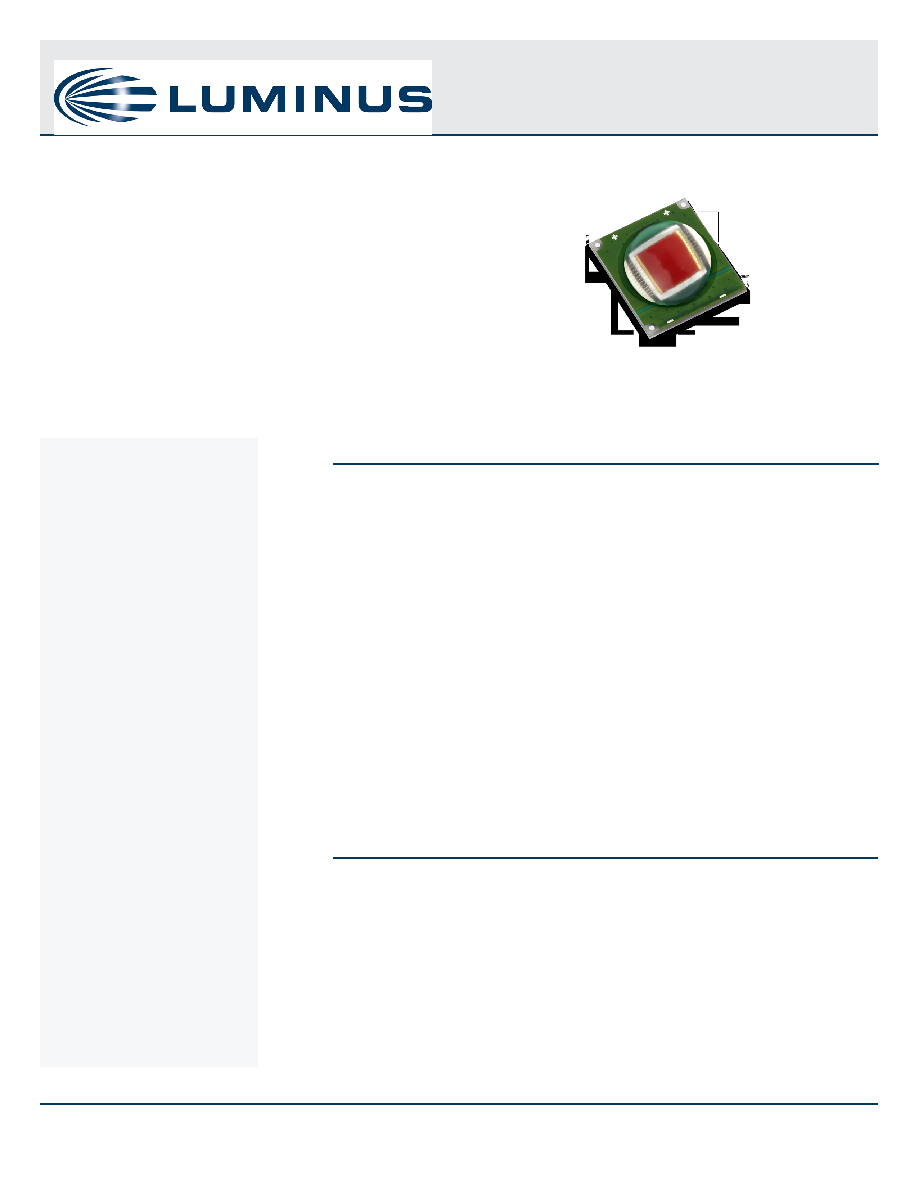

SSR-90-R-R11-HJ datasheet(1/14 Pages) LUMINUS

Nome de Peças	SSR-90-R-R11-HJ

Descrição Electrónicos	Extremely high optical output Red LEDs: Typ.1500 lumens at 9A

PDF	14 Pages

Scroll/Zoom	100%

Fabricante Electrônico	LUMINUS [Luminus, Inc]

Página de início	https://www.luminus.com/

Logo

1 / 14 page

Applications

• Machine vision

• High-output strobing applications

• Beacons, obstruction lighting

• Industrial Applications

• Consumer Portable

• Medical Lighting

• Emergency Vehicle Lighting

• Displays and Signage

• High-output, directional transporta-

tion lighting

• Search Light

Features:

• Extremely high optical output Red LEDs: Typ.1500 lumens at 9A

• High thermal conductivity package - junction to case thermal resistance of only

0.5 °C/W

• Large, monolithic chip with uniform emitting area of 9 mm2

• Environmentally friendly: RoHS compliant

• Variable drive currents: less than 1 A through 18 A continuous waveform

• High reliability

• Electrically isolated thermal path

Table of Contents

Technology Overview ......2

Test Specifications .........2

Binning Structure ..........3

Part Number Nomenclature4

Product Shipping &

Labeling Information.......5

Optical & Electrical Characteris-

tics ........................6

Thermal Resistance ........9

Mechanical Dimensions .. 10

Solder Profile ............ 13

History of Changes ....... 14

1

PDS-002760 Rev 01

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

175 New Boston Street • Woburn, MA 01801

SST-90-R LEDs

SST-90-R Product Datasheet
