9 / 14 page

PDS-002760 Rev 01

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

175 New Boston Street • Woburn, MA 01801

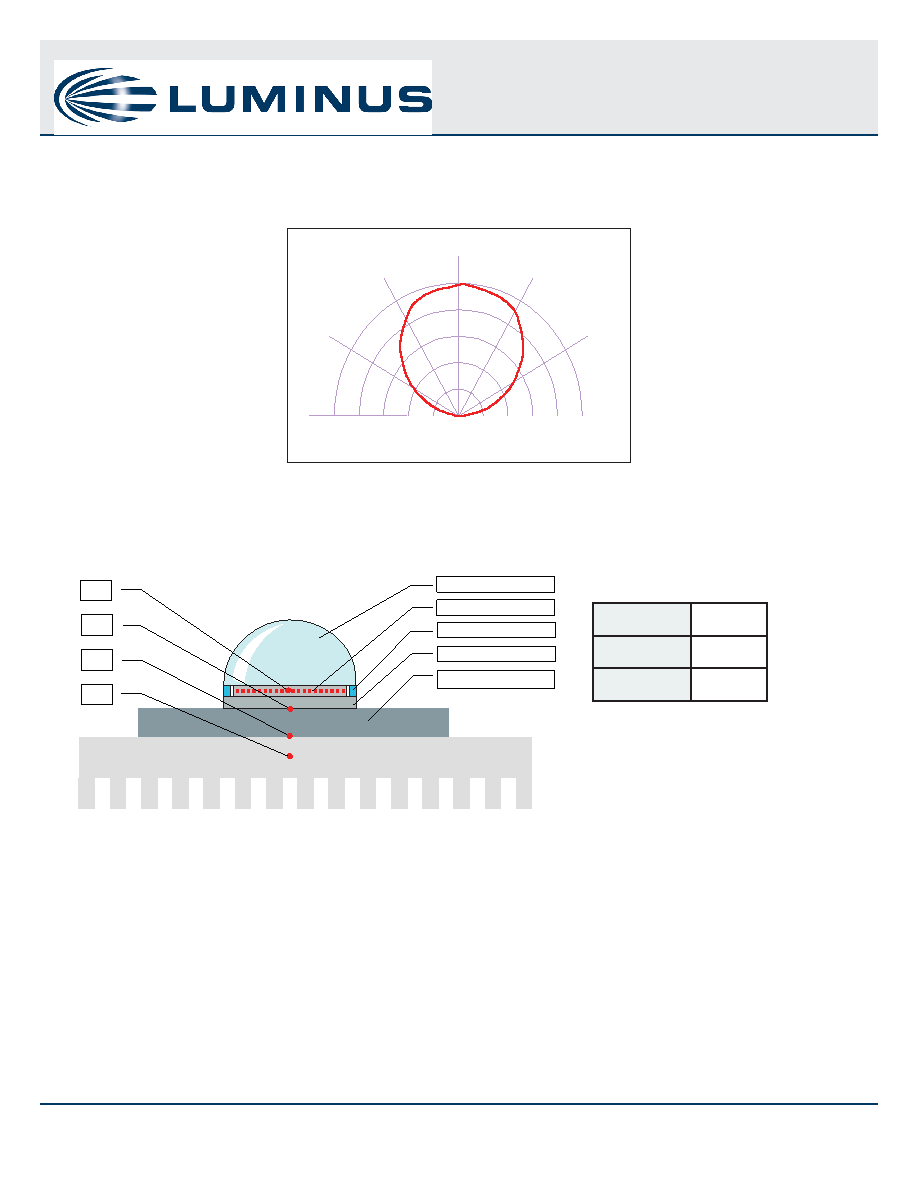

SST-90-R Product Datasheet

Thermal Resistance

TypicalThermal Resistance16,17

Note 16: Thermal resistance values are based on FEA

model results correlated to measured Rθj-hs

data.

Note 17: Thermal resistance is measured using a

SAC305 solder, a Bergquist Al-clad MCPCB,

and eGraf 1205 thermal interface material.

Ths denition = 3 mm from core-board

Ths

Die Junction

Window Frame

Ceramic Substrate

Aluminum Core Board

Heat Sink

Dome

Typical Polar Radiation Pattern for Red

30°

60°

-60°

-30°

-120%-100% -80% -60% -40% -20%

20%40%

60%80% 100% 120%

j-c

0.50 ºC/W

j-b

1.20 ºC/W

j-hs

1.40 ºC/W
