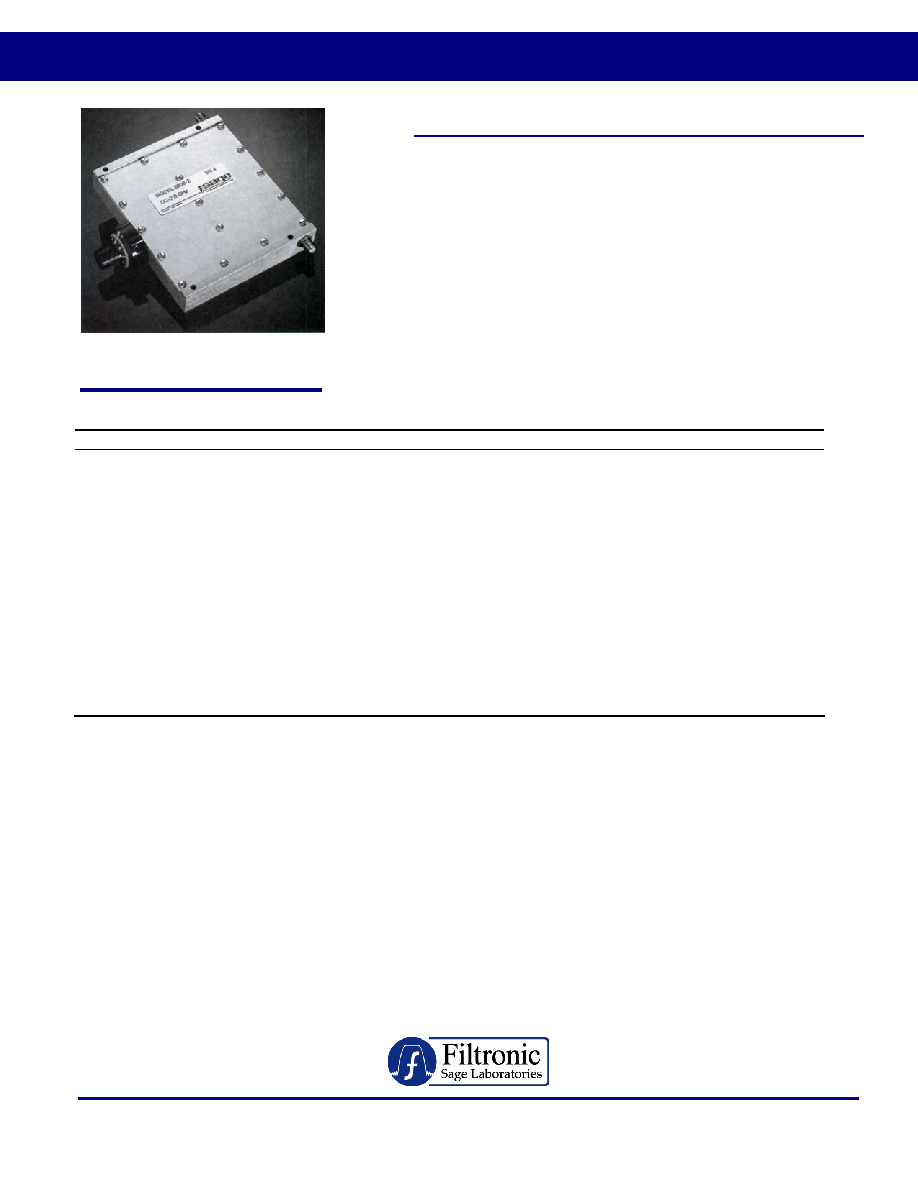

PRODUCT

PHASE SHIFTER

SPECIFICATION

DC TO 2, 4 AND 8 GHZ, COAXIAL

FEATURES

• Type SMA Connectors Standard

• Options from DC to 8Ghz

• High Performance, Troughline Style Structure

• Military Grade Materials and Processing

• -40 to + 125º C Operating Temperature Range

6706,7,8 SERIES

6806,8 SERIES

SPECIFICATIONS

Model

6706

6806

6707

6708

6808

Frequency Range (GHz)

DC-2

DC-2

DC-4

DC-8

DC-8

Phase Shift, min (

290

290

145

72

72

Phase Shift, min (

9.7

9.7

4.9

2.4

2.4

Insertion Phase Nom @ Min Phase Setting (

540

550

290

170

180

Number of Turns, min

30

30

30

30

30

VSWR max

1.35

1.35

1.60

1.60

1.60

Insertion Loss, max (dB)

0.7

0.7

0.7

0.7

0.7

Power

Average (Watts)

100

100

100

100

100

Peak (Watts)

1000

1000

1000

1000

1000

Time Delay, nom @ Min Phase Setting (nsec)

1.5

1.5

0.8

0.45

0.45

Weight

Ounces

8.3

9.3

4.8

3.1

4.3

Grams

235

263

136

88

122

NOTES:

1.

1 Degree per GHz of Phase Shift equals 2.78 picoseconds of time delay.

2.

Average and Peak Power are given at ambient temperature and altitude with Type SMA Connectors. See standard power derating curves for

Phase Shifters. Power is further limited by the power threshold level of selected connector style.
