Technical Data

4313

Effective October 2015

CMS

Common mode inductors, surface mount

www.eaton.com/elx

33333

44444

22222

11111

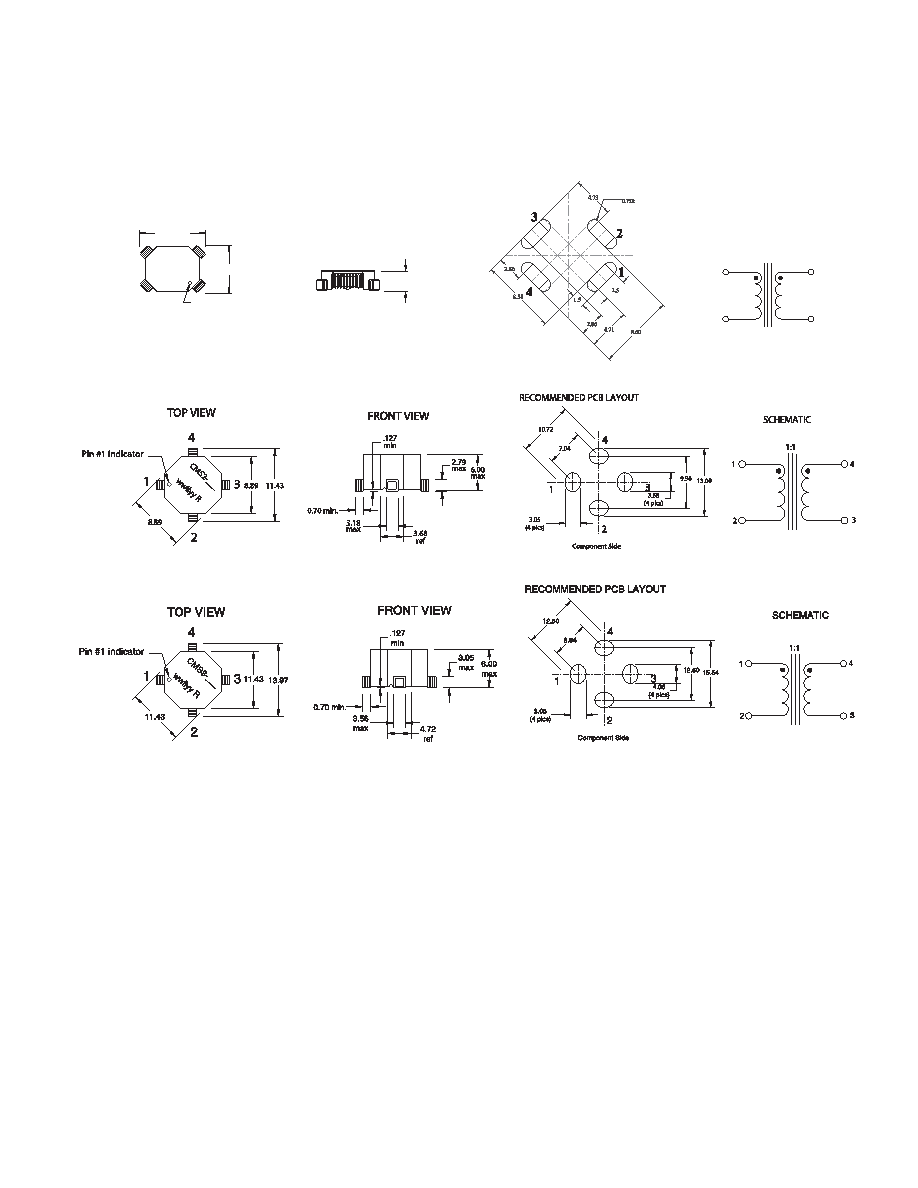

TOP VIEW

9.4 max

7.2 max

Pin 1 indicator

White dot

wwllyy R

CMS1-

FRONT VIEW

2.6 max

RECOMMENDED PCB LAYOUT

SCHEMATIC

1:1

wwllyy = Date code R = Revision level

Dimensions–mm

CMS1

CMS2

CMS3
