Data Sheet
SSM3515
Rev. A| Page 7 of 41
tSIS
tSIH
tSIS
tSIH
tLIH
tBP
tBIH
BCLK
FSYNC
SDATA
LEFT-JUSTIFIED
MODE
SDATA
I2C-JUSTIFIED
MODE
SDATA
RIGHT-JUSTIFIED
MODE
tBIL
tLIS
tSIS
tSIH
tSIS
tSIH
MSB
MSB
MSB
LSB
MSB – 1

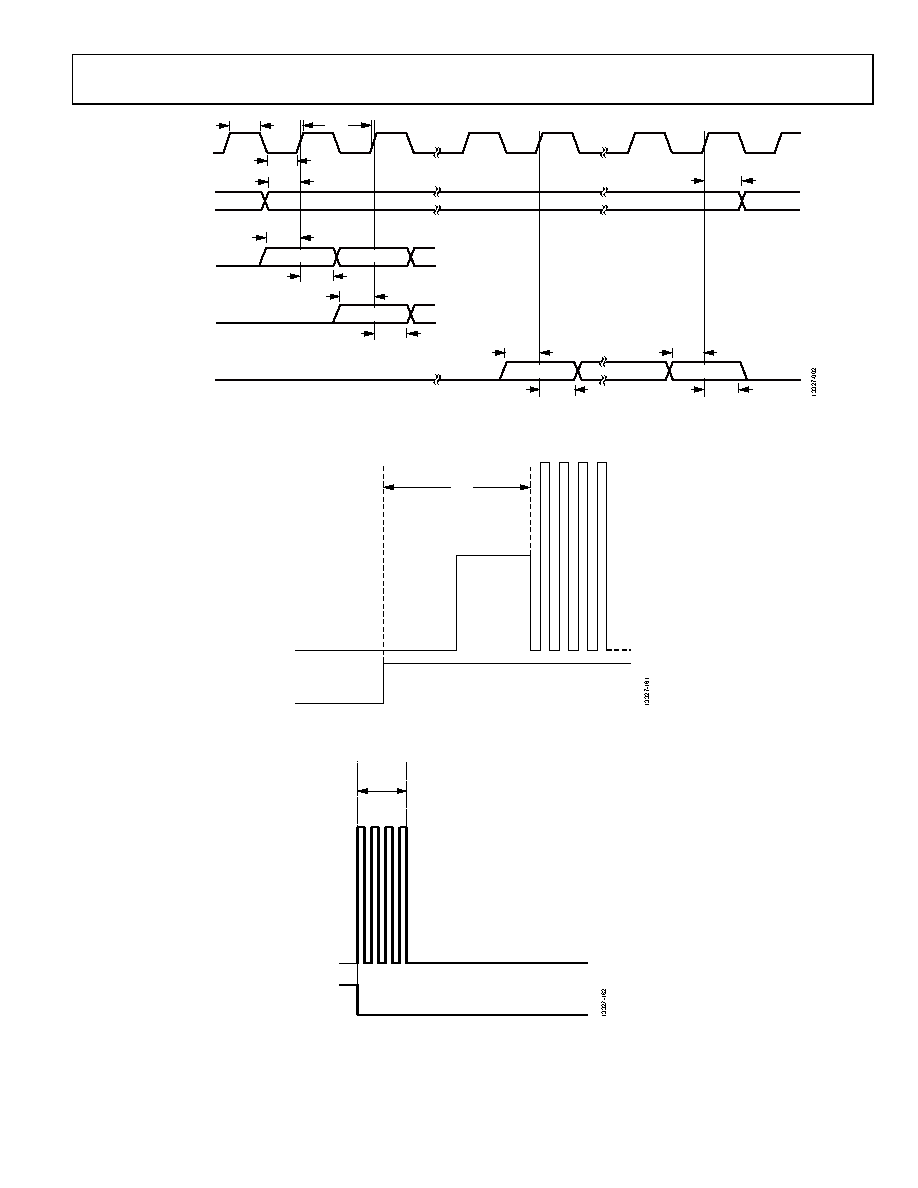

Figure 3. Serial Input Port Timing
PVDD
PVDD/2
tWU
I2C POWER-UP COMMAND
OUTPUT
0V
Figure 4. Turn On Hard Volume
tSD
I2C POWER-DOWN COMMAND
OUTPUT
PVDD
0V
Figure 5. Turn Off Hard Volume
