QPD1025L
1500 W, 65 V, 1.0
– 1.1 GHz, GaN RF Input-Matched Transistor
Datasheet Rev. B
│ Subject to change without notice
- 15 of 18 -
www.qorvo.com
1.0

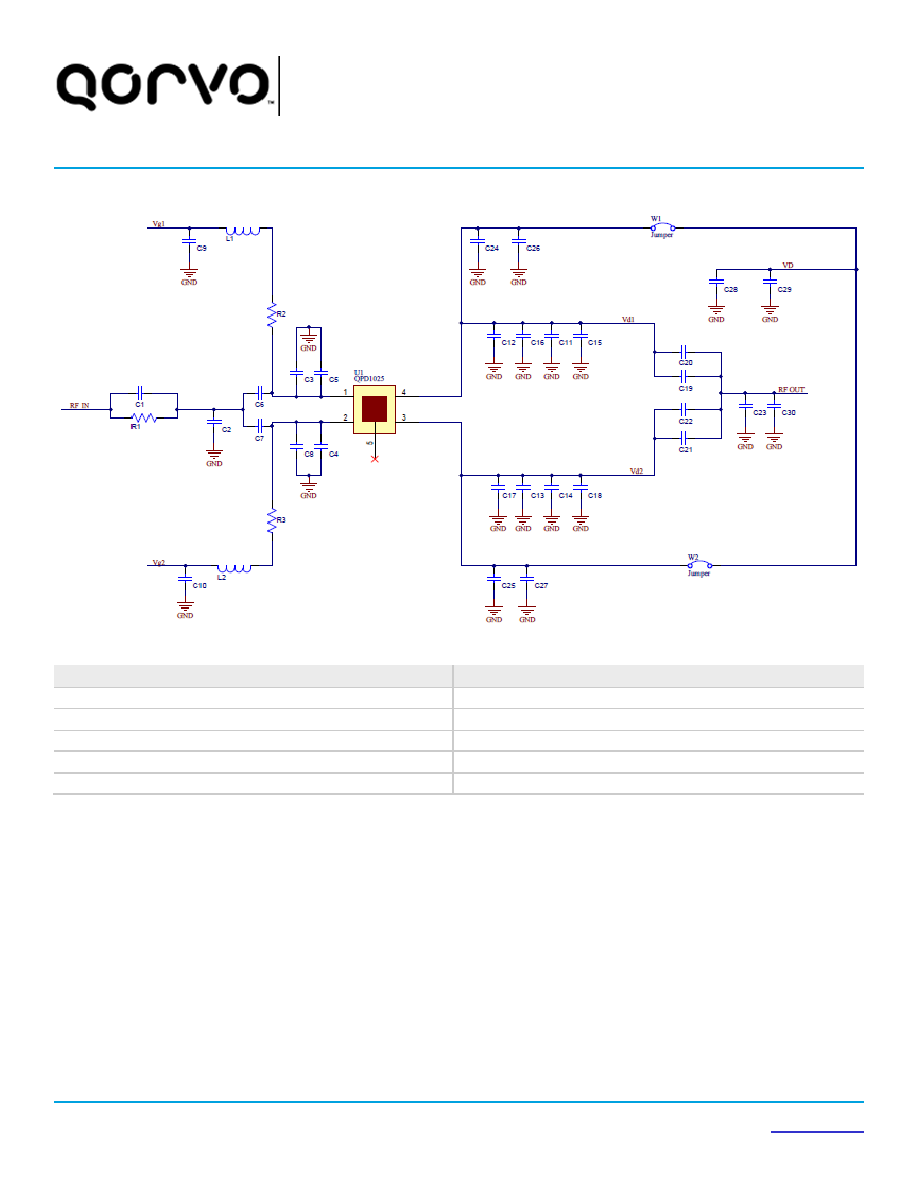

– 1.1 GHz Application Circuit - Schematic
Bias-up Procedure
Bias-down Procedure
1. Set VG to -5 V.
1. Turn off RF signal.
2. Set ID current limit to 4 A.
2. Turn off VD
3. Apply 65 V VD.
3. Wait 2 seconds to allow drain capacitor to discharge.
4. Slowly adjust VG until ID is set to 1.5 A.
4. Turn off VG
5. Apply RF.
