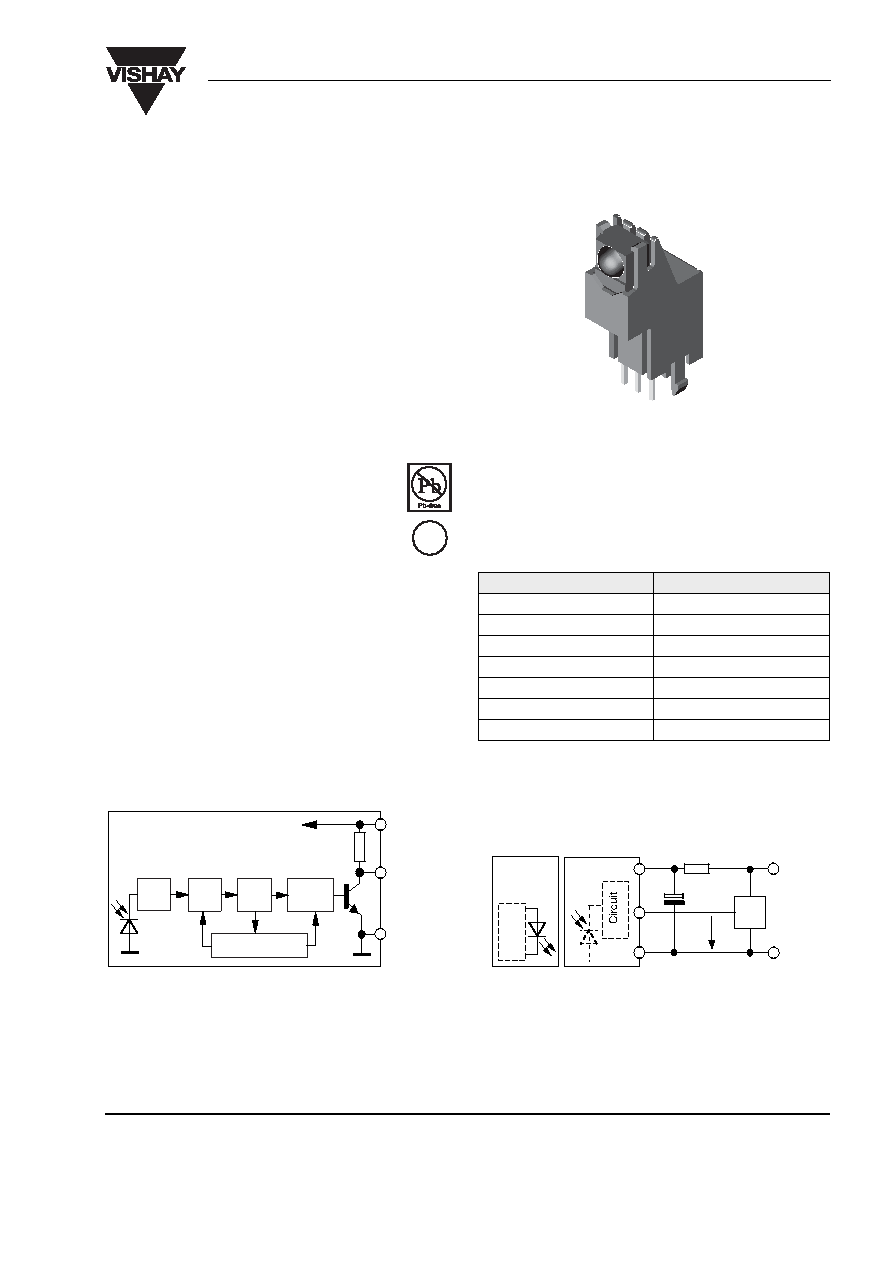

1 / 7 page  TSOP22..WE1 Document Number 82092 Rev. 1.6, 31-Jan-05 Vishay Semiconductors www.vishay.com 1 16646 IR Receiver Modules for Remote Control Systems Description The TSOP22..WE1 - series are miniaturized receiv- ers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. TSOP22..WE1 is the standard IR remote control receiver series, support- ing all major transmission codes. Features • Photo detector and preamplifier in one package • Internal filter for PCM frequency • Improved shielding against electrical field disturbance • TTL and CMOS compatibility • Output active low • Low power consumption Special Features • Improved immunity against ambient light • Suitable burst length ≥ 10 cycles/burst Parts Table Block Diagram Application Circuit Part Carrier Frequency TSOP2230WE1 30 kHz TSOP2233WE1 33 kHz TSOP2236WE1 36 kHz TSOP2237WE1 36.7 kHz TSOP2238WE1 38 kHz TSOP2240WE1 40 kHz TSOP2256WE1 56 kHz 30 k Ω 2 3 1 VS OUT Demo- GND Pass AGC Input PIN Band dulator Control Circuit 16835 C1 = 4.7 µF TSOPxxxx OUT GND µC R1 =100 Ω +VS GND Transmitter with TSALxxxx VS R1 +C1 recommended to suppress power supply disturbances. VO The output voltage should not be hold continuously at a voltage below VO = 3.3 V by the external circuit. 16842 e3 |
