K3010P, K3010PG Series

www.vishay.com

Vishay Semiconductors

Rev. 2.2, 01-Jun-12

Document Number: 83504

For technical questions, contact: optocoupleranswers@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

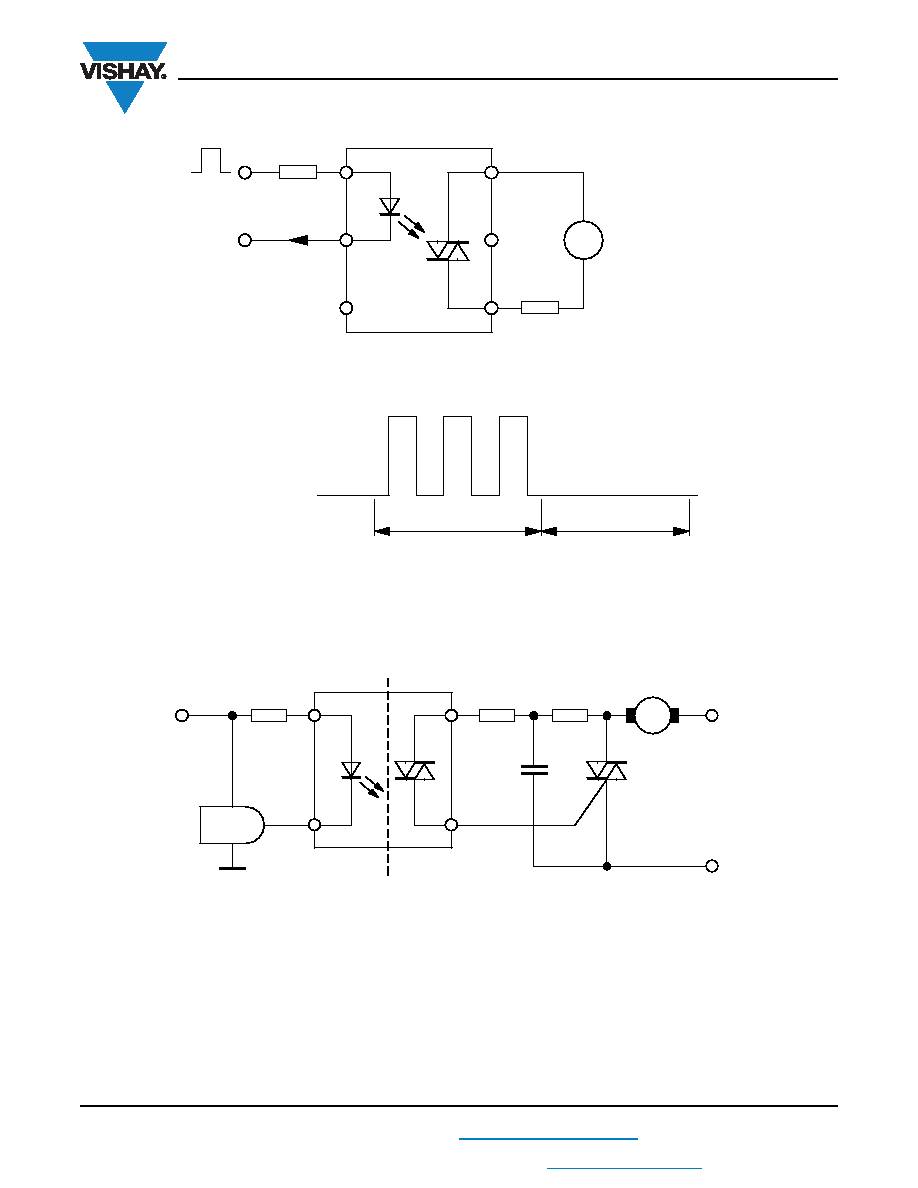

Fig. 1 - Test Circuit for dV/dtcr and dV/dtcrq

Fig. 2

Fig. 3 - Motor Control Circuit

95 10813

Test condition:

dV/dt cr

VS = 2/3 VDRM

(sine wave)

R L = 33 kΩ

dV/dt crq

Veff. = 30 V

(sine wave)

R L = 2 kΩ

IF ≥ IFT

95 10814

dV/dt cr

Highest value of the “rate of rise of off-state voltage” which does not cause any switching from the

off state to the on state

dV/dt crq

Highest value of the “rate of rise of communicating voltage” which does not switch on the device again,

after the voltage has decreased to zero and the trigger current is switched from I FT to zero

IF = 0

dV/dt cr

dV/dt crq

95 10815

270

TT L

+ 5 V

0.1 µF

VAC ~

Galvanic seperation
