LRA911CWC1 Folha de dados(PDF) 2 Page - Winson Semiconductor Corp.

Nome de Peças LRA911CWC1
Descrição Electrónicos  Linear Hall Effect Sensor IC
PDF  5 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  WINSON [Winson Semiconductor Corp.]
Página de início  http://www.winson.com.tw
Logo WINSON - Winson Semiconductor Corp.

LRA911CWC1 Folha de dados(HTML) 2 Page - Winson Semiconductor Corp.

  LRA911CWC1 Datasheet HTML 1Page - Winson Semiconductor Corp. LRA911CWC1 Datasheet HTML 2Page - Winson Semiconductor Corp. LRA911CWC1 Datasheet HTML 3Page - Winson Semiconductor Corp. LRA911CWC1 Datasheet HTML 4Page - Winson Semiconductor Corp. LRA911CWC1 Datasheet HTML 5Page - Winson Semiconductor Corp.
Zoom Inzoom in Zoom Outzoom out

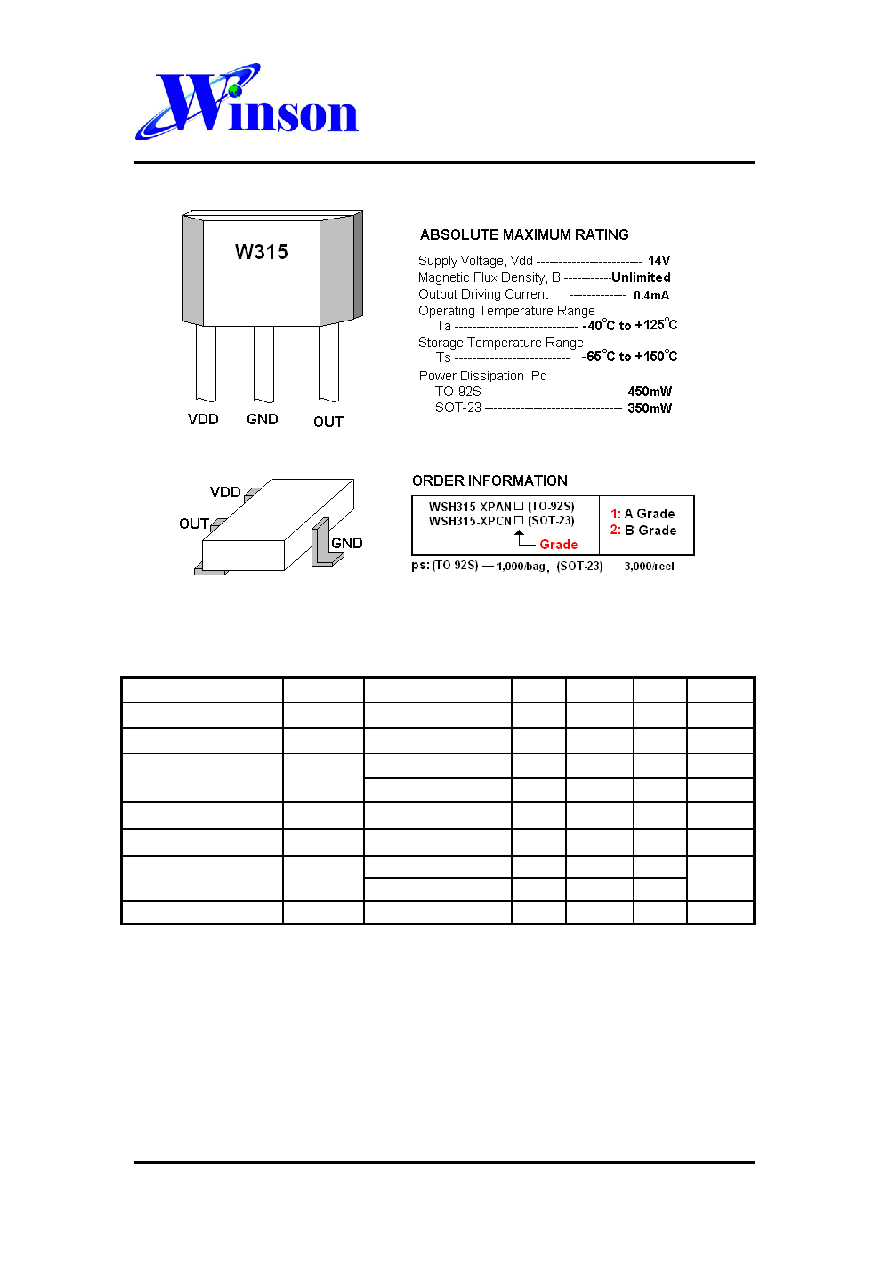

 2 / 5 page
background image
WSH315
Winson reserves the right to make changes to improve reliability or manufacturability.
©Winson, 2017/4/7
Page 2
Electrical Characteristics:
(T=+25˚C, Vdd=5.0V )
Characteristic
Symbol
Test Conditions
Min
Typ
Max
Units
Supply Voltage
Vcc
─
3.0
─
12
V
Supply Current
Isupply
B=0 Gauss
─
3.0
5.0
mA
Quiescent Vout
V0G
B=0 G (Grade A)
2.45
2.5
2.55
V
B=0 G (Grade B)
2.35
2.5
2.65
V
Sensitivity
△Vout
B= 0 to ± 500 G
1.2
1.5
1.8
mV/G
Bandwidth
BW
－
23
－
kHz
Measurable Guass
Range
MGR
Vdd=5V
－
±1500
－
Guass
Vdd=12V
－
±3000
－
Temperature Drift
△Vout
B=0 Gauss
－
±0.2
－
mV/℃
1. All output-voltage measurements are made with a voltmeter having an input impedance of at least 100kΩ
2. Do not apply any load on output pin, it will degrade IC’s performance.
