P9221-R Datasheet
© 2017 Integrated Device Technology, Inc.
5
April 4, 2017
1. Pin Assignments

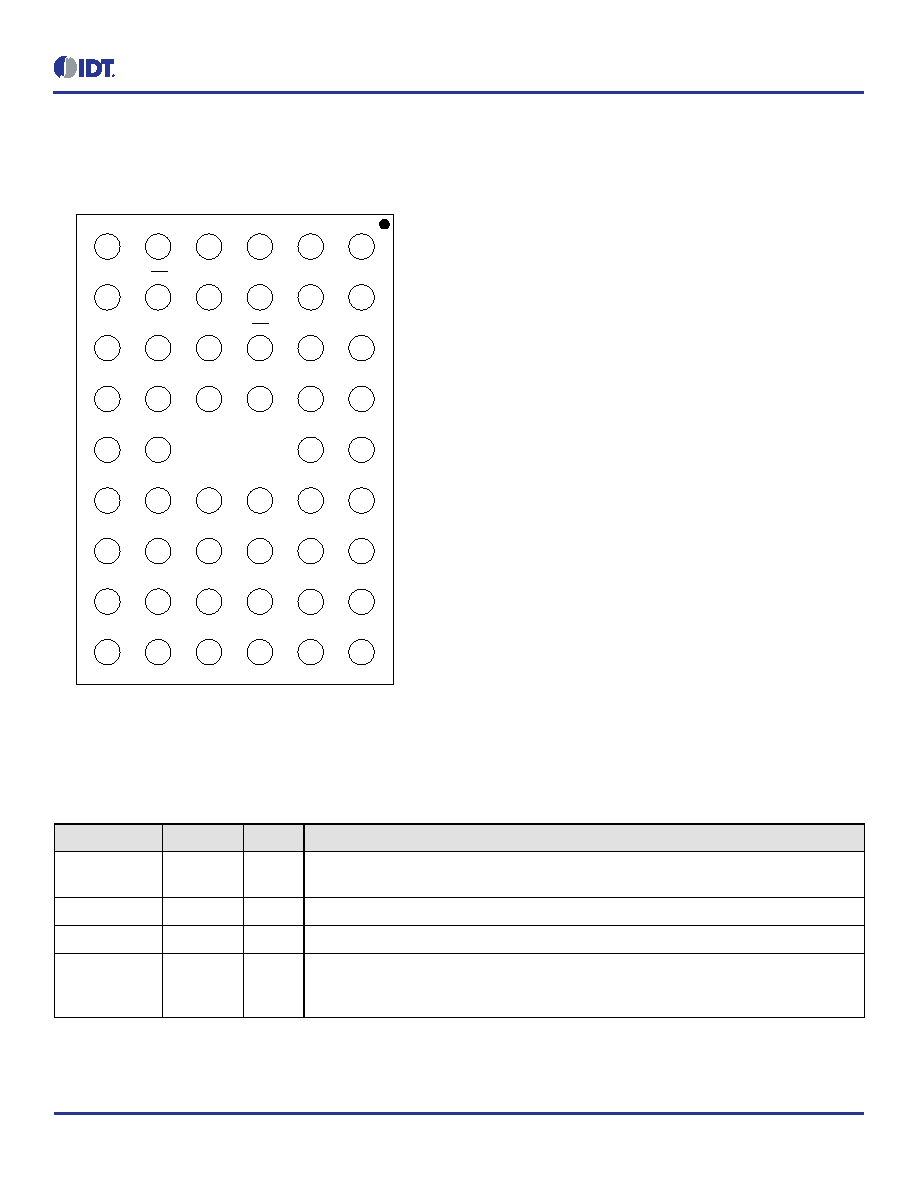

Figure 1. Pin Assignments
COMM1
RSV4
GND
OUT
ALIGNX
ALIGNY
SINK
OUT
SCL
SDA
INT
OUT
VOSET
ILIM
RPPO
OUT
RPPG
DEN
OUT
COMM2
RSV5
GND
OUT
A
B
C
D
E
F
1
2
3
4
5
6
AC1
RSV3
TS
AC2
BST2
G
BST1
AC1
RSV2
RSV1
AC2
AC2
H
AC1
GND
GND
GND
GND
GND
GND
J
Bottom View
EN
VDD18
VDD5V
VRECT
VRECT
VRECT
VRECT
VRECT
VRECT
VRECT
VRECT
2. Pin Descriptions
Table 1.
Pin Descriptions
Pins
Name
Type
Function
A1
COMM1
O
Open-drain output used to communicate with the transmitter. Connect a 47nF capacitor from
AC1 to COMM1.
A2
ALIGNX
I
AC input for coil alignment guide. If not used, connect to GND through a 10kΩ resistor.
A3
SCL
I
I2C clock pin. Open-drain output. Connect a 5.1kΩ resistor to VDD18 pin.
A4
VOSET
I
Programming pin for setting the output voltage. Connect this pin to the center tap of a resistor
divider to set the output voltage. For more information, refer to section 8.2 for different output
voltage settings.



Html Pages
