8 Packaging, Handling & Storage, RoHS

8.1 Packaging

AMS00x modules are shipped in an ESD bag.

AMS00x modules are also available in reels each containing 1000 modules. Reels are shipped in an ESD and moisture

resistant sealed bag. The shelf life of the sealed bag is 12 months at 40°C and <90% Relative Humidity (RH). Please

refer to the bag seal date.

8.2 Tape and Reel Specifications

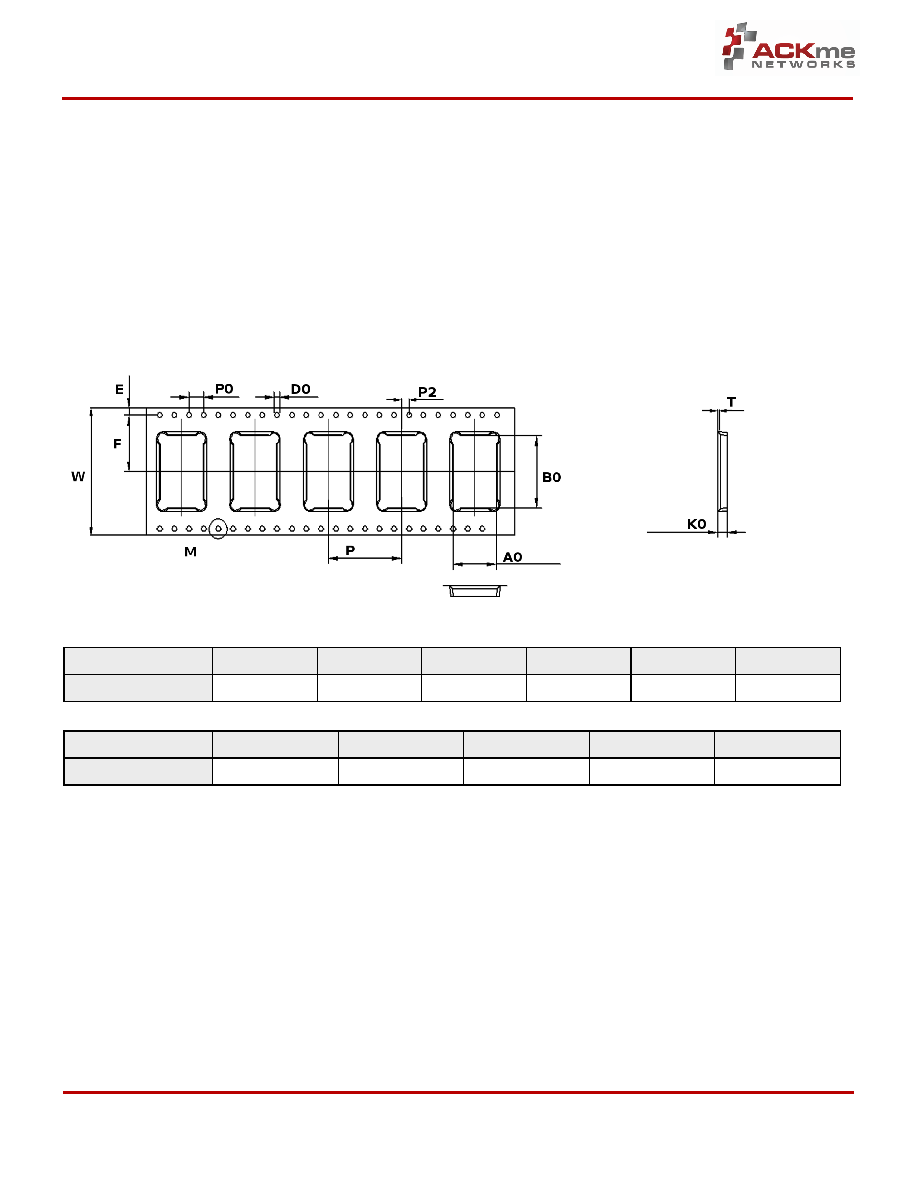

Figure 7 - Tape Specifications

Symbol

A0

B0

D0

E

F

K0

Specification (mm)

11.8 ± 0.10

18.1 ± 0.10

1.5 ± 0.10

1.75 ± 0.10

14.2 ± 0.10

2.70 ± 0.10

Symbol

P

P0

P2

T

W

Specification (mm)

20.0 ± 0.10

4.00 ± 0.10

2.00 ± 0.10

0.30 ± 0.05

32.0 ± 0.30

 Tape material : black PS material, in line with ROHS environmental management substances

 Tape thickness: 0.3 mm ± 0.05 mm

 Tape width: 32mm (1.3")

 Protection zone: black PS material

 Distance between chain hole centers within the range of ± 0.2 mm of cumulative error

 Anti-camber at 1 mm / 250 mm

 All dimensions in line with the requirements of EIA-481-D
