FT120 USB DEVICE CONTROLLER WITH PARALLEL BUS IC
Datasheet Version 1.2
Clearance No.: FTDI#
291
7 Reference Schematic

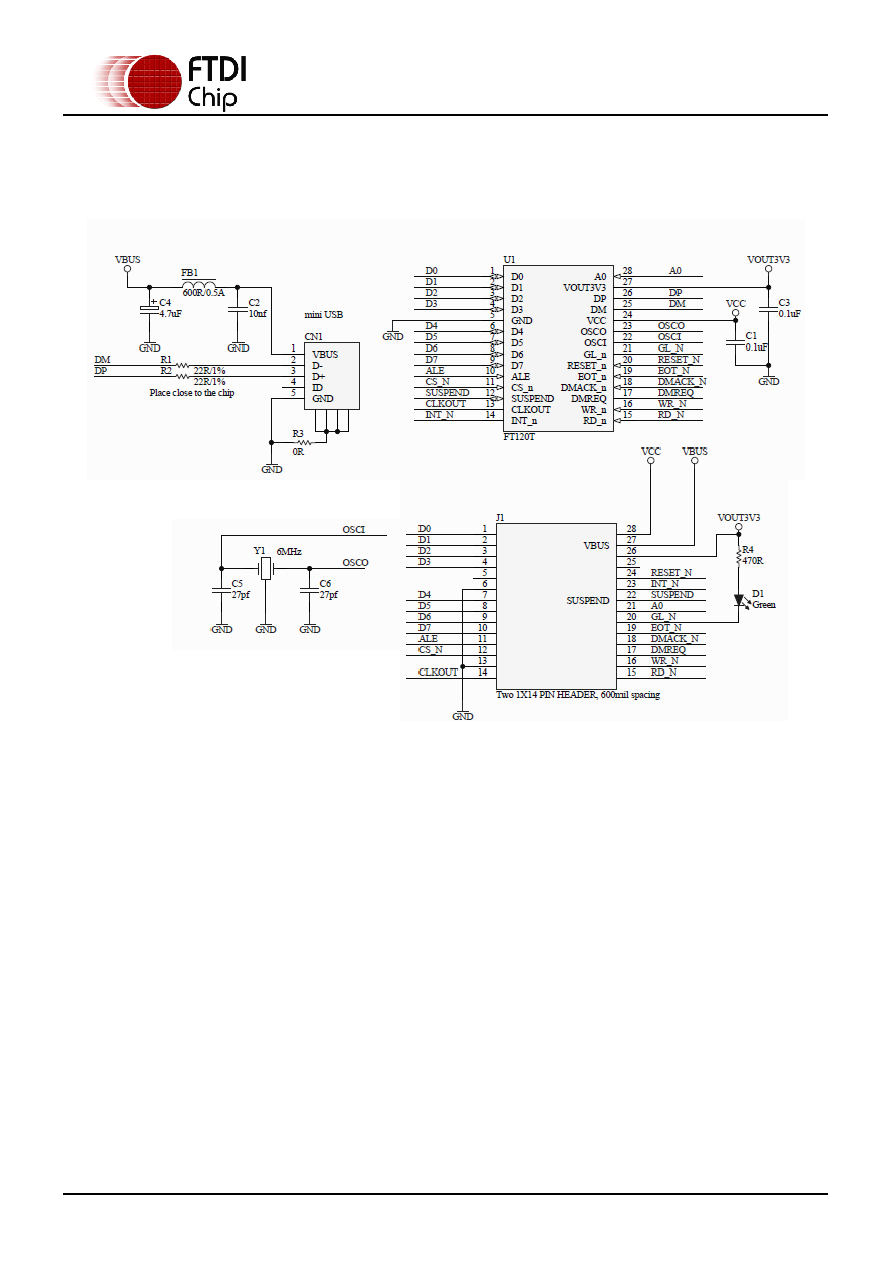

Figure 7-1 shows a reference schematic for a FT120 module which can be connected to a generic
microcontroller to add USB device function. The reference design supports both bus-powered and self-
powered applications.
Figure 7-1 FT120 Reference schematics
